6.5” Granulators Chapter 7: Appendix 33 of 35

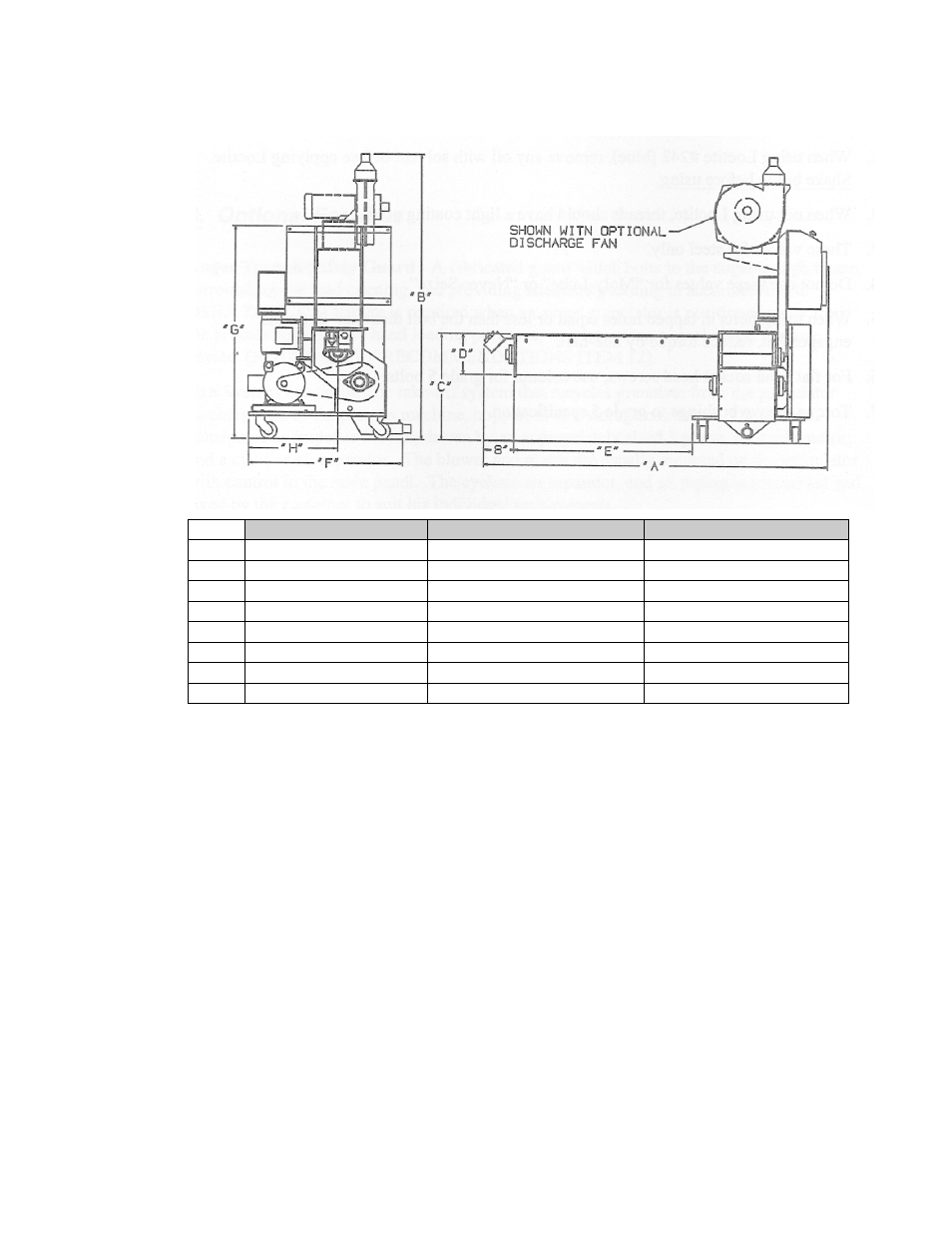

Dimensions
6 x 8 8 x 12 12 x 16
A 55” 82-1/2” 87-1/2”
B 49.25” 57” 68.5”
C 18” 25.25” 32.25”
D 8” 11” 14”
E 20-3/4” 43-1/2” 44”
F 28” 34-1/2” 48”
G 43-3/4” 51-3/4” 66”
H 19-1/2” 21-1/2” 29.5”
