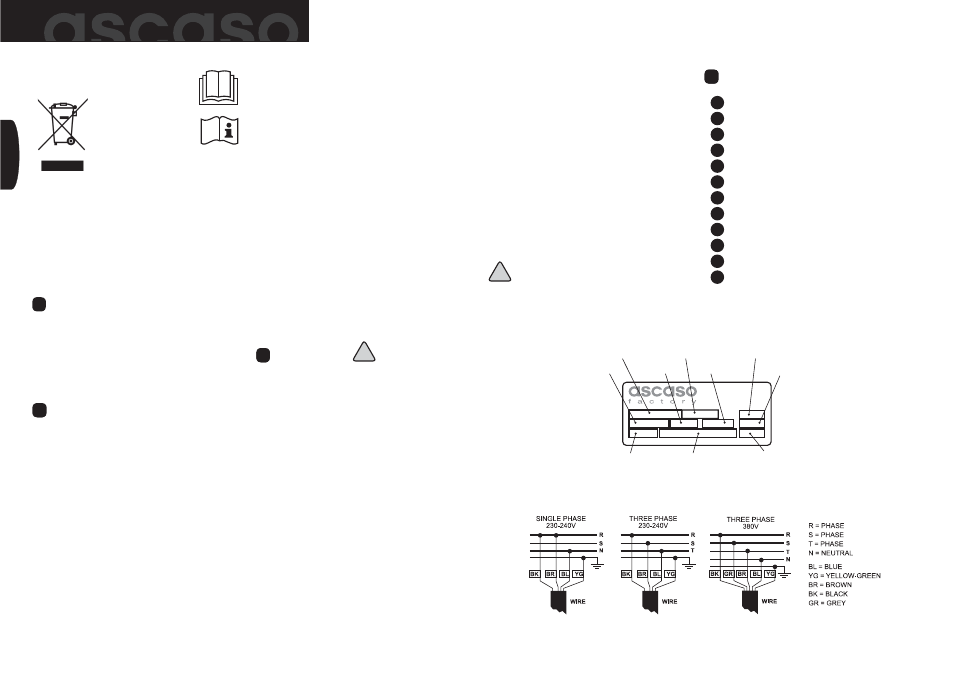

6
Recycling your machine.
Coffee machines may contain
recyclable materials.
Please contact your distributor or
your local waste collection centre.
User's manual
INTRODUCTION
Thank you for purchasing this ascaso product.
It may be used to make the best espresso coffee
and delicious cappuccinos. Your professional
coffee machine has been designed and built
using cutting-edge technological design and
engineering innovations to produce a high-quality,
safe and reliable product.
REGULATIONS
EC DECLARATION OF CONFORMITY
ASCASO FACTORY SLU
We declare under our sole responsibility that the
product: Coffee machine for professional
use, to which this Declaration refers, fulfils the
provisions of the specific Directives: 98/37/EC
(Machinery Directive); 73/23/EEC (repealed),
93/68/EEC (CE Marking—modified), 2006/95/EC
(Low Voltage Directive); 89/336/EEC (amended),
92/31/EEC (EMC Directive); 97/23/EC (Pressure
Equipment Directive), and complies with the
following standards: EN 292-1, EN 292-2, EN
60335-1, EN 60335-2-15, EN 55014, EN 61000-
3, EN 61000-4, ENV 50141, EN 55104.
EN harmonised standards
RECYCLING
Recycling your coffee machine.
Coffee machines may contain recyclable materials.
Please contact your distributor or your local waste
0
01
0. Introduction
1. Regulations
2. Safety rules
3. Component key (sketch of machines with
external components + explanation of the
“Label”)
4. Machine features (dimensions, power, etc.).
Electrical connection diagram
5. Installation
5.1 Electrical connection
5.2 Water connection
6. Start-up
6.1 Making coffee
7. Operation and programming of coffee doses
7.1 Programming the pre-infusion function
7.2 Making cappuccino, tea and infusions
8. Maintenance and cleaning
9. Possible problems/Solutions
COMPONENT KEY
1
General switch
2
Button pads
3 Boiler pressure gauge
4
Pump pressure gauge
5 Coffee dispenser groups
6 Steam control knob
7 Steam nozzle
8 Hot water control knob
9 Hot water dispenser
10 Tray
11 Cup-warmer surface
12 $djustable legs
3 3
other heavy loads on the packaging.
‡ 8se only manufacturer-approved accessories
and replacements.
‡ In the event of incorrect performance or
malfunction, switch the machine off and unplug
it. Do not attempt to repair it yourself. Call a
service technician.
‡ Improper installation may cause damage to
persons and objects for which the manufacturer
may not be considered liable.
‡ Ignoring these warnings can jeopardise the
safety of both the machine and the user.
‡ Keep this instruction manual.
USE
The machines have been designed, manufactured
and protected to be used as machines for making
espresso coffee and hot drinks (tea, cappuccino,
camomile, etc.); any other use is considered
improper and therefore dangerous.
!
The manufacturer accepts no liability for
damage to persons or objects resulting from
improper, incorrect or unreasonable use.
collection centre.
SAFETY RULES
!
‡ Check the power supply network before
connecting the machine. Do not use extension
cables, adapters or a multiple-socket plug to
connect it.
‡ Check there is an earth connection and an
efficient electrical safety device.
‡ Place the machine on a flat, stable surface,
out of reach of children or animals and away
from hot surfaces and environments with a
temperature of 5ºC or less.
‡ Never start a defective machine or one with a
damaged power cord.
‡ Do not obstruct the ventilation grid and take
special care not to cover the cup-warmer
surface with cloths or other objects.
‡ Do not carry out cleaning or maintenance while
the machine is plugged in.
‡ Do not unplug the coffee machine by pulling on
the power cord.
‡ Do not allow the machine to be operated by
children or the inexperienced.
‡ Do not handle the machine with wet feet or
hands.
‡ Do not place the machine under water.
‡ Do not leave packaging material (bags, nails,
cardboard) within children’s reach.
‡ The packaged machine should be stored in a
dry place, free of humidity. Do not place any
2 2 Model Machine code Machine number
Current rate Cicles Power Voltage
Boiler capacity Boiler pressure Manufacture date
ENGLISH
