Terrapin FTR-D6 Transceiver Operation
Installing and Using the External Battery Operation
Installing and Using the External Battery Operation
The
Terrapin FTR‐D6
can be operated using the optional external battery adaptor plate and
battery mount (see
on page 5 for ordering information). Contact Grass
on page 27) or your Solutions dealer directly for more
information.
The external power option consists of a replacement bottom plate for the
Terrapin FTR‐D6
and one of two external battery mounting units. When ordering the external battery
option, select one of the following:
• Anton-Bauer battery mounting plate (
Part ‐ TRPN‐AB‐PLATE)
• V-Mount battery mounting plate (
Part – TRPN‐V‐PLATE)
Use of the battery mounting plate requires a user-supplied battery.

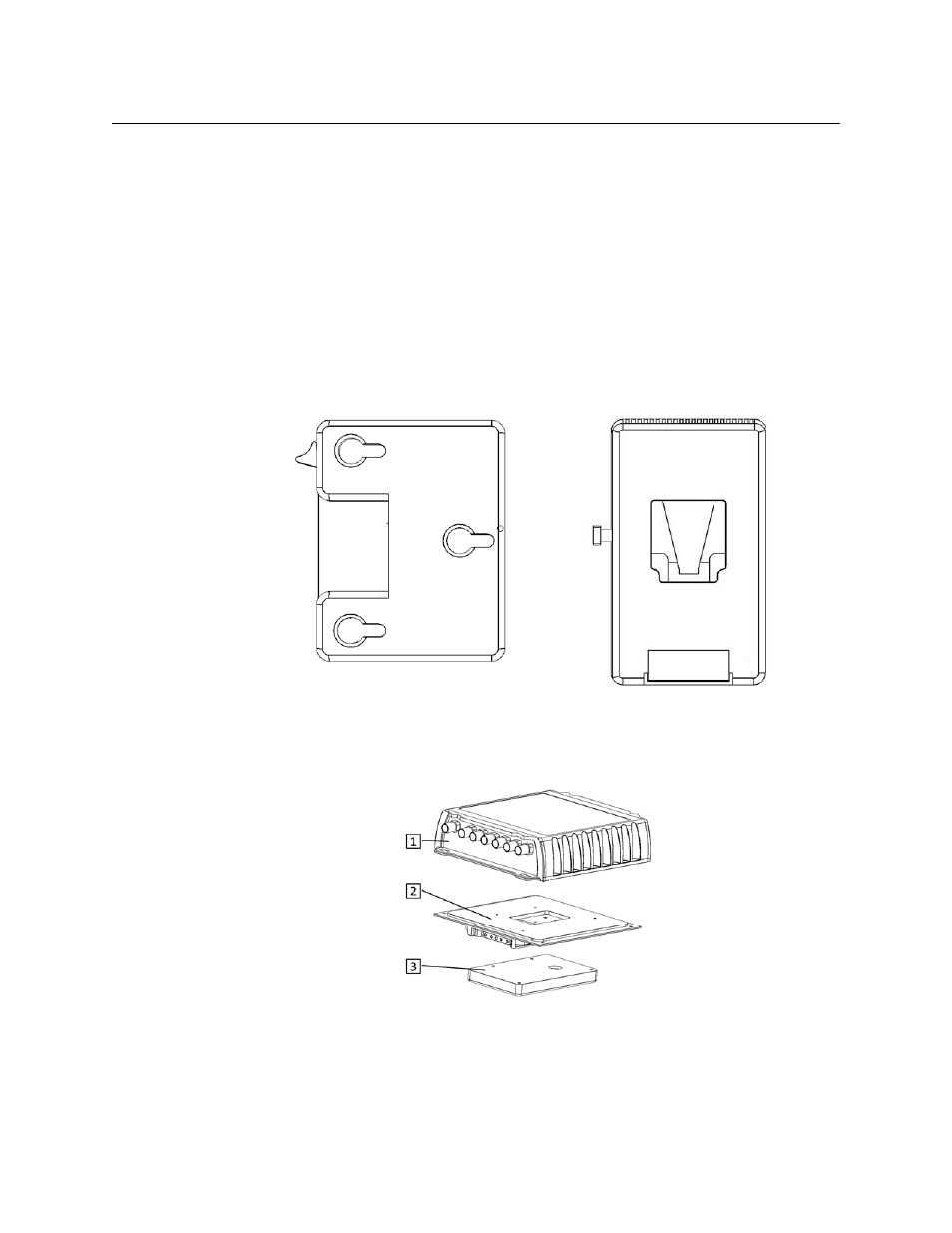

Fig. 3-2: Anton-Bauer and V-Mount Battery Mounting Plate
Fig. 3-3: External Battery Plate Components
The external battery plate is a field installable option.
Anton-Bauer battery
mounting plate
V-Mount battery
mounting plate
