BVS-1602 Rev. 2
1
1 General
The BVS-1602 is a 16x2 video router with vertical interval switching. This state of the art router provides
high performance circuits in SMD technology for maximum system performance. The BVS-1602 is
designed for all demanding routing tasks in digital studio and broadcast environments. The BVS-1602
offers the possibility to expand the router in the input direction up to 128x2. The built-in RS-232 interface
allows the user to control the router via the Triton Router Control System PC software with many
operational features. The control bus allows linking the unit to the BAS-1602 or BES-1602 audio router
thus creating a 16x2 AFV router. Several units can be combined to form RGB, VGA or other matrix
systems. One or several Triton remote control panels can control the BVS-1602 as well.
1.1 Specifications
Frequency response: 0-80MHz -3dB
Differential gain: < 0.08% (3.58/4.43MHz)
Differential phase: < 0.3° (3.58/4.43MHz)
Crosstalk: < -55dB (3.58/4.43MHz
Video S/N Ratio: > 68dB
Bar tilt: < 0.1%
Lum. non-linearity: < 0.1%
Number of inputs: 16, switchable termination
Number of outputs: 2 with 2 BNC each
Auxiliary outputs: 2 for router expansion
Impedance: 75 ohms
Return loss: > 40dB
Max signal: 2 Vp-p
Coupling: DC
DC offset: typ. 30mV
Propagation delay: 7ns ± 1ns
Connector: BNC
AC power: External power supply 100 - 260 VAC
DC power: ±5V, connector DB9 male
Dimensions: 483 x 44 x 45 mm (19”, 1RU)

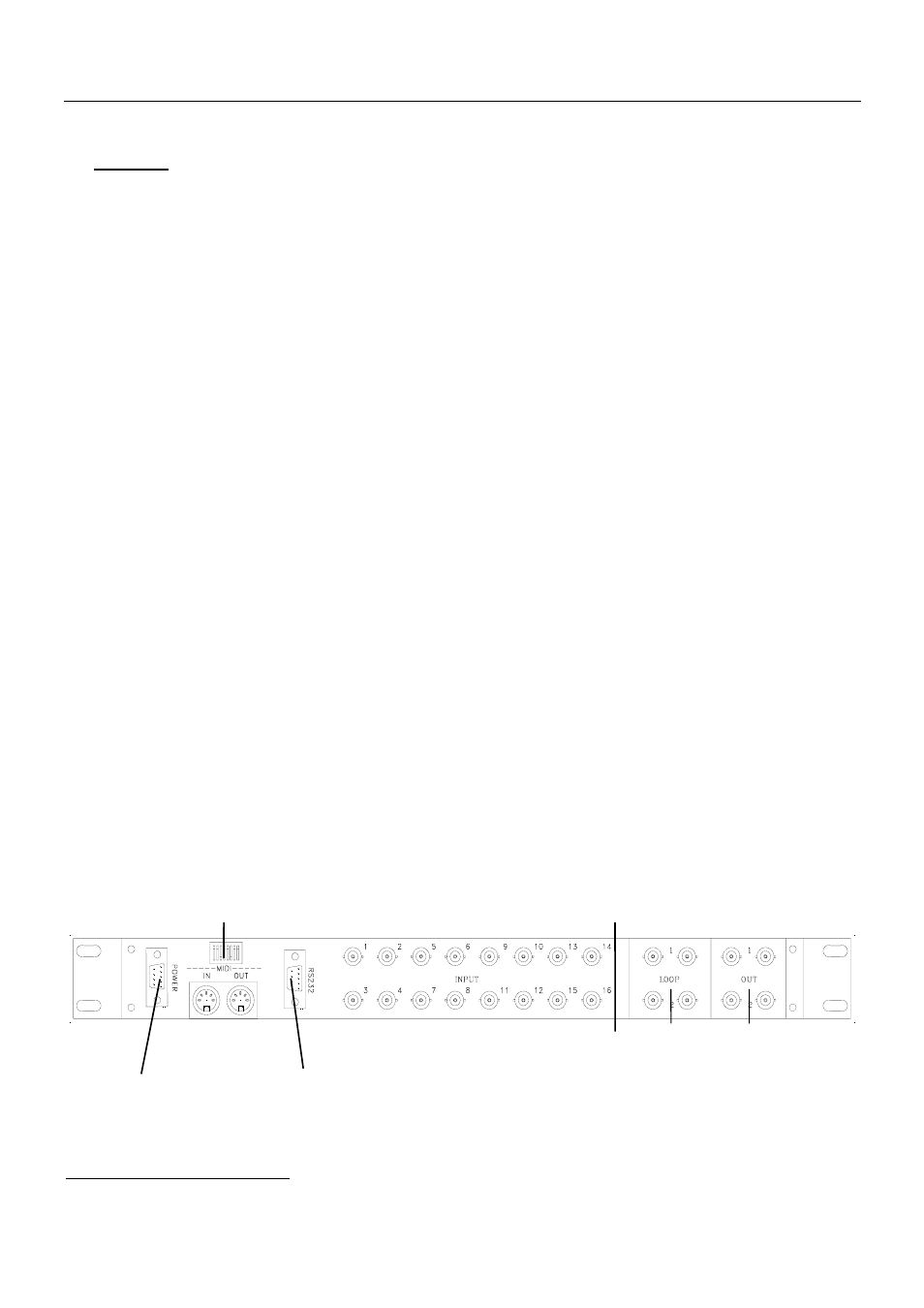

1.2 Connection drawing
Configuration switch
Video input section Video output section
NCB 1 Extension Extension
Router Output
Power connector RS-232 port
1 Network Control Bus. The protocol of this bus is equal, and compatible to the MIDI bus protocol.
