MAINTENANCE
Gear Shift Pedal
Adjust Gear Shift Pedal Height
1. Loosen the gear shift linkage rod locknuts.
2. Turn the linkage rod in or out as necessary.
3. Tighten the linkage rod locknuts.
4. Check the gear shift pedal height.
Notice
Do not remove and reposition the shift arm on the shift shaft to adjust gear shift pedal height. A 90_ ¦ 5_
angle between the shift arm and the linkage rod must be maintained to ensure correct shift linkage operation.
2
1
1
90°

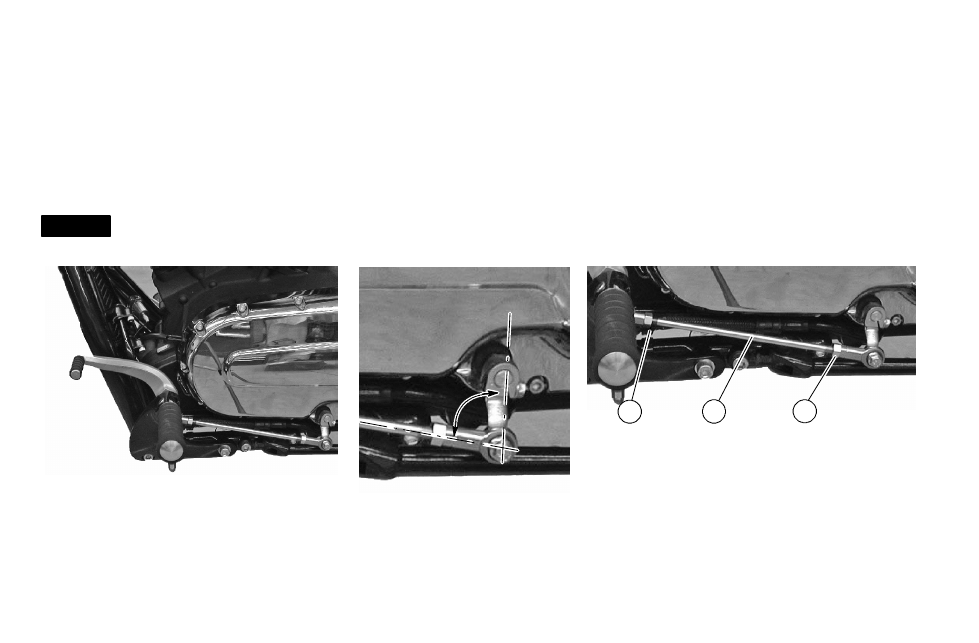

1. Shift Linkage Rod Lock Nut
2. Shift Linkage Rod
