Solution:
Basic course G3/Upgrade course

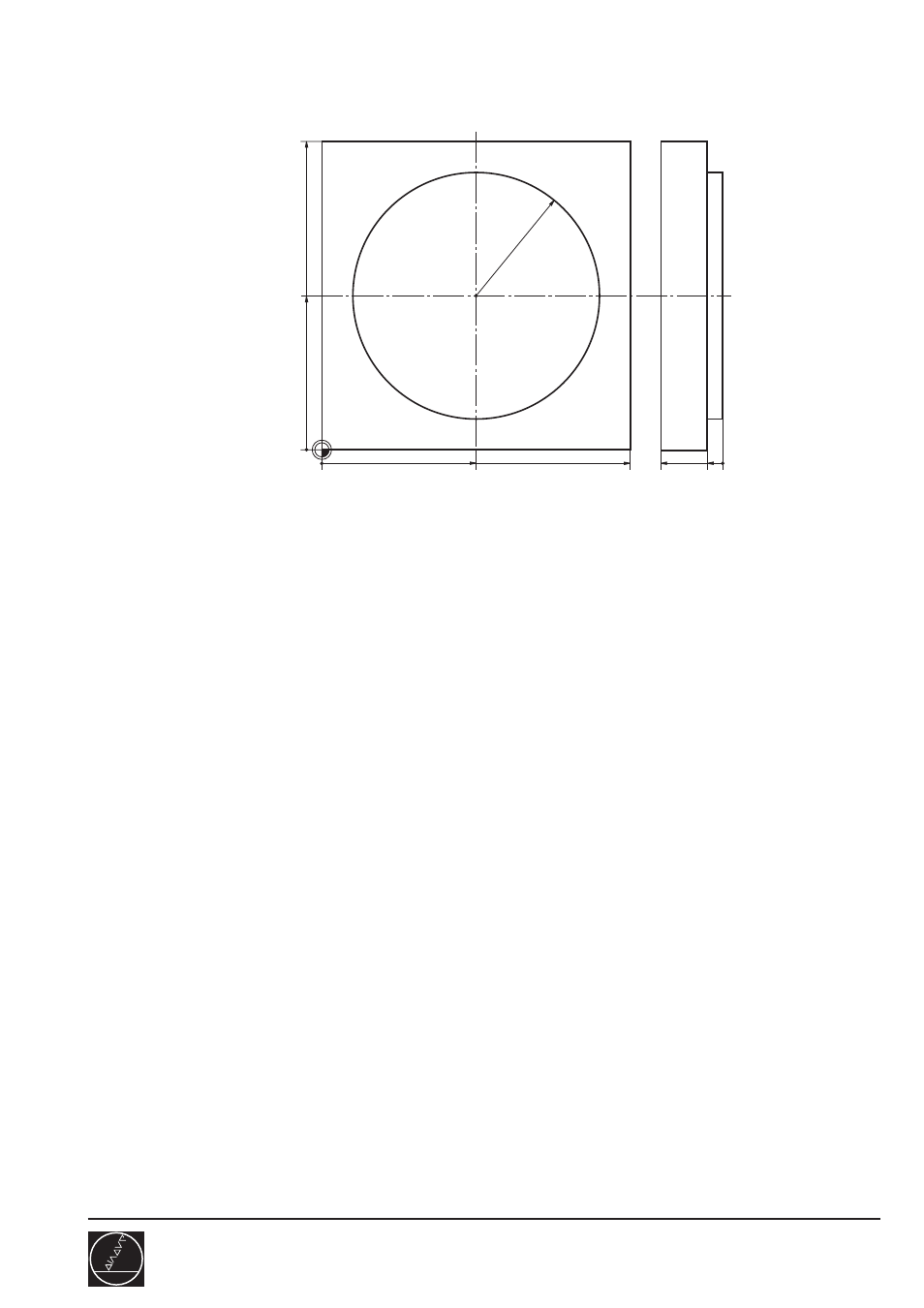

Circle (polar) CP
Complete program
211/2
D02
100
20
0
100
0
50
0
50
5
R40
CC 0°
0 BEGIN PGM 211 MM
1 BLK FORM 0.1 Z X+0 Y+0 Z-20
2 BLK FORM 0.2 X+100 Y+100 Z+0
3 TOOL CALL 13 Z S2500 ........................................... R20
4 L Z+100 R0 F MAX
5 CC X+50 Y+50 .......................................................... POLE
6 LP PR+80 PA+180 R0 F MAX M3 ............................ AUXILIARY POINT
7 L Z-5 F MAX
8 APPR PLCT PR+40 PA+180 R5 RL F250 M8 ............ APPROACH STARTING POINT OF
CONTOUR TANGENTIALLY
9 CP IPA+360 DR- ........................................................ CIRCLE PATH (POLAR)
10 DEP PLCT PR+80 PA+180 R5 ................................... DEPART TANGENTIALLY
11 L Z+100 F MAX M2
12 END PGM 211 MM
