SPRINGS
Positions the axle so that it is aligned with the trailer.
Place the springs on the top side of the spring pads welded to the axle.
(See chassis diagram on page 4.) The hook end of the spring must be
mounted to the rear of the trailer. Place a spring clamp on the top center
of the spring. Place the 1/2” X 6-1/2” U-bolts over the top of the spring
clamp, spring and axle. Place the spring and axle U-bolt plate onto the
ends of the two U-bolts. Secure in place with 1/2” lock nuts. Tighten.
AXLE

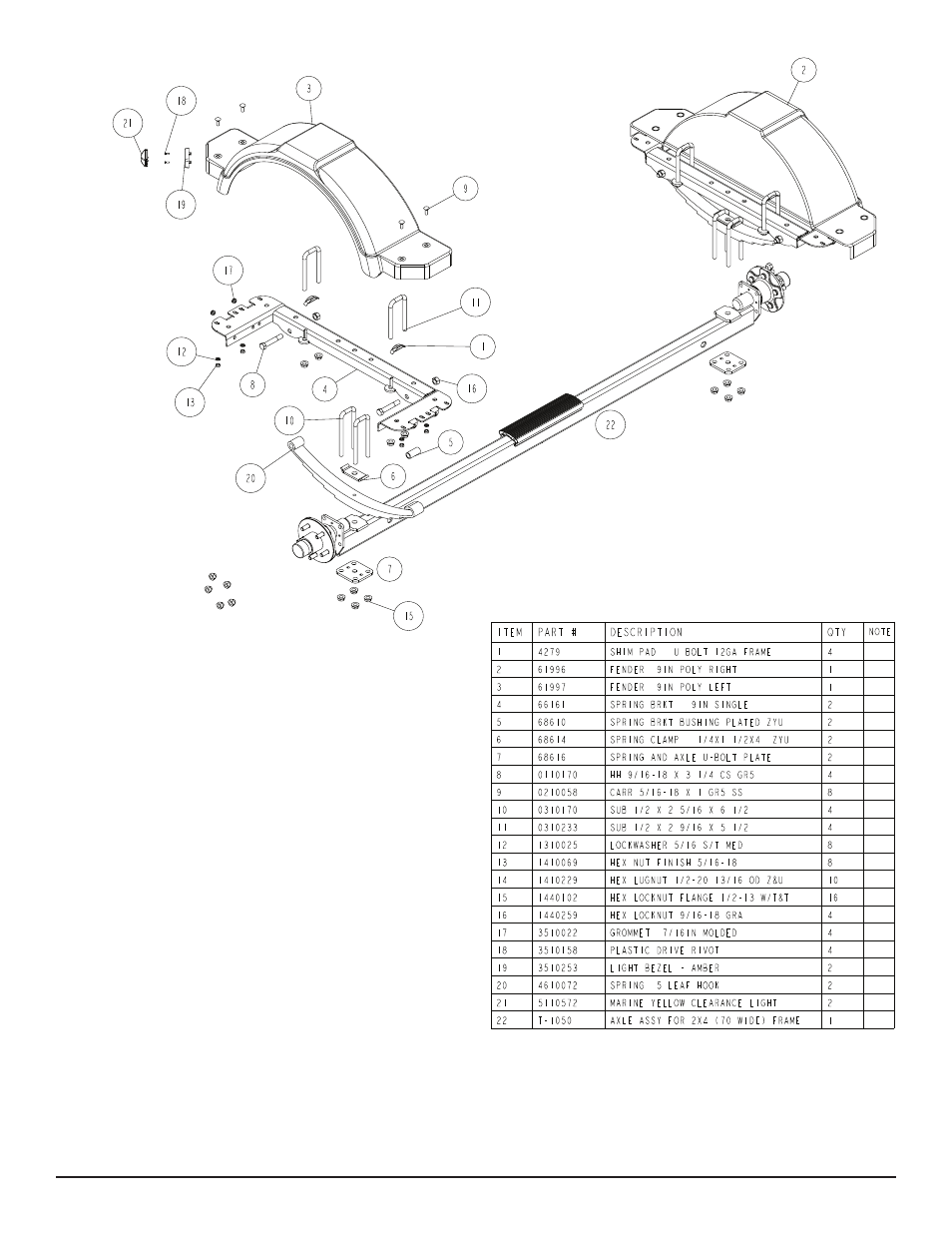

Place a spring bracket bushing (Ref.#9, Detail E) into the rear of the
spring bracket and secure with a 9/16” x 3-1/4” hex bolt and hex lock nut.
Repeat in the other spring bracket. Position the axle under the frame,
hook the hook loop of the spring around the bushings just installed.
Note: If the axle is positioned too low, the hooks will not hook around the
bushings.
Raise the front of the springs up so they align with the front hole of
the spring bracket. Secure in place with 9/16” X 3-1/4” hex bolts and
lock nuts. Tighten all axle U-bolts and spring bolts.
TIRE & WHEEL ASSEMBLY
Mount the tire and wheel assemblies using the 1/2” fine threaded ta-
pered lug nuts provided. Tighten to 85-95 ft./lb. of torque using the ro-
tation pattern as shown in the ShoreLandr’s Owners Manual.
Re-torque the lug nuts after 50 miles of driving and then
periodically thereafter.
