Invotel SX9500P User Manual
Page 2
ii
Package Content:
SX9500P Digital Player/Recorder unit
Power adapter 110v AC to 6-12V DC 100-600 ma
3.5mm male to 3.5mm male audio cord ( recording cord
RCA male to RCA male audio cord to connect to MOH port
User’s Manual
Recording:
The SX9500P utilizes automatic “audio-active”™ recording.
Set volume setting on SX9500P to about 50 % position during recording
Step 1 connect the SX9500P itself (with power adapter) to any audio source
(PC, CD player, radio, etc.) through the 3.5 mm recording cord
(please note:
audio must be off or at lowest volume level when you connect the recording cord)
Green LED turns OFF to indicate device is ready to record.
Step 2
start the audio (or increase the volume on your audio PC volume) the
RED Led light turns ON solid to indicate it is recording, wait until the RED Led
light turns OFF before removing the recording cord
(it takes about 15 seconds
after audio has stopped till RED turns OFF)
Do not remove the recording cord when RED LED is ON
For frequent updates connect your PC speaker out jack to a “Y” patch cable,
then connect both the speakers(if any) and the recording cord, this way the
recording cord is available any time you need to update SX9500P:
Unlike other Flash memory based products that compress the audio, voice
and audio signals are recorded directly into solid state memory in the
SX9500P in their natural, un-compressed form, providing superior quality
voice and music reproduction. SX9500P has 100 -year retention time at
zero power and can be re-recorded 100,000 times.
Specifications:
File Formats supports any sound file format and any PC such as
Windows .wav, MP3, WMA, MAC, etc.
Frequency response 20Hz to 20 KHz.
Sampling rate 8-bit/16-bit uncompressed PCM @ 8, 11, 12, 16, 22, 24,
32, 44 & 48 KHz (direct internal A to D 16 bit 8KHZ)
Distortion less than 0.1% THD
Audio Quality supports better than CD Quality at 188 KB/s
Special effects: supports Windows Media Files and SRS WOW Effects
Memory Capacity (8 minutes 30 seconds) @ full 188 KB/s sample
Memory Type Multi-level Flash, 100 years retention time at no power,
100K re-recordable
Message loading: Audio feed
Recording: Automatic audio active
Power supply: 110VAC 60 Hz. To 6-12 V DC 100-600ma
Size: 3 x 2 ” x 1” (L x W x H)
Color: Bone
Weight: 0.2 pounds (1/2 pounds with power supply)
P2
P3

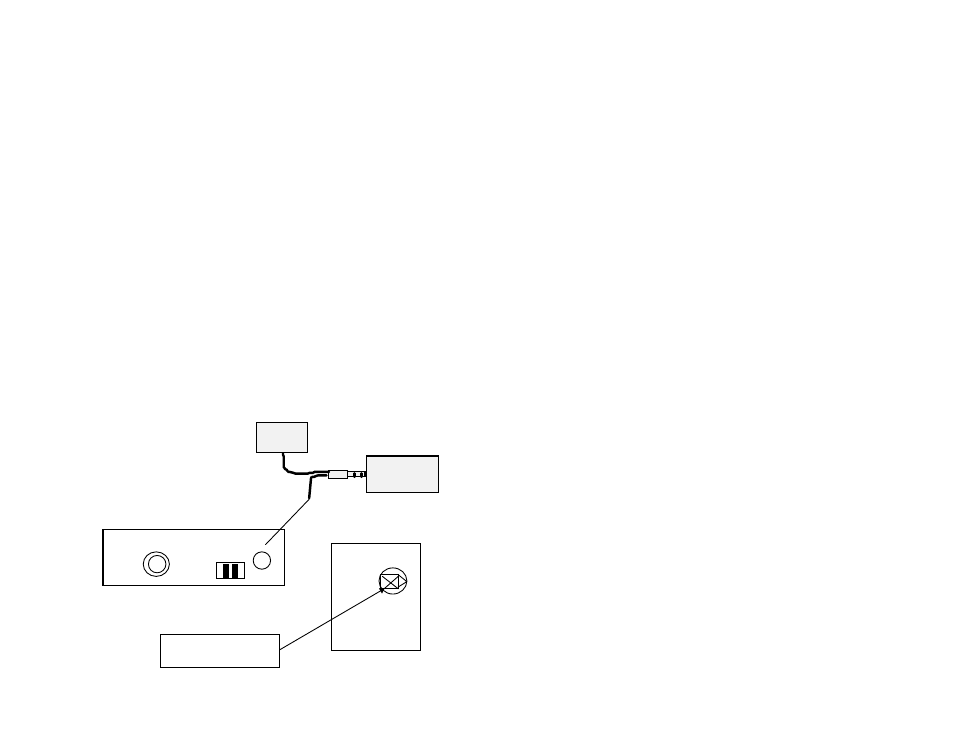

Audio IN
PC or
CD player
PC
speakers
“Y” Patch cable
3.5mm to 3.5mm audio cord
Red Green
Please note
:
1) Connecting the 3.5 mm recording cord into the SX9500P
stops the playback and prepares for recording (OFF LED
GREEN)
2) Remove the recording cord from SX9500P when RED LED
has turned OFF and you are done with recording session.
Set volume to 50% during
recording
