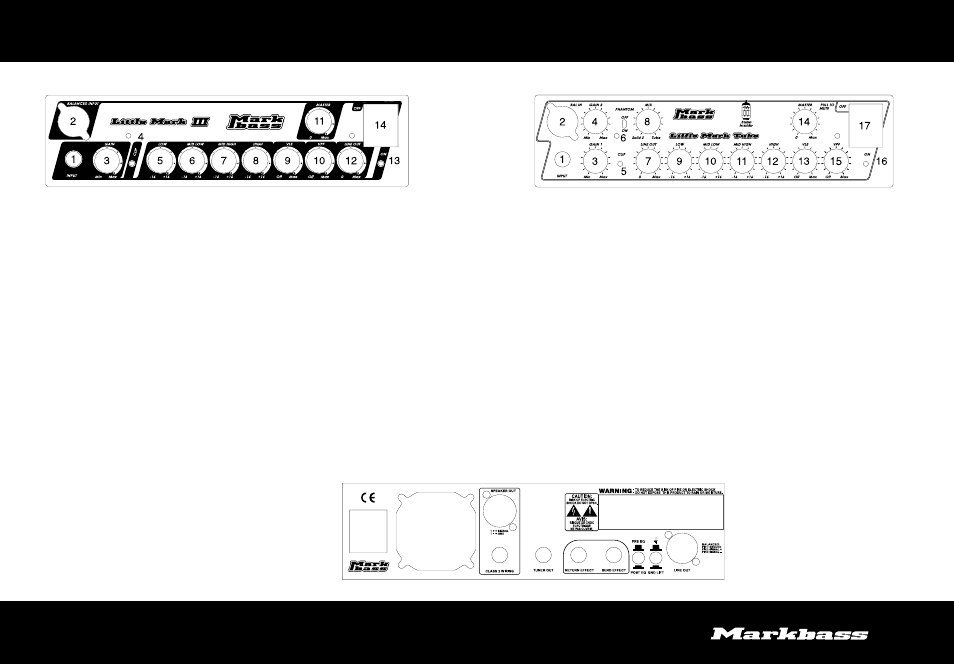

2. LITTLE MARK III / LITTLE MARK 250 / LITTLE MARK 800 / COMBO HEAD II FRONT PANEL
1
UNBALANCED 1/4” JACK INPUT
2
BALANCED XLR INPUT
3
SOLID STATE GAIN
4
CLIP LED
5
LOW EQUALIZATION CONTROL KNOB
6
MID LOW EQUALIZATION CONTROL KNOB
7
MID HIGH EQUALIZATION CONTROL KNOB
8
HIGH EQUALIZATION CONTROL KNOB
9
VLE FILTER LEVEL CONTROL KNOB
10
VPF FILTER LEVEL CONTROL KNOB
11
MASTER VOLUME LEVEL KNOB
12
LINE OUT LEVEL KNOB
13
POWER ON LED
14
MAIN ON/OFF SWITCH
3. LITTLE MARK TUBE / LITTLE MARK TUBE 800 FRONT PANEL
1
UNBALANCED 1/4” JACK INPUT
2
BALANCED COMBO XLR / 1/4” JACK INPUT
3
1/4” JACK INPUT GAIN
4
COMBO XLR / 1/4” JACK GAIN
5
CLIP LED
6
PHANTOM POWER 48V ON/OFF SWITCH (ON BALANCED COMBO XLR / 1/4” JACK INPUT)
7
LINE OUT LEVEL KNOB
8
MIX LEVEL CONTROL KNOB
9
LOW EQUALIZATION CONTROL KNOB
10
MID LOW EQUALIZATION CONTROL KNOB
11
MID HIGH EQUALIZATION CONTROL KNOB
12
HIGH EQUALIZATION CONTROL KNOB
13
VLE FILTER LEVEL CONTROL KNOB
14
MASTER VOLUME LEVEL KNOB (PULL OUT TO MUTE)
15
VPF FILTER LEVEL CONTROL KNOB
16
POWER ON LED
17
MAIN ON/OFF SWITCH
1
2
3
4
5
6
7
8
9
4. LITTLE MARK III / LITTLE MARK 250 / LITTLE MARK 800 / COMBO HEAD II / LITTLE MARK TUBE / LITTLE MARK TUBE 800 REAR PANEL
1
AC POWER SOCKET
2
SPEAKER OUT SPEAKON / 1/4” COMBO JACK
3
SPEAKER OUT 1/4” JACK
4
TUNER OUT 1/4” JACK
5
RETURN EFFECT 1/4” JACK
6
SEND EFFECT 1/4” JACK
7
PRE/POST EQUALIZATION CONTROL SWITCH
8
GROUND LIFT CONTROL SWITCH
9
LINE OUT XLR
