the sM46.V3 is designed to extract dust, saw dust and other fine
debris from wood machining. It should not be used to extract
metallic debris, glass or water.
Specification:
2. APPLICATION & SPECIFICATION
capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 600cfm
Impeller diameter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 225mm
Intake diameter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100mm
flexible hose diameter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100mm
flexible hose maximum length. . . . . . . . . . . . . . . . . . . . . . . . . . 2.0mtr
Motor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 230V, 50Hz, 746W
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28kg
noise level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .<87dBA
Description:
• Collector body with motor • Collector
• Seal • Column
• Base plate • Screws, nuts, washers (1 bag)
• Inlet Hose (2m) • Filter/Collector Bag x 2
• Support Rod x 3 • Castors x 4
3. CONTENTS & ASSEMBLY
Note: Numbers in brackets are the item numbers on the parts
diagram and in the parts list.
3.1 Attach the four castors (1) to the underside of the base (4)
using screws (2), washers (3 &29) and nuts (30). support
base (4) on battens, or similar, raising castors clear of floor to
give stability for the following assembly tasks.
3.2 With screws (14) and washers (12) attach column (20) to
base plate (4).
3.3 Attach motor (18) to column (20), so that collector body is
positioned as shown in parts diagram, with screws (14) and
washers (12).
3.4 Install collector (23) to collector body (11) using packing (22)
and flange head screws (15). Ensure collector is directly over
base.
3.5 Attach collector support rods (31) to base with screws (15),
M5 washers and nuts, and to collector with screws (2),
washers (29) and nuts (30).
3.6 Attach filter bag support (35) to collector with screws (34).
3.7 fit upper (filter) bag (25) over upper bag flange on collector
(23) and secure by tightening built-in strap. Hook loop on end
of bag (25) over support arm (35). fit second (collector) bag
(24) to lower bag flange on collector.
note: Bag clamps (36) are provided and may be used for
additional bag security.
3.9 Adjust screw (fig.1.A) to bear lightly against the side of the
collector body (B) and lock by tightening nut (c).
unpack the extractor components and check that all are present and
undamaged. In case of shortage or damage please contact the
supplier.
4. OPERATING INSTRUCTIONS
 WARNING! before operating the extractor ensure that
you read, understand and apply the safety instructions
in Section 1.
4.1 confirm that supply voltage matches the voltage shown on
the motor data plate and that the motor switch (16) is ‘off’.
4.2 connect extractor hose to the inlet (6) on the collector body
(11) and attach other end to extractor point on equipment.
 WARNING! DO NOT operate extractor without the hose
attached.
4.3 Plug into mains supply and press motor switch ‘on’.
4.4 Ensure that the lower bag is emptied of dust and chips on a
regular basis and is not allowed to become full.
Note: fitting a reducer to the extraction hose will reduce the
volume of dust extracted.
 WARNING! this unit is not suitable to be used to extract
dust via a piped system.

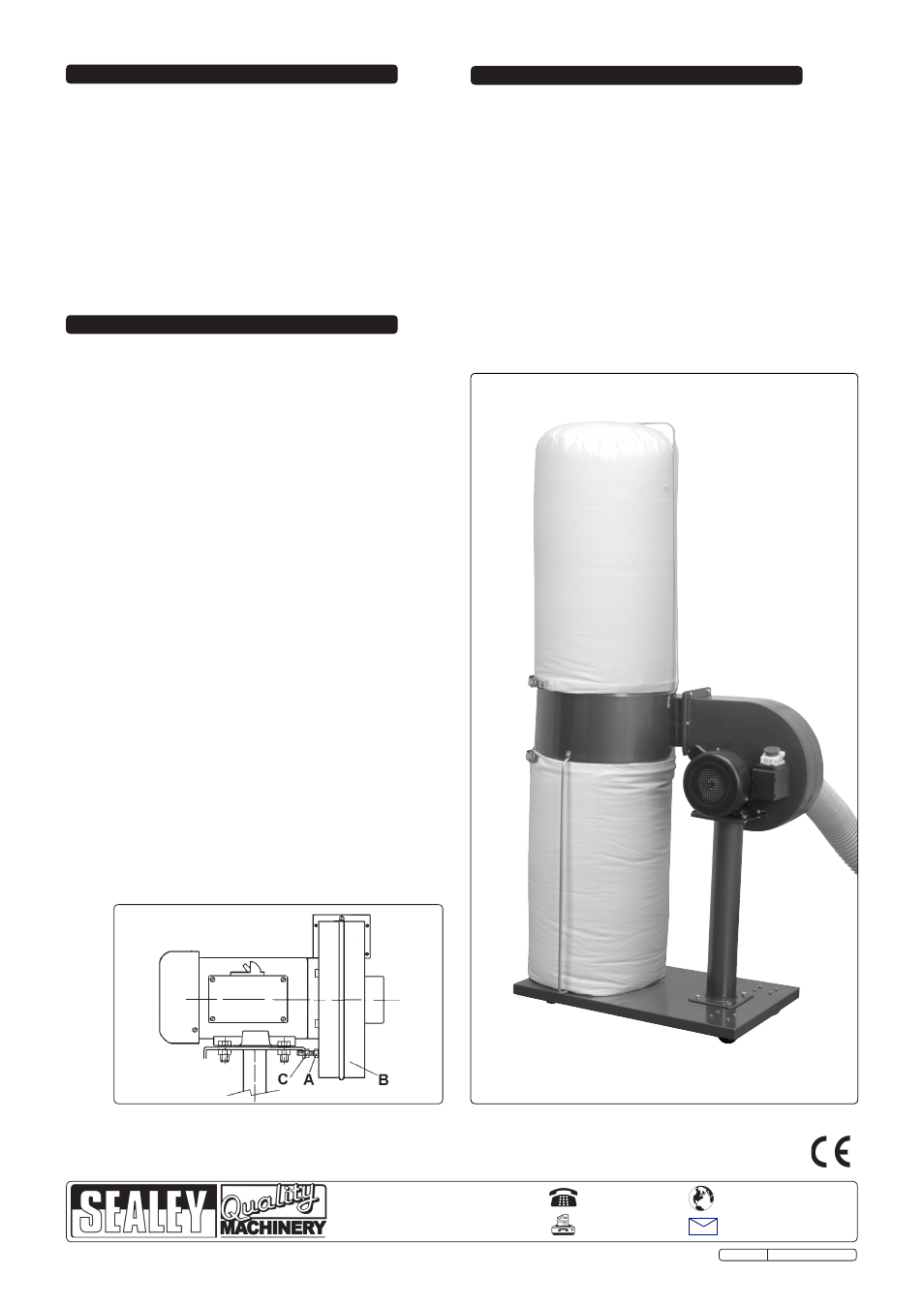

fig. 1
NOTE: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior notice.
IMPORTANT: no liability is accepted for incorrect use of this product.
WARRANTY: Guarantee is 12 months from purchase date, proof of which will be required for any claim.
