Bulletin IM-4600-0709

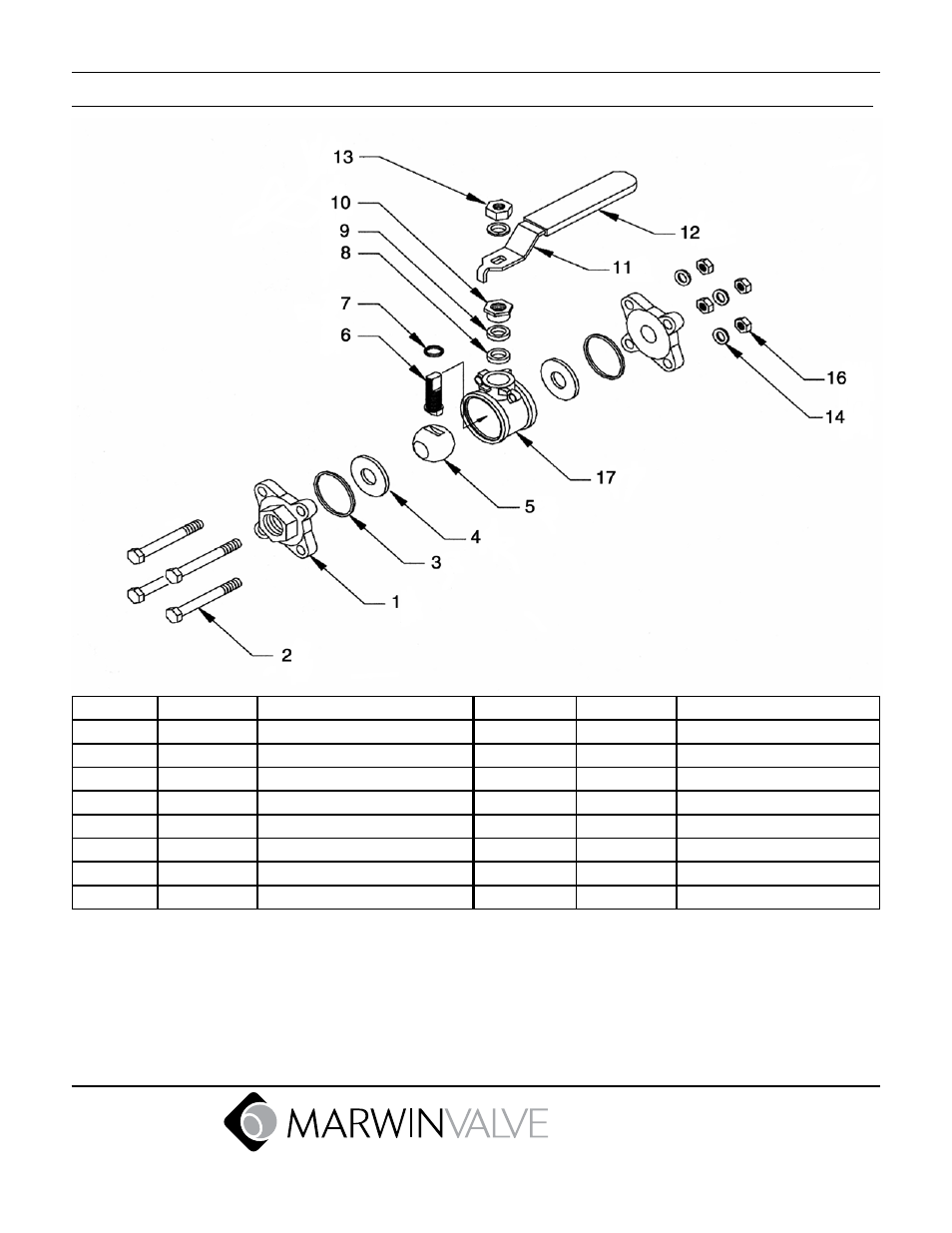

Exploded View
Item #
Quantity
Part Name
Item #
Quantity
Part Name
1
2
End Caps
9
1
Gland
2
4
Body Bolts
10
1
Gland Nut
3
2
Body Gasket
11
1
Handle
4
2
Seat Rings
12
1
Handle Cover
5
1
Ball
13
1
Handle Nut & Washer
6
1
Stem
14
4
Washer
7
1
Thrust Washer
16
4
Nut
8
2
Stem Packing
17
1
Body
