INSTRUCCIONES DE ENSAMBLAJE
ASSEMBLY INSTRUCTIONS:
1.
Find a clean, level place to begin the assembly of
your Soccer Table Game. We recommend that two
adults work together to assemble this Soccer Table
game.
2. Remove all the parts from the box and verify that you
have all of the listed parts as shown on the parts list
page. Carefully cut or tear the four corners of the box
so that the bottom of the box can be used as your
work surface.
FIG.1
FIG. 1
1. Encuentre un lugar limpio, plano para comenzar el
montaje de su Juego de Mesa de Fútbol. Recomenda-
mos montar por dos adultos juntos para este juego de
mesa de Fútbol.
2. Quite todas las partes desde la caja y verifique que
están todas las partes catalogadas como mostrado en
la página de lista de partes. Con cuidado de cortar o
rasgar los cuatro rincones de la caja de modo que
el fondo de la caja podría ser usado como su superficie
de trabajo.
FIG.1
3. Adjunte el Delantal Final (#2) a los Delantales Lateral
(#1) usando 4 Cerrojos (#8) y 4 Arandelas (#9).
Vea
la FIG. 1.
FIG. 2
X 1
X 4
X 4
X 2
1
2
8
9

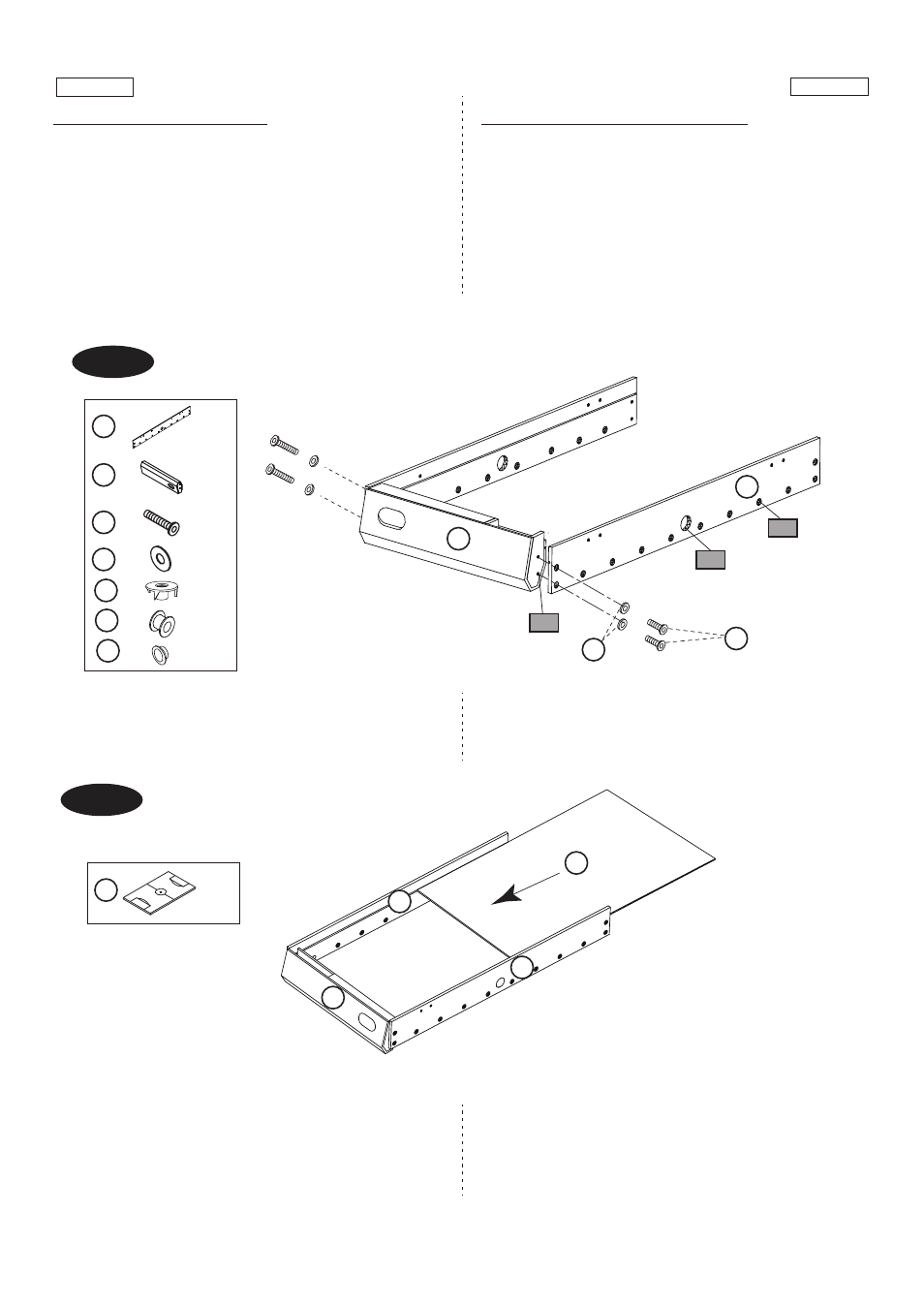

3. Attach one End Apron (#2) to the Side Aprons (#1) using
four Bolts (#8) and four Washers (#9).
See FIG. 1.
FIG.2
FIG.2
4. Slide the Playfield (#4), with the graphics facing down,
into the grooves of the Side and End Aprons (#1 & #2).
See FIG. 2.
X 1
4
1
4
2
1
1
2
8
9
P1
P3
P2
P1
P2
P3
X 4
X 16
X 2
4. Deslice el Campo de Juego de Fútbol (#4), con el gráfico
cara hacia abajo, dentro las muescas de los Delantales
Lateral y Final (#1 & #2).
Vea la FIG. 1.
