www.themdsports.com
1454818
10
(Continued on the next page.)

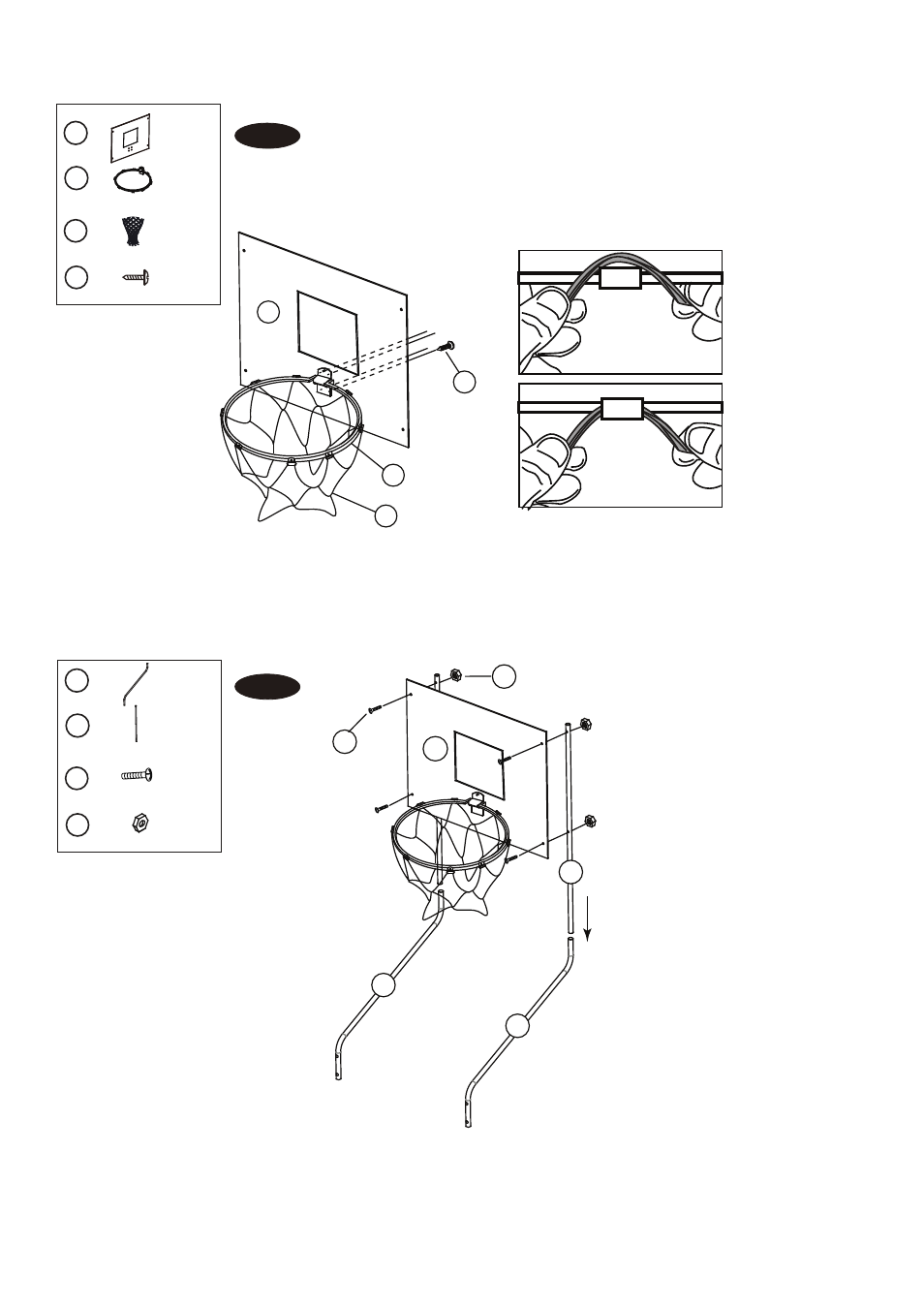

FIG.7
18. Attach the Basketball Rim (#28) to the Backboard (#9) using four Screws (#A5). And install the Basketball Net
(#29) to the Rim (#28).
FIG.8
19. Attach the Backboard (#9) to the Short Pole (#27) using four Bolts (#A6) and four Nuts (#A7).
20. Insert the Short Pole
(#27)
into
the
Crooked Pole (#26).
X 1
X 1
29
X 4
A5
X 1
9
28
28
9
29
A5
A
B
X 2
X 4
A6
X 4
A7
X 2
26
27
27
26
26
A7
9
A6
FIG. 7
FIG. 8
