Medal Sports SMUS1442121 User Manual
Page 9
www.themdsports.com
1442121
8
(Continúe en la siguiente página.)
(Continued on the next page.)
Español
English

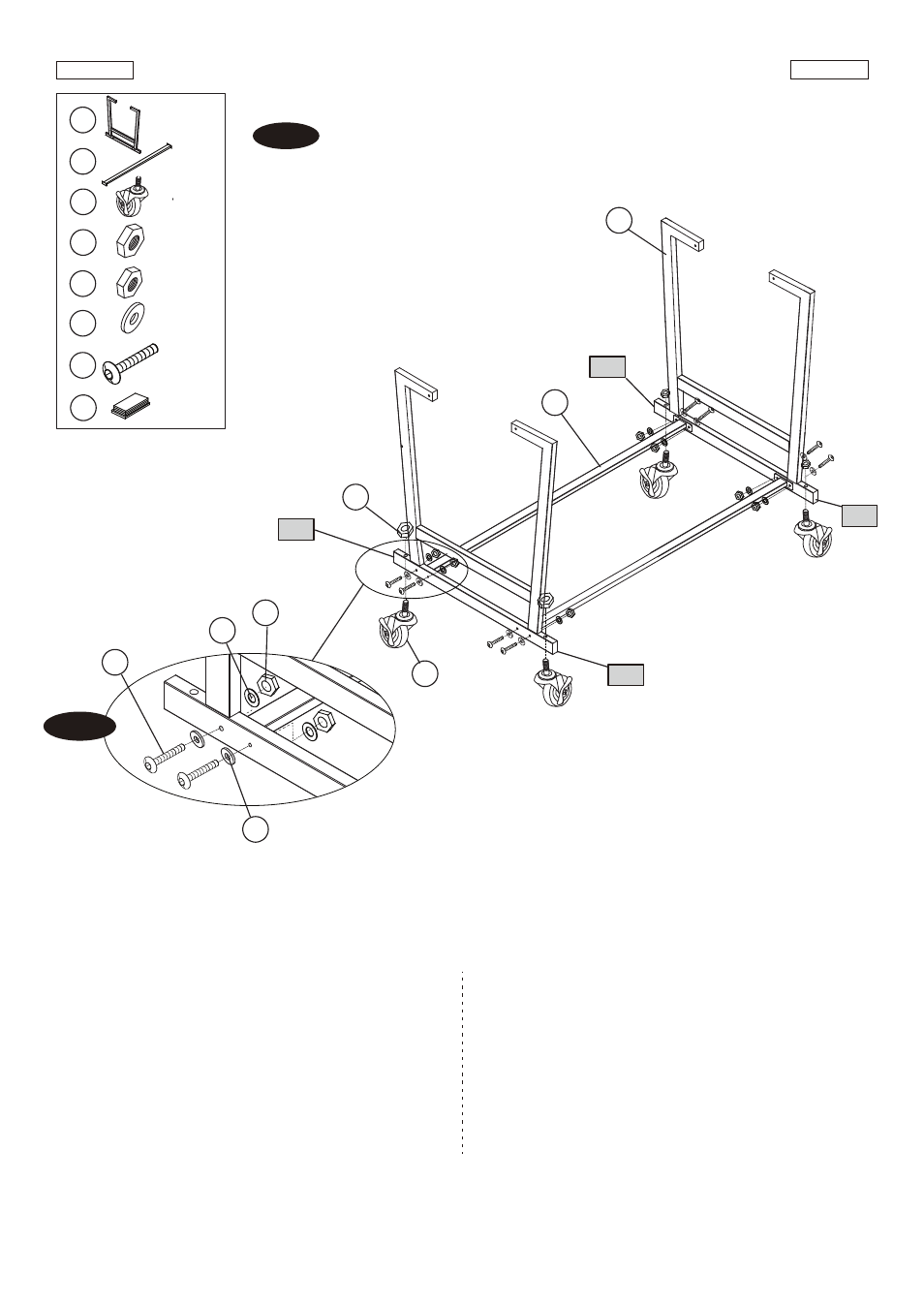

FIG.4
13. Attach a Bottom Support Tube (#6) to 2 Caster Frame
(#4) using four Bolts (#A7), eight Washers (#A4) and
four Nuts (#A3) per Bottom Support Tube
.
See FIG. 4A.
14. Attach a Caster with Lock (#14) to the Caster Frame
(#4) using one Nut (#15) per Caster with Lock.
See FIG. 4.
FIG.4
13. Adjunte el Tubo de Soporte del Fondo (#6) a los 2
Marcos de Ruedecita (#4) usando 4 Cerrojos
(#A7), 8 Arandelas (#A4) y 4 Tuercas (#A3) por
Tubo de Soporte del Fondo.
Vea la FIG. 4A.
14. Adjunte la Ruedecita con la Cerradura (#14) al
Marco de Ruedecita (#4) usando 1 Tuerca (#15)
por Ruedecita con Cerradura.
Vea la FIG. 4.
X 2
X 2
X 8
A3
A3
X 8
A7
A7
4
4
6
6
A4
X 16
A4
A4
14
15
15
14
X 4
X 4
X 4
P2
FIG. 4
FIG. 4A
P2
P2
P2
P2
