LOGIC ANALYZER

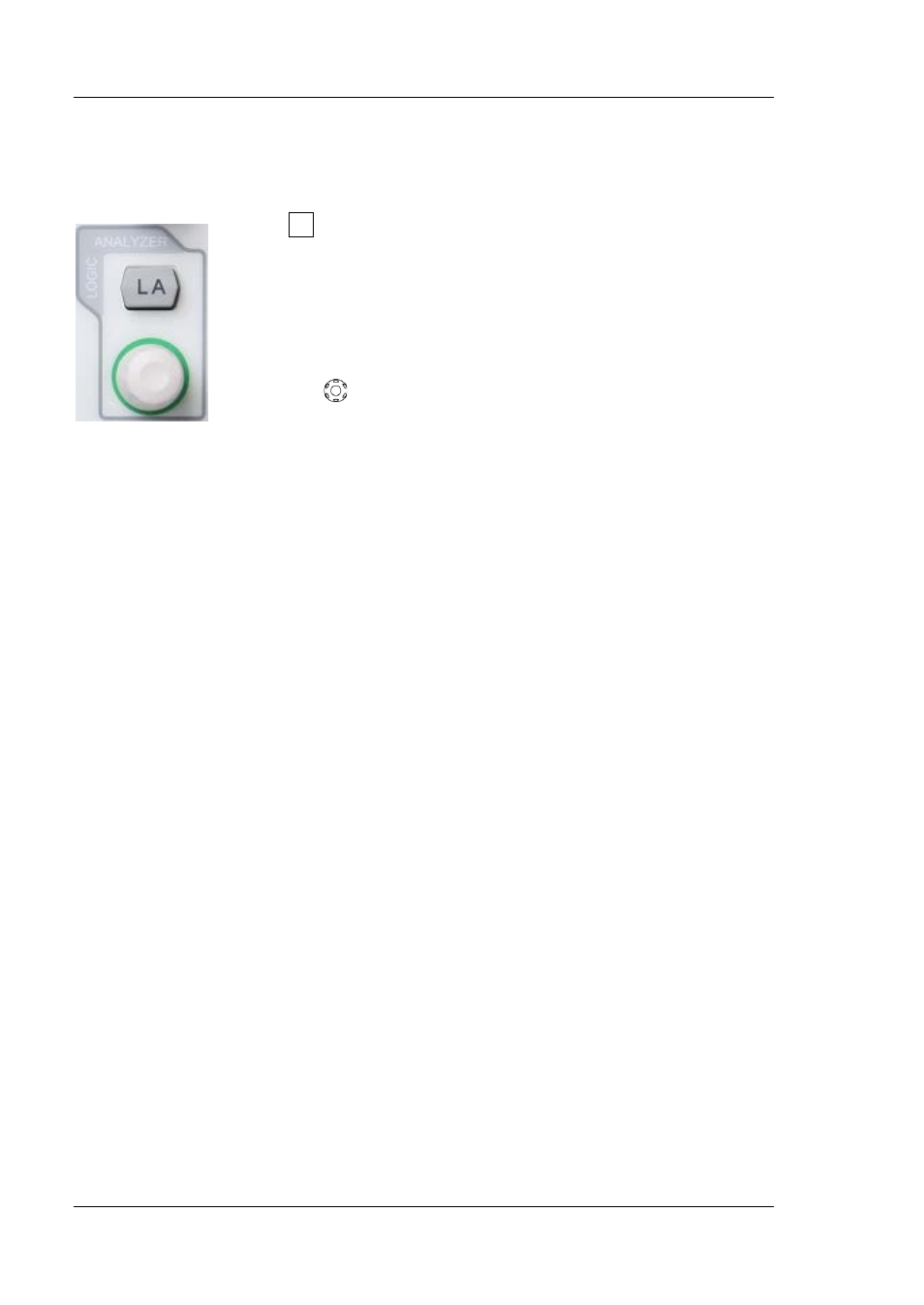

LA: press this key to enter the logic analyzer setting
interface. You can enable or disable groups of channels or
a single channel, change the display size and the logic
threshold of the digital channels and group the 16 digital
channels and display them as a bus. You also can set a
label for each digital channel.
LA_
: this knob can be used to reposition the digital
channels. Press this knob continuously to switch the digital
channels currently enabled by the number of the digital
channel (from small to large) and the channel selected is
highlighted in red. Rotate the knob to move the digital
waveform to desired position, press this knob again to fix
this channel and select the next channel.
Note: this function is only available for MSO4000 series digital oscilloscope.
