- 41 -
(26)
BAFFLE2, RECOIL BRACKET, BLOWER HOUSING, RECOIL STARTER and STOP SWITCH
(1)
Set the ignition coil cord to the notch of the insulator, and then mount the baffle 2 to the crankcase.
(M6×12 mm bolt : 3 pcs.)
(2)
Mount the recoil bracket to the crankcase stud bolts. (M6 Nut : 4 pcs.)
(3)
Mount the stop switch to the blower housing. (M4 × 12 mm screw and washer : 2 pcs.)
*
Tighten the wire 2 (ground) with the stop switch. (See Detail C)
(4)
Mount the blower housing on the crankcase.(M6 × 16 mm bolt : 5 pcs.)
*
Tighten the wire 2 (ground) with the blower housing. (See View D)
(5) Mount the recoil starter on the recoil bracket.(M6 × 14 mm bolt : 4 pcs.)
(27) WIRING
Refer to the wiring diagram (See page 48 and 49) for wiring details.

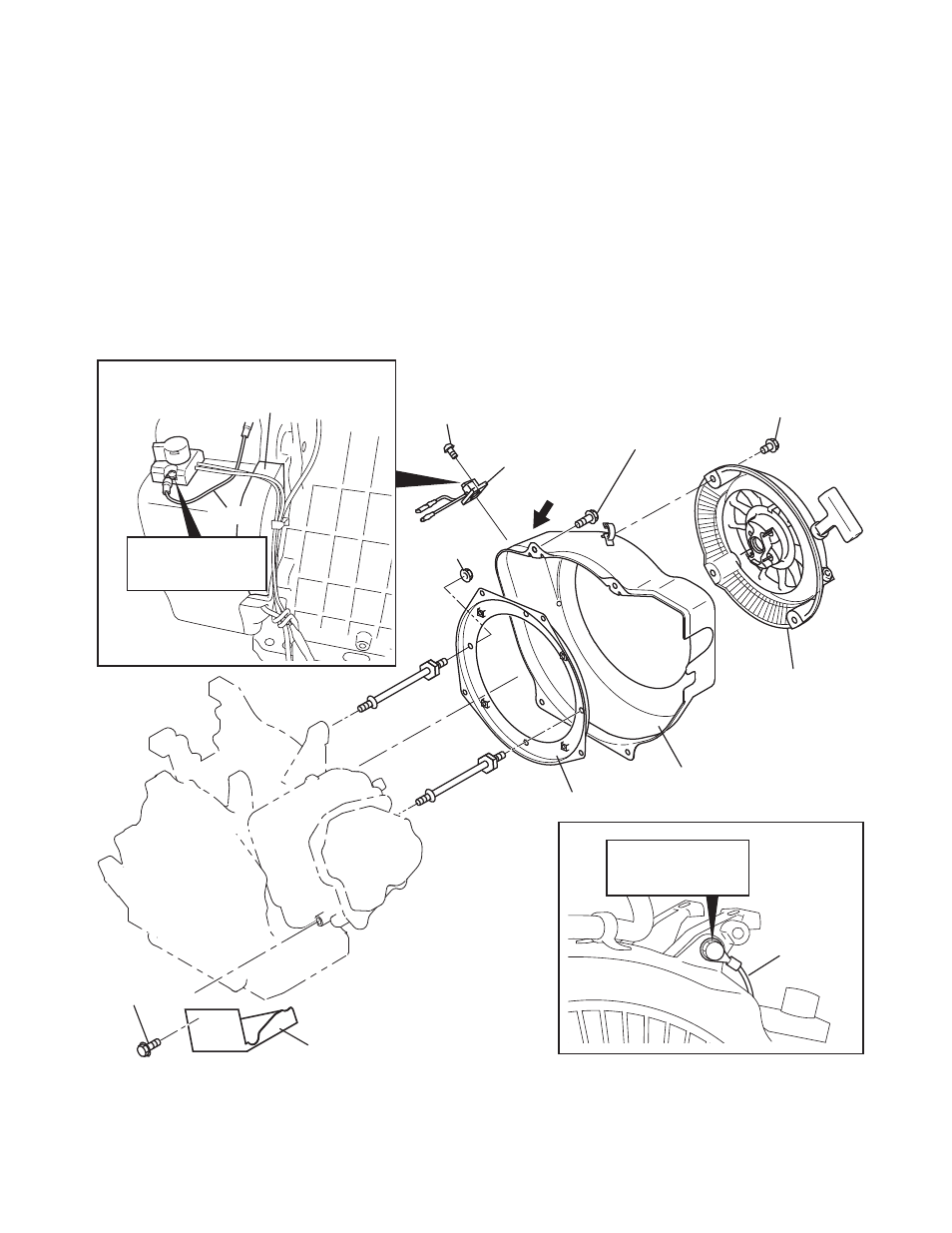

Fig.5-62
M4 x 12 SCREW and
WASHER : 2 pcs.
M6 x 14 BOLT : 4 pcs.
STOP SWITCH
RECOIL STARTER
BLOWER HOUSING
RECOIL BRACKET
M6 FLANGE
NUT : 4 pcs.
M6 x 12 BOLT
: 3 pcs.
BAFFLE 2
WIRE 2
(EARTH)
Tighten the wire 2
(ground) with the
blower housing.
㧰
VIEW D
DETAIL C
Tighten the wire 2
(ground) with the
stop switch.
WIRE 2
M6 x 15 BOLT : 5 pcs.
BAFFLE 1
(The baffle 1 is mounted, as
for without electric starter)
