A CLOSER LOOK
FEATURES
• One control dial with current indicator for easy operation
and setup.
• Adjustable air pressure regulator, air filter and pressure
gauge are standard.
QUALITY AND RELIABILITY
• Parts-in-Place safety indicator and lockout circuit to protect
both the operator and the system.
• Thermostatically protected against overheating.
• Line voltage compensation.
• Manufactured under a quality system certified to
ISO 9001 requirements and ISO 14001 environmental standards.
• Three-year warranty on parts and labor (1 year warranty on
plasma torch).
IPM (80% Max. Speed)
Metal Thickness – Inches (mm)
(9.5mm)
(12.7mm)
(15.8mm)
(19.0mm)
(25.4mm)
0
0
60
Number of Starts (20 Sec. Arc/Start)
120
180
20
40
60
Electrode Pit Depth (X.001 Inch)
240
300
Time in Hours
0.5
1.0
1.5
Production
Capacity
Recommended
Capacity
Maximum
Capacity
CUTTING CAPACITY – MILD STEEL
Ordering
Information
Description
EXPENDABLE PARTS

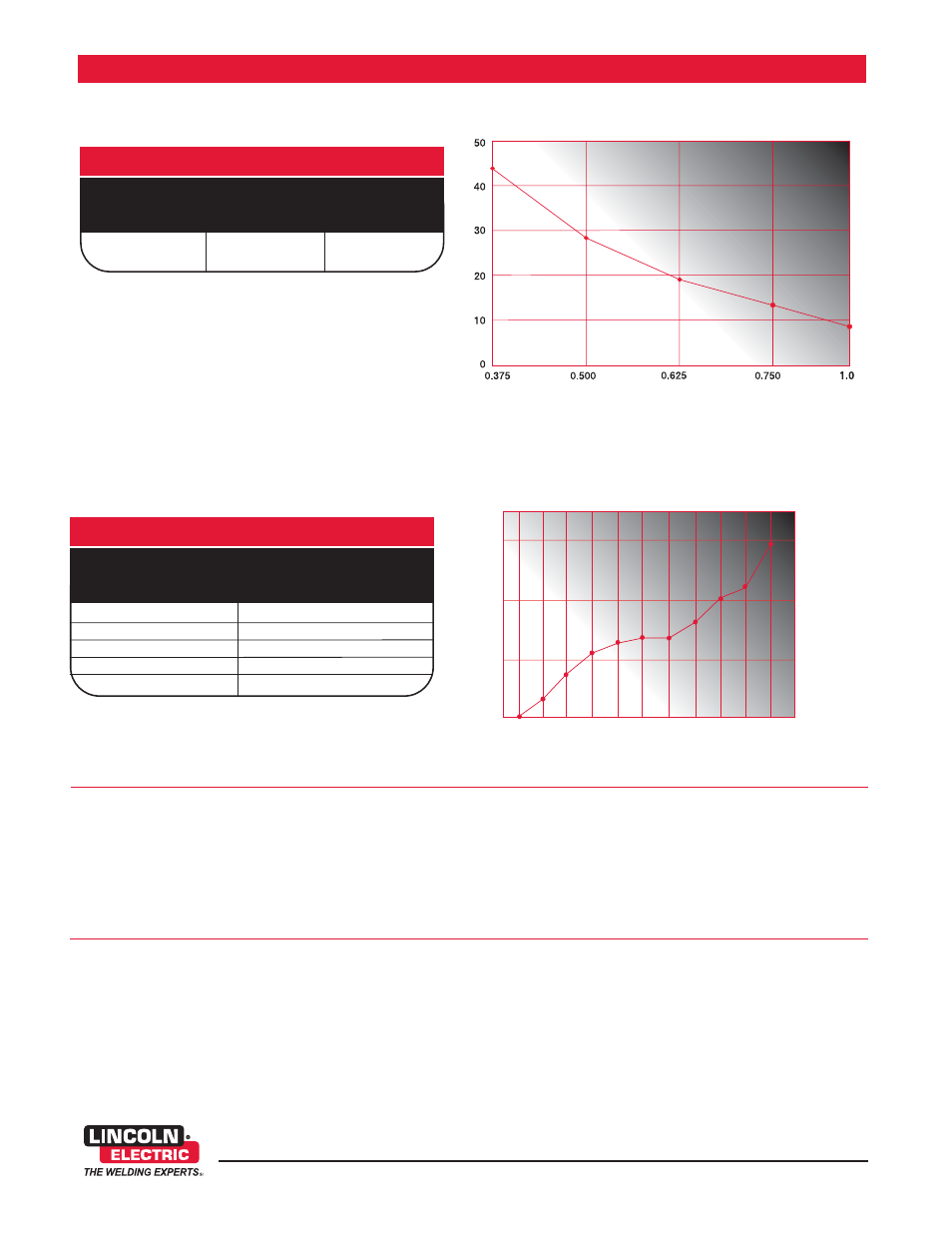

CUT CAPACITY DATA – MILD STEEL
ELECTRODE LIFE TEST DATA
Electrode erosion of .060" is typically end of electrode life.
1/2 in. (12.7mm) @
3/4 in. (19.0mm) @
1 in. (25.4mm) @
28 ipm (.71 m/min.)
13 ipm (.33 m/min.)
8 ipm (.20 m/min.)
KP2063-1B1
Electrode
KP2062-2B1
VORTECH™ Nozzle (.043)
KP2062-4B1
VORTECH Nozzle (.068) Gouging
KP2064-1
Shield Cup
KP2065-1
Drag Cup
Pro-Cut 55
www.lincolnelectric.com
PERFORMANCE
