Assembly
1. Check the inside of the utility box for any possible
obstructions and position the left and right rear corner post
as desired, ideally as far back and as far out as posssible.
DO NOT EXCEED 85½" overall width at bottom.
Mark where holes are to be drilled on the utility box.
2. Using a 13/32” or 3/8”
drill bit, drill holes
(4) where marked.
3. Mount rear posts to utility box.
Secure using (per hole):
1 - 3/8”- 16 x 1” carriage bolt
1 - 3/8”- flat washer
1 - 3/8”- lock washer
1 - 3/8”- hex head nut

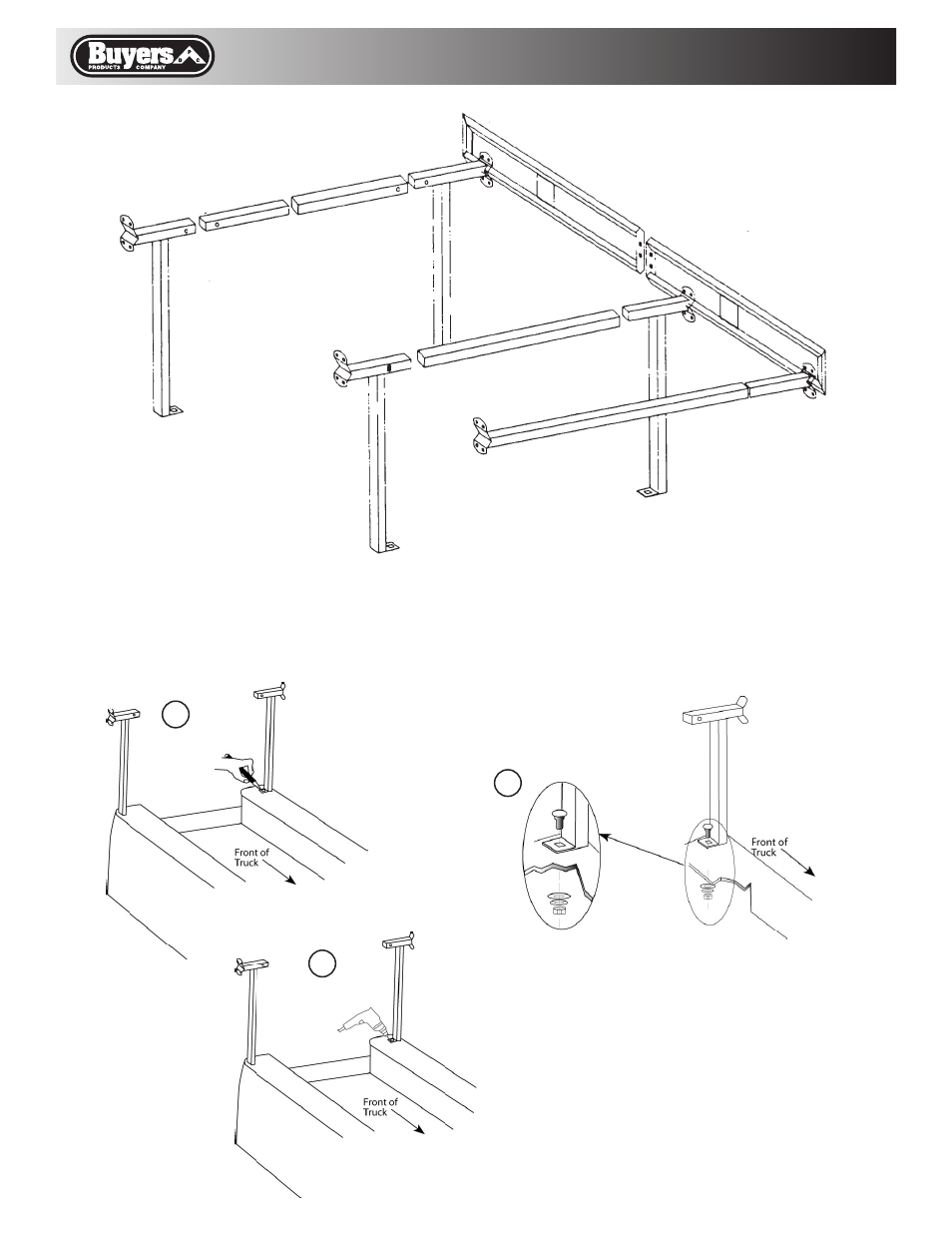

Figure 1
RIGHT
REAR
POST
LEFT
REAR POST
RIGHT
FRONT POST
SIDERAILS
REAR
CROSS
RAIL
(3/8” HOLES
ON BO
TH ENDS)
BLANK
BAR
CROSS
BAR
END
BLANK
BAR with
CLAMP
NOTE: Front Posts have welded NUTS
Rear Posts have through HOLES
1
2
3
