2002-2006 CADILLAC ESCALADE ELECTRONIC
REAR AIR SHOCK (INCLUDING ESV & EXT)
KIT AS-2411
Air Shock Removal/Installation:

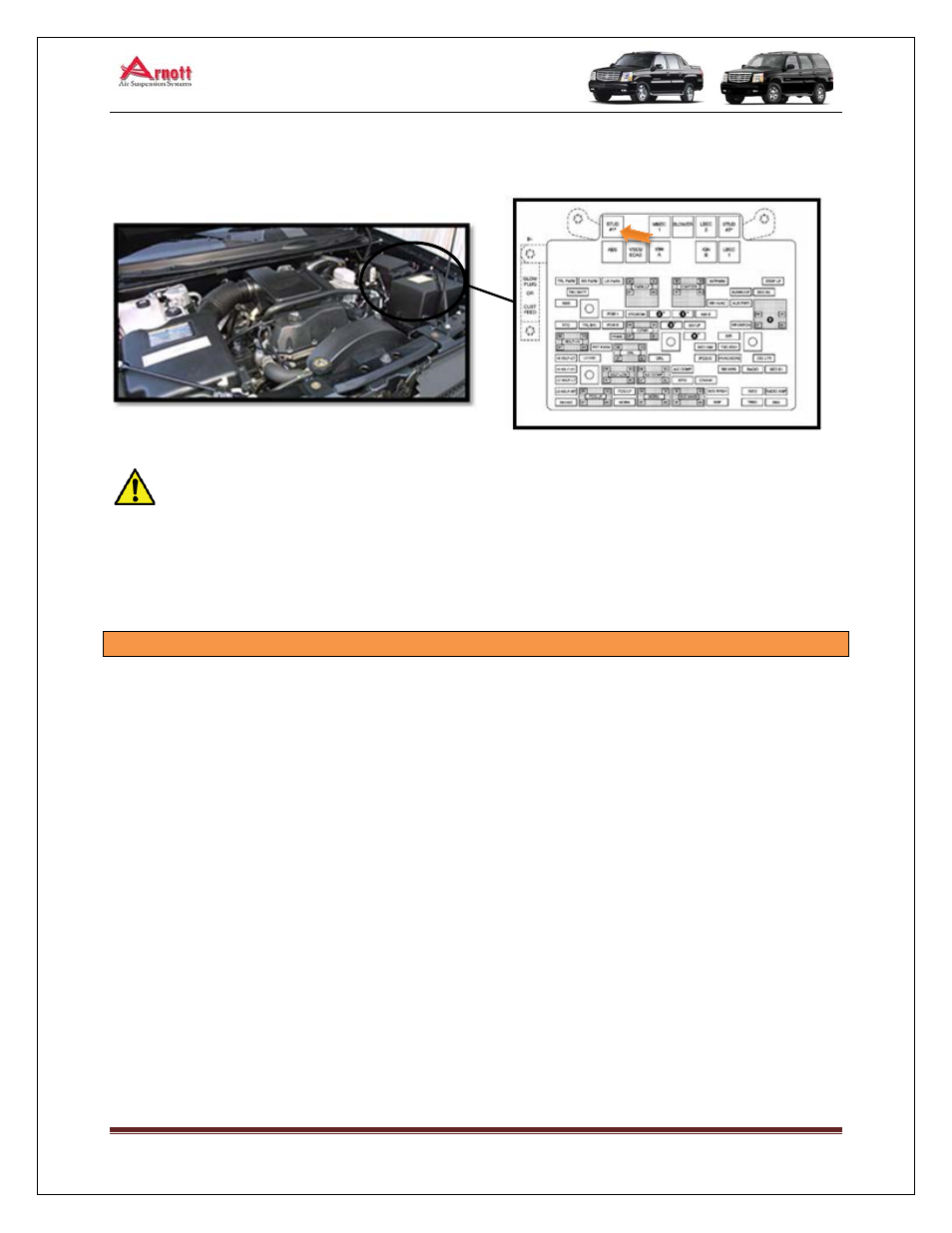

1.0 Remove the air compressor fuse (Stud 1) (figure A).
Figure A
Use lifting platform (hoist) that is capable of raising the body separately from the
wheels, lift body at the lifting points prescribed by the vehicle manufacturer.
Vehicle slippage can cause danger to life and limb.
2.0
Raise vehicle.
NOTE:
Refer to Figure B for steps 3.0- 6.0.
3.0
Disconnect the electrical connector (1).
4.0
Disconnect the air line (2).
5.0
Remove the upper air shock nut and bolt (3).
6.0
Remove the lower air shock nut and bolt (4).
7.0
Remove air shock.
8.0 Removal complete, installation is in the reverse order of removal. Torque upper and
lower air shock bolts to 70 ft-lb.
