PRO 155
A-2 A-2 INSTALLATION
Read entire installation section before starting
installation.
SAFETY PRECAUTIONS
IDENTIFY AND LOCATE
COMPONENTS
If you have not already done so, unpack the PRO 155
from its carton and remove all packing material
around the PRO 155. Remove the following loose
items from the carton (see Figure A.1):
1. PRO 155
2. Gun and cable assembly (1)
3. Literature and miscellaneous including:
a) This operating manual
b) 10 extra .045" contact tips
c) Hex key wrench for removal of drive roll.
4. 10 ft (3,0 m) work cable.
5. Work clamp.
6. Sample 10 lb. spool of Innershield .045" (1.2 mm)
NR-211-MP electrode.
7. Handshield with filter plate and lens.
8. Instructional video.
9. 8 ” Spool Adapter (2 ” Spindle) for mounting 10 lb.
Spools. (May be installed)
ELECTRIC SHOCK can kill.
• Only qualified personnel should perform
this installation.
• Only personnel that have read and under-
stood the PRO 155 Operating Manual
should install and operate this equipment.
• Machine must be plugged into a receptacle
which is grounded per any national, local
or other applicable electrical codes.
• The PRO 155 power switch is to be in the
OFF ( “ O ” ) position when installing work
cable and gun and when connecting power
cord to input power.
WARNING
For available options and accessories refer to acces-
sories section.
(1) The gun is ready to feed 0.045" (1.2 mm)
Innershield wire.

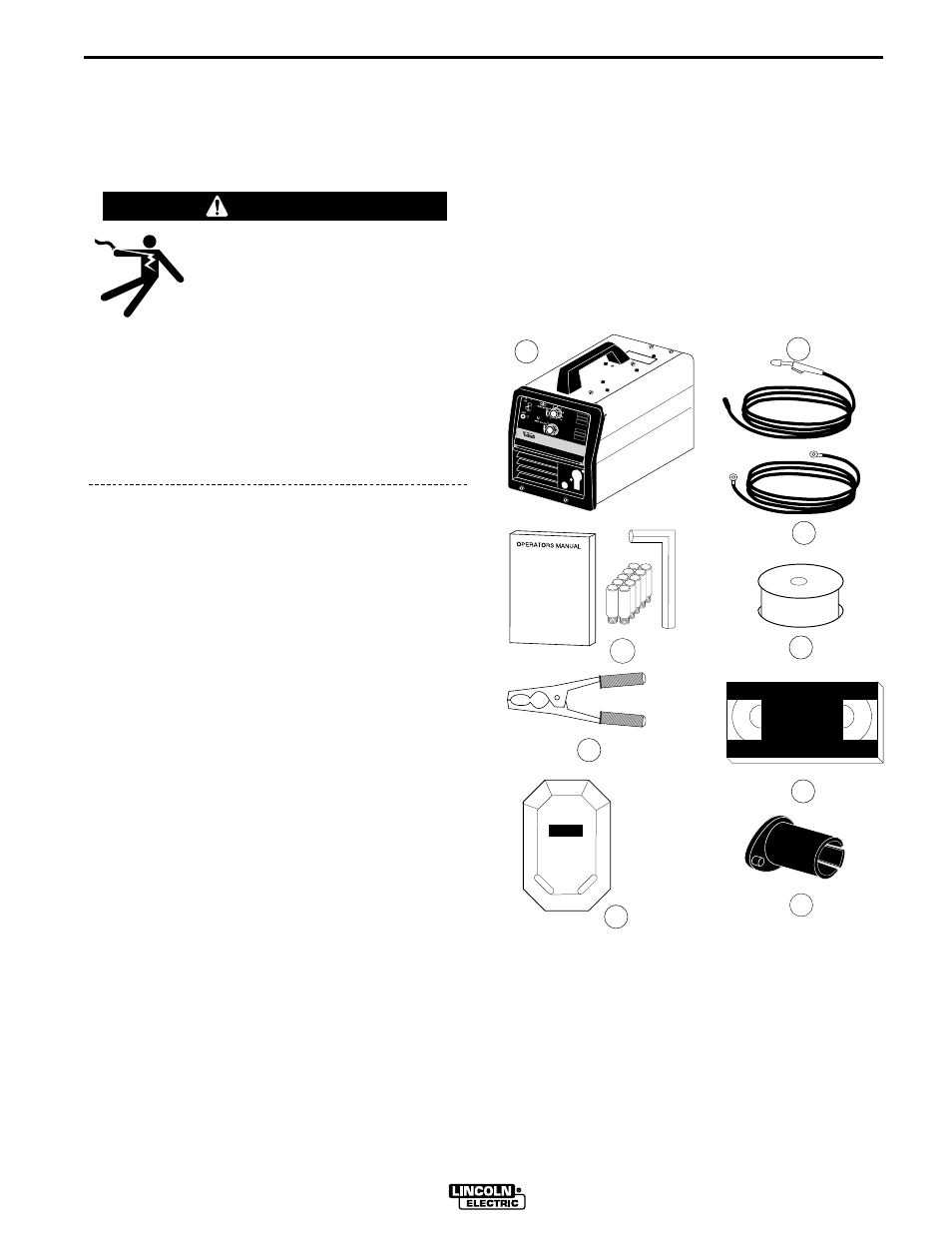

FIGURE A.1
PRO 155
1 2
4
5
6
7
8
E
3
9
