Blue Angel Pumps SBS100 User Manual
Page 9
9
SBS50, SBS75, and SBS100
Operating Instructions and Parts Manual
For Replacement Parts, call 1-888-636-6628
Please provide following information:
- Model number
- Serial number (if any)
- Part description and number as shown in parts list
Address parts correspondence to:
Blue Angel
101 Production Drive
Harrison, OH 45030 U.S.A.
1
Motor
32059-001
34142-002
34142-001
1
2
Screw
16636-002
16636-002
16636-002
4
3
Seal plate
17145-001
17145-001
17145-001
1
4
• Square ring rubber gasket
17150-001
17150-001
17150-001
1
5
• Shaft seal assembly
56393
56393
56393
1
6
Impeller
23285-002
23285-001
23285-001
1
7
Diffuser
17148-001
17148-001
17148-001
1
8
Screw
67007-001
67007-001
67007-001
2
9
• O-ring
15557
15557
15557
1
10
Venturi
17151-002
17151-003
17151-004
1
11
Nozzle
15672
15672
15672
1
12
Pipe plug 3/4”
15921
15921
15921
1
13
Volute
56869-001
56869-001
56869-001
1
14
Pipe plug 1/4” NPT
16314-002
16314-002
16314-002
1
15
Pipe plug 1/8” NPT
15766-002
15766-002
15766-002
1
16
Base
23029-001
23029-001
23029-001
1
17
Pressure switch
30010-001
30010-001
30010-001
1
•
Repair kit (Includes #4, 5 and 9)
56874-001
56874-001
56874-001
1

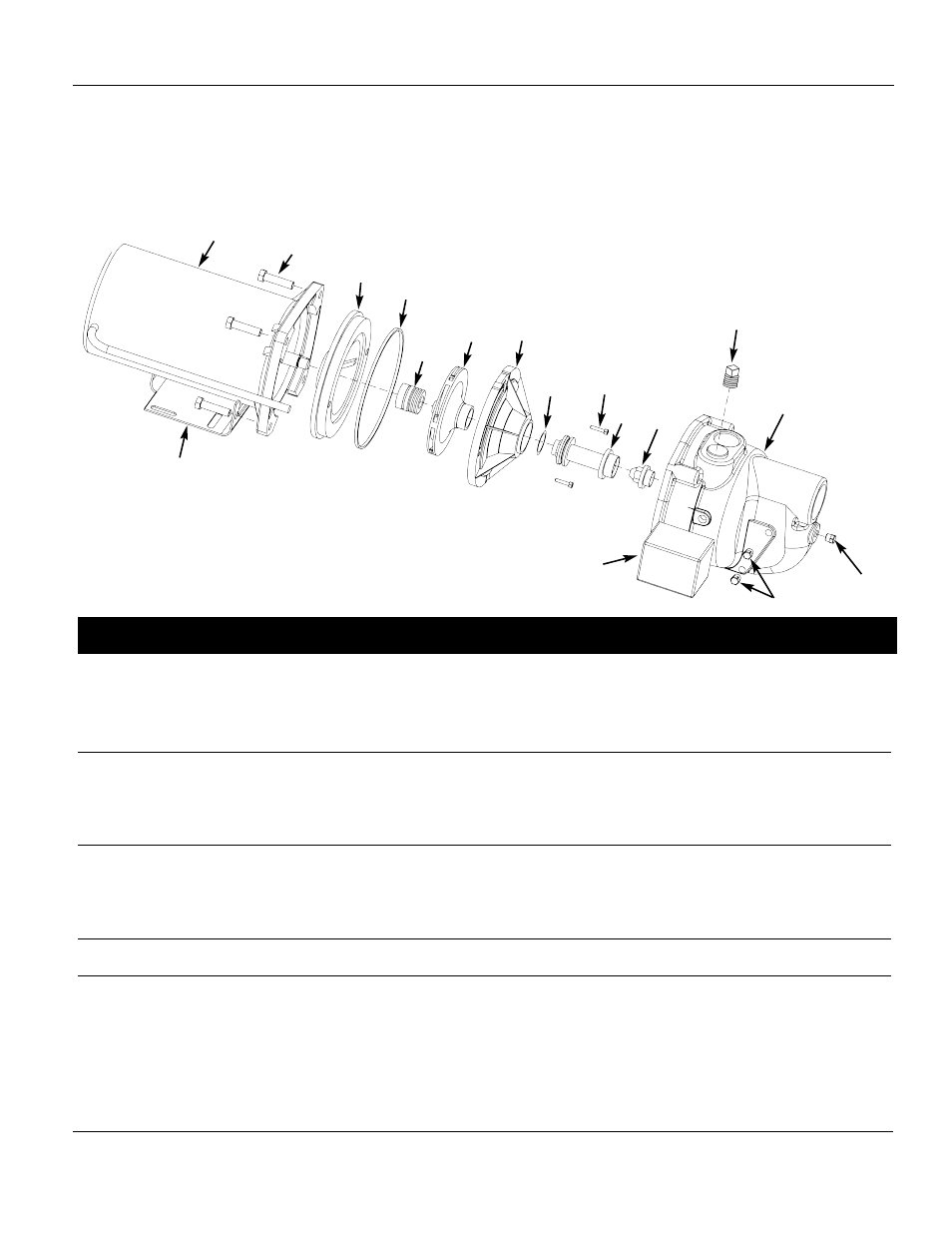

Ref.
Part Numbers for Models
No.
Description
SWS50-1/2 HP
SWS75-3/4 HP
SWS100-1 HP
Qty.
17
1
2
3
4
5
6
7
8
11
12
10
13
14
16
9
15
