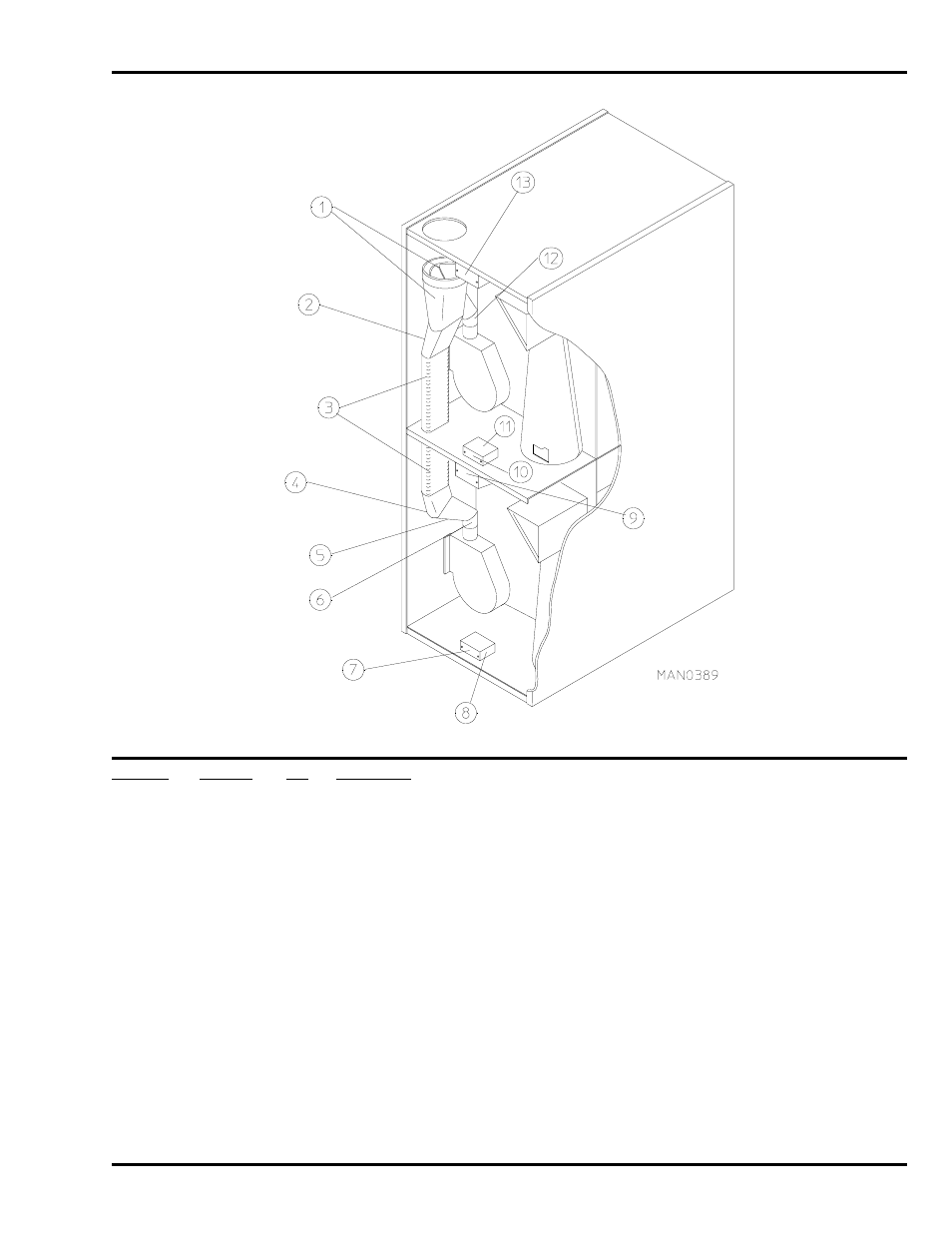

Exhaust Ducting Assembly
Illus. No.
Part No.
Qty.
Description
1
880505
1
Wye Branch Damper Assembly
2
143527
1
6” Round x 7” Oval Straight Boot
3
143539
1
15-1/2” x 7” Oval Duct
4
143537
1
7” Oval x 45° Elbow
5
143538
1
6” Round x 7” Oval Straight Boot
6
143536
1
6” Round x 45° Elbow
7
121104
1
Junction Box
8
121105
1
Junction Box Cover
150301
2
#8-18 x 7/16” Phillips Pan Head TEK Screw … Not Illustrated
9
315025
1
Rear Wiring Box Cover
150300
2
#10 x 1/2” Hex Washer TEK Screw … Not Illustrated
10
121104
1
Junction Box
11
121105
1
Junction Box Cover
150301
2
#8-18 x 7/16” Phillips Head TEK Screw … Not Illustrated
12
143536
1
6” Round x 45° Elbow
13
315025
1
Rear Wiring Box Cover
150300
2
#10 x 1/2” Hex Washer TEK Screw … Not Illustrated
—
117505
*
Aluminum Duct Tape (sold by the foot)
*
As required.
