2.3.8
Front I/O Connector
IDE_LED
POWER SW
RESET SW
IDE_LED-
IDE_LED+
PWR
Reset
Ground
1
2
USB
AAFP

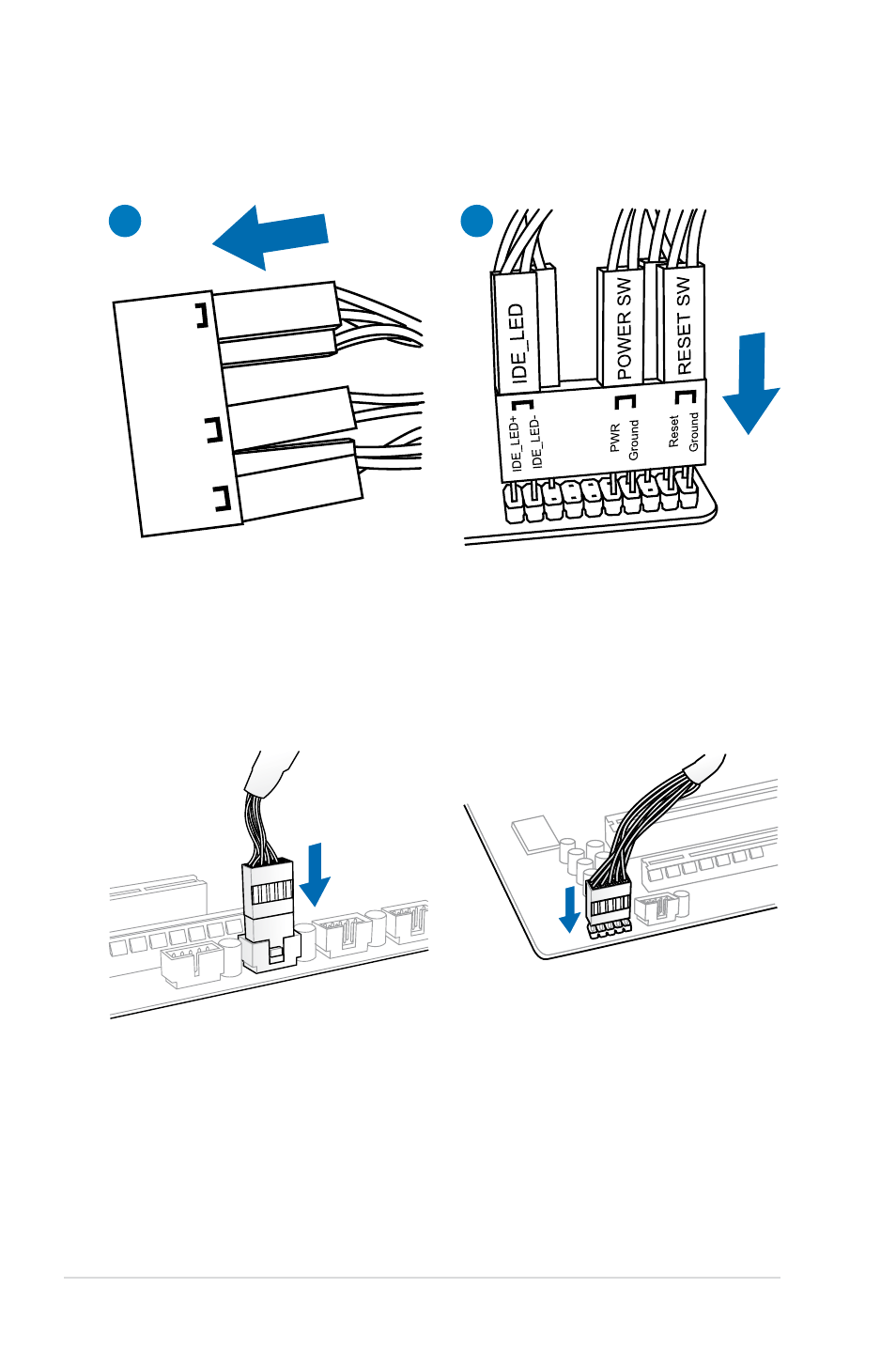

To install ASUS Q-Connector
To install USB Connector
To install front panel audio
connector
2-50
Chapter 2: Hardware information
