LIMIT SWITCH ASSEMBLY

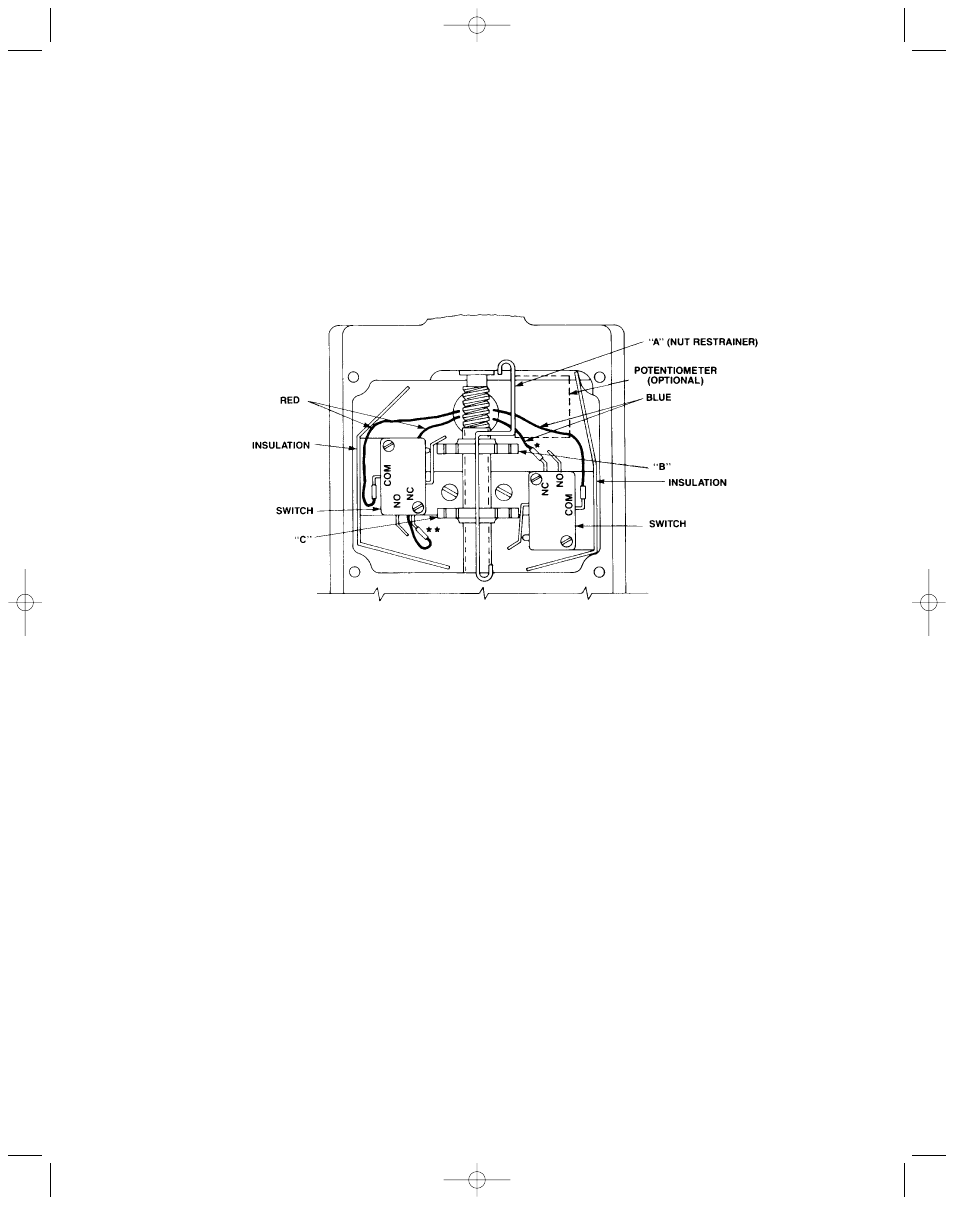

FIGURE 6-3. LIMIT SWITCH ASSEMBLY,
6420 & 7420 SERIES AC BALL SCREW ACTUATOR
**MOTOR LEAD WIRE (RED) SMALL TERMINAL
* MOTOR LEAD WIRE (BLUE) SMALL TERMINAL
