23
Gateways
10 to 30V dc
Line-
Powered
Nodes
10 to 30V dc
FlexPower ™
Nodes with
Switched
Power
Outputs
FlexPower
Supply

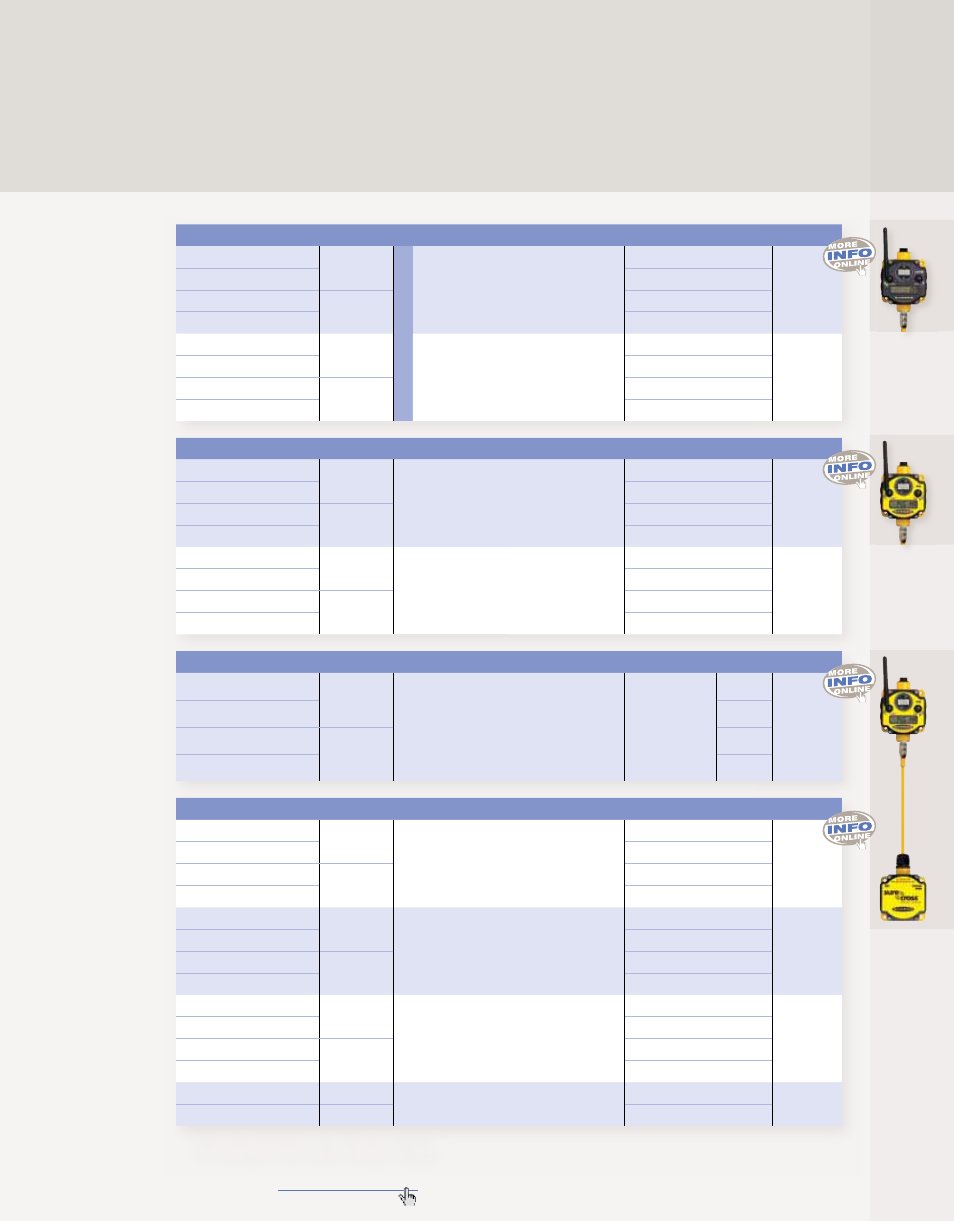

SureCross ™ Gateway and Node Models
• A network consists of one Gateway and one or more Nodes that operate in the same frequency band.
• Each Network accommodates one Gateway and any combination of Nodes shown in the table below.
• Input-to-output mapping is controlled by a configured Gateway or supported through serial communication.
• Multiple antenna options available; internal antenna recommended for ranges less than 500 ft, external antennas enable ranges up to 3 miles.
Model Number Frequency I/O Antenna Data Sheet
DX80G9M6W4P4
900 MHz
Modbus Enabled
Discrete
4 IN & 4 OUT
(sourcing)(sourcing)
Internal
131291
DX80G9M6S4P4 External
DX80G2M6W4P4
2.4 GHz
Internal
DX80G2M6S4P4 External
DX80G9M6W2P2M2M2
900 MHz
Discrete
2 IN & 2 OUT
(sourcing)(sourcing)
Analog
2 IN & 2 OUT
(0-20 mA)(0-20 mA)
Internal
131292
DX80G9M6S2P2M2M2 External
DX80G2M6W2P2M2M2
2.4 GHz
Internal
DX80G2M6S2P2M2M2 External
Model Number Frequency I/O Antenna Data Sheet
DX80N9X6W4P4
900 MHz
Discrete
4 IN & 4 OUT
(sourcing)(sourcing)
Internal
131293
DX80N9X6S4P4 External
DX80N2X6W4P4
2.4 GHz
Internal
DX80N2X6S4P4 External
DX80N9X6W2P2M2M2
900 MHz
Discrete
2 IN & 2 OUT
(sourcing)(sourcing)
Analog
2 IN & 2 OUT
(0-20 mA)(0-20 mA)
Internal
131295
DX80N9X6S2P2M2M2 External
DX80N2X6W2P2M2M2
2.4 GHz
Internal
DX80N2X6S2P2M2M2 External
Model Number Frequency I/O Notes Antenna Data Sheet
DX80N9X2W2N2M2X
900 MHz
Discrete
2 IN & 2 OUT
(sinking)(NMOS)
Analog
2 IN
(0-20 mA)
Configurable
switched power
outputs provide
sensor actuation
voltage up to
24V dc from the
FlexPower supply
Internal
131296
DX80N9X2S2N2M2X External
DX80N2X2W2N2M2X
2.4 GHz
Internal
DX80N2X2S2N2M2X External
Model Number Frequency I/O Antenna Data Sheet
DX80N9X2W2N2T
900 MHz Temperature
4 IN
(3 Thermocouple*
& 1 Thermistor)
Discrete
2 IN & 2 OUT
(sinking)(NMOS)
Internal
131297
DX80N9X2S2N2T External
DX80N2X2W2N2T
2.4 GHz
Internal
DX80N2X2S2N2T External
DX80N9X2W0P0R
900 MHz
Temperature
4 IN
(3 wire RTD**)
Internal
131597
DX80N9X2S0P0R External
DX80N2X2W0P0R
2.4 GHz
Internal
DX80N2X2S0P0R External
DX80N9X2W2N2M4
900 MHz
Discrete
2 IN & 2 OUT
(sinking)(NMOS)
Analog
4 IN
(0-20 mA)
Internal
131762
DX80N9X2S2N2M4 External
DX80N2X2W2N2M4
2.4 GHz
Internal
DX80N2X2S2N2M4 External
DX80N9X2S0P0Z0 900 MHz
M-GAGE™
(Internal sensor, internal battery, multi-year life)
Internal
131598
DX80N2X2S0P0Z0 2.4 GHz Internal
* Thermocouple units default to J-type. Other types configurable
** RTD units default to 3-wire 100 Ohm. Other types configurable
FlexPower ™
Nodes
FlexPower
Supply
