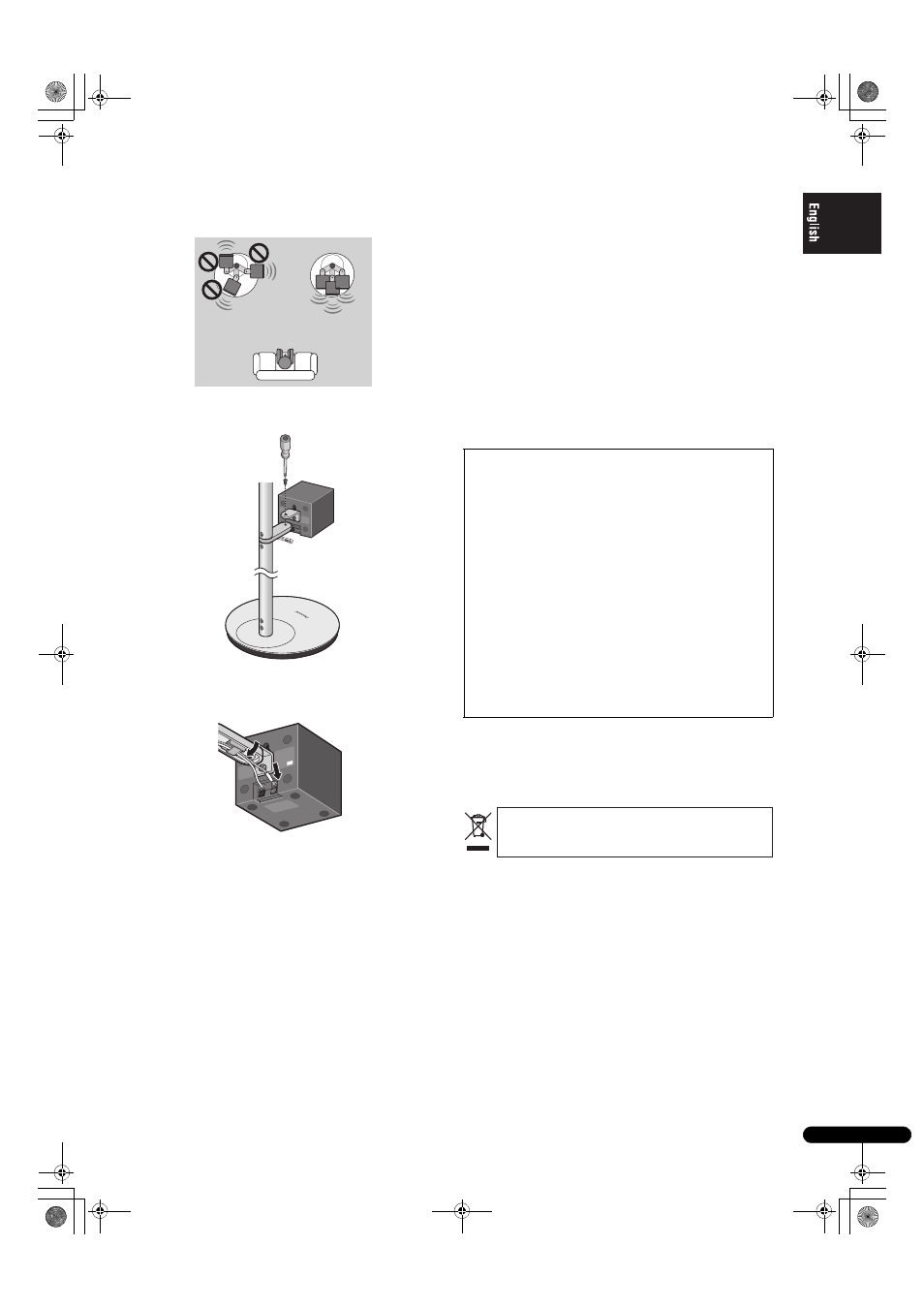

7 Fasten the speakers to the arms.
Be sure the speakers are oriented toward the listening
position when fastening in place.
Align the screw holes in the arm and angle bracket, and use
the furnished bind head screws (M4xL8) to fasten securely.
After fastening the speakers to the arms, attach each
speaker wire to its terminal on the rear of the speaker. Use
the wire clips to hold the wires in place as required.
Stand maintenance
With normal use, wiping with a soft cloth should be sufficient to
keep the stand clean. If necessary, clean with a cloth dipped in
a neutral cleanser diluted five or six times with water, and
wrung out well. Do not use furniture wax or cleansers. Never
use alcohol, thinners, benzine, insecticide sprays or other
chemicals on or near this unit since these will corrode the
surfaces. When using chemically-treated cloths, be sure to
carefully read their accompanying instruction manual.
Specifications
External dimensions (largest assembly)
............................300 mm (W) x 1113 mm (H) x 300 mm (D)
Weight (largest assembly).................................................. 5.8 kg
Supplied accessories
Stand bases [SXG1187] .............................................................. 2
Supports (long) [SNH1102] ........................................................ 2
Supports (short) [SNH1098]....................................................... 4
Caps [SXG1198]........................................................................... 2
Arms [SNH1099] ......................................................................... 6
Angle brackets [SNA1511] ......................................................... 6
Wire clips [SEP1381] .................................................................. 6
Pad gaskets [SEB1341]............................................................... 6
Screws (Flat countersunk head, M4xL6) [SBA1303].............. 16
Screws (Bind head, M4xL8) [SBA1304]..................................... 6
Screws (Bind head, M5xL10) [SBA1305]................................... 6
Operating instructions [SRD1366] ............................................ 1
The product numbers are listed above in square brackets.
• Specifications and design subject to possible modification
without notice, due to improvements.
Listening position
Replacement part numbers
Non-skid pads [SEB1343]
Screws (Bind head, M4xL12) [BPZ40P120FTB]
Screws (Bind head, M4xL8) [BMZ40P080FTB]
Polyethylene bag S2 [SHL1295]
Polyethylene bag S0 [SHL1314]
Polyethylene bag S0 [SHL1329]
Polyethylene bag S3 [SHL1429]
Polyethylene bag S0 [SHL1438]
Polyethylene bag S4 [SHL1457]
Polyethylene bag S0 [SHL1478]
Protection sheet [SHC1844]
Protector (Top) [SHA2633]
Protector (Bottom) [SHA2634]
Packing case [SHG2832]
If you want to dispose this product, do not mix it with general
household waste. There is a separate collection system for used
electronic products in accordance with legislation that requires
proper treatment, recovery and recycling.
Private households in the member states of the EU, in Switzerland and Norway
may return their used electronic products free of charge to designated
collection facilities or to a retailer (if you purchase a similar new one).
For countries not mentioned above, please contact your local authorities for
the correct method of disposal.
By doing so you will ensure that your disposed product undergoes the
necessary treatment, recovery and recycling and thus prevent potential
negative effects on the environment and human health.
Published by Pioneer Corporation.
Copyright © 2008 Pioneer Corporation.
All rights reserved.
