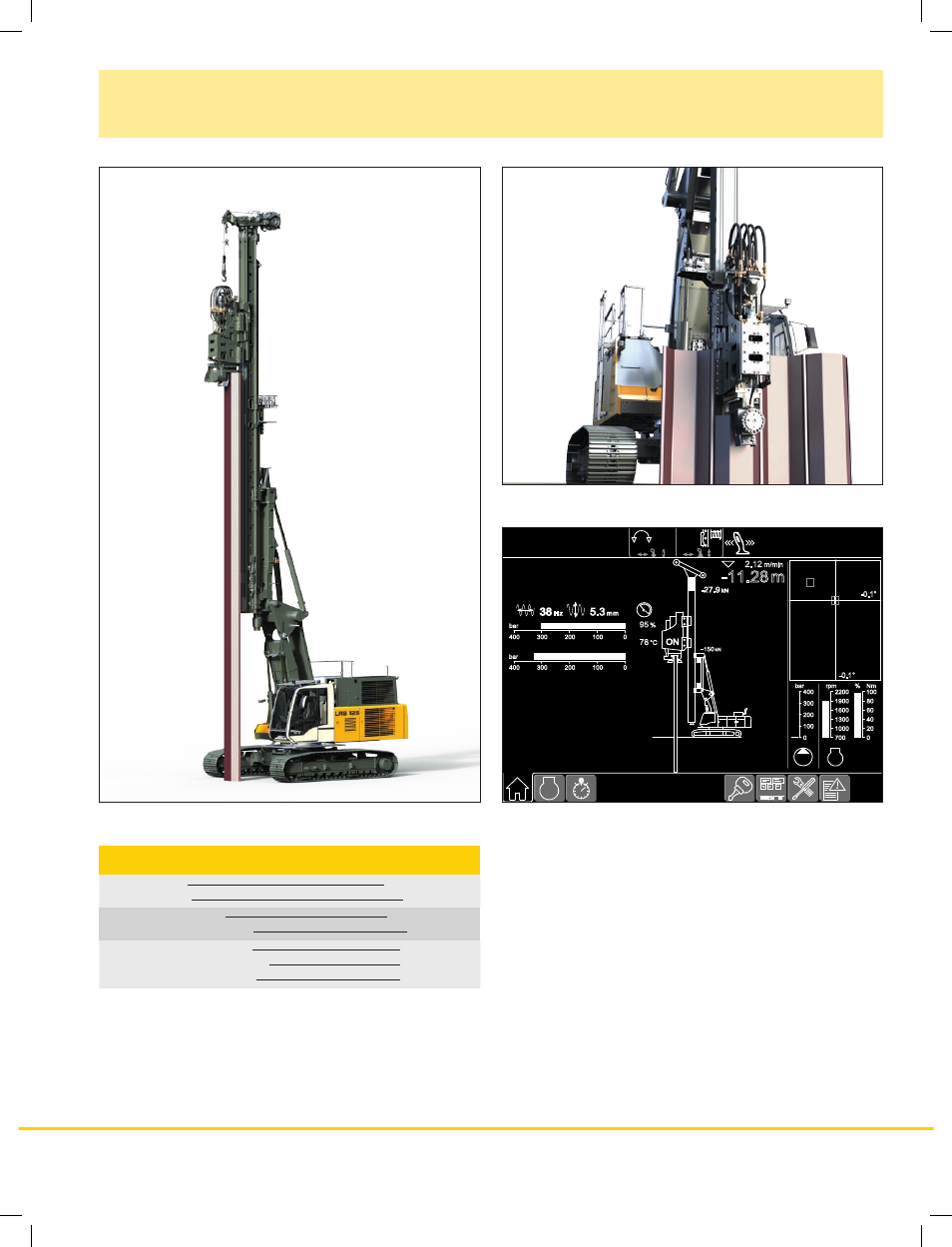

LRB 125 7
Vibrator slim design
Model 1100 H
Vibrating of a single pile between two other piles
Technical data
Static moment 0 – 1736 lbf-in
Max. frequency 2300 rpm
Max. centrifugal force 359,695 lbf
Max. amplitude with clamp 13.2 mm
Total weight without clamp 7,165 lbs
Total weight with single clamp 9,260 lbs
Dynamic weight with clamp 6,570 lbs
11 :16 2
MODE
700
1000
1300
1600
1900
2200
rpm
0
20
40
60
80
100
Nm %
-11.28 m
2.12 m/min
150 kN
-27.9 kN
0
100
200
300
400
bar
0 100 200 300 400
bar
0 100 200 300 400
bar
38 H z 5.3 m m
95 %
78 °C ON
-0.1°
° -0.1
Display for vibrating LRB 125 Effective length – 49.9 ft
LRB 125 XL Effective length – 56.4 ft
