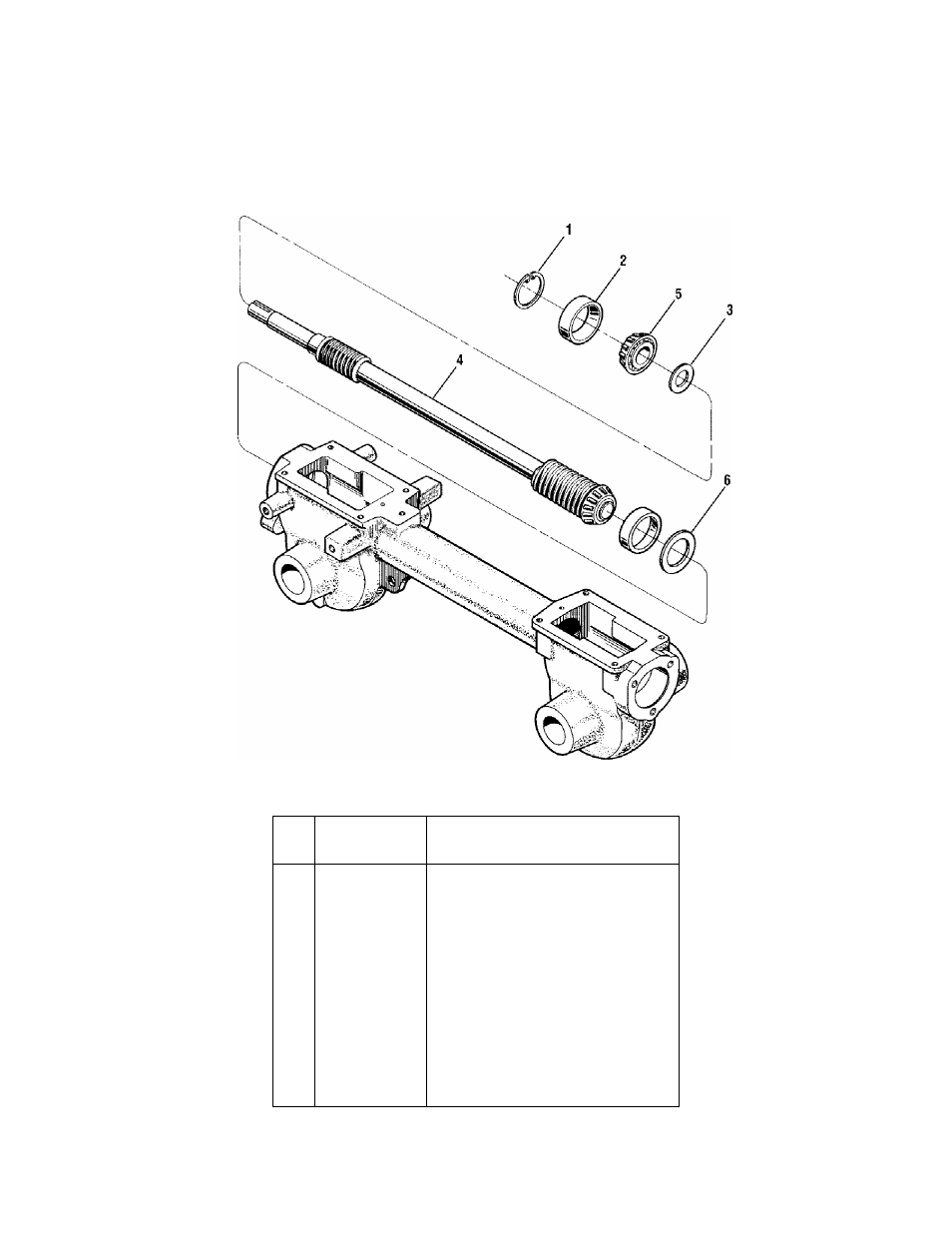

MODELS 630C & 634A
(A) For Model 630C
(B) For Model 634A
REF
NO.
PART NO.
DESCRIPTION
1
GW-9517
Snap Ring
2
GW-9400
Drive Shaft Bearing Cup
3
GW-50043
Support Washer, Rear
4
711-04109
Drive Shaft (B)
711-04110
Drive Shaft (A)
5
GW-9401
Drive Shaft Bearing Cone
6
GW-1224-1*
Shim, Rear Bearing Cap,,010" thick
GW-1224-2*
Shim, same as above, except.030" thick
GW-1224-3*
Shim, same as above, except.005" thick
GW-1224-4*
Shim, same as above, except,062" thick
—
GW-1325C
Shim Set (Inci. the foilowing shims;
two #1224-1, two 1224-2 & one #1224-4)
Use as required to obtain between.005” and.015” allowable end-play.
26
