User’s Manual

ENX-LX800


19

1.5.2

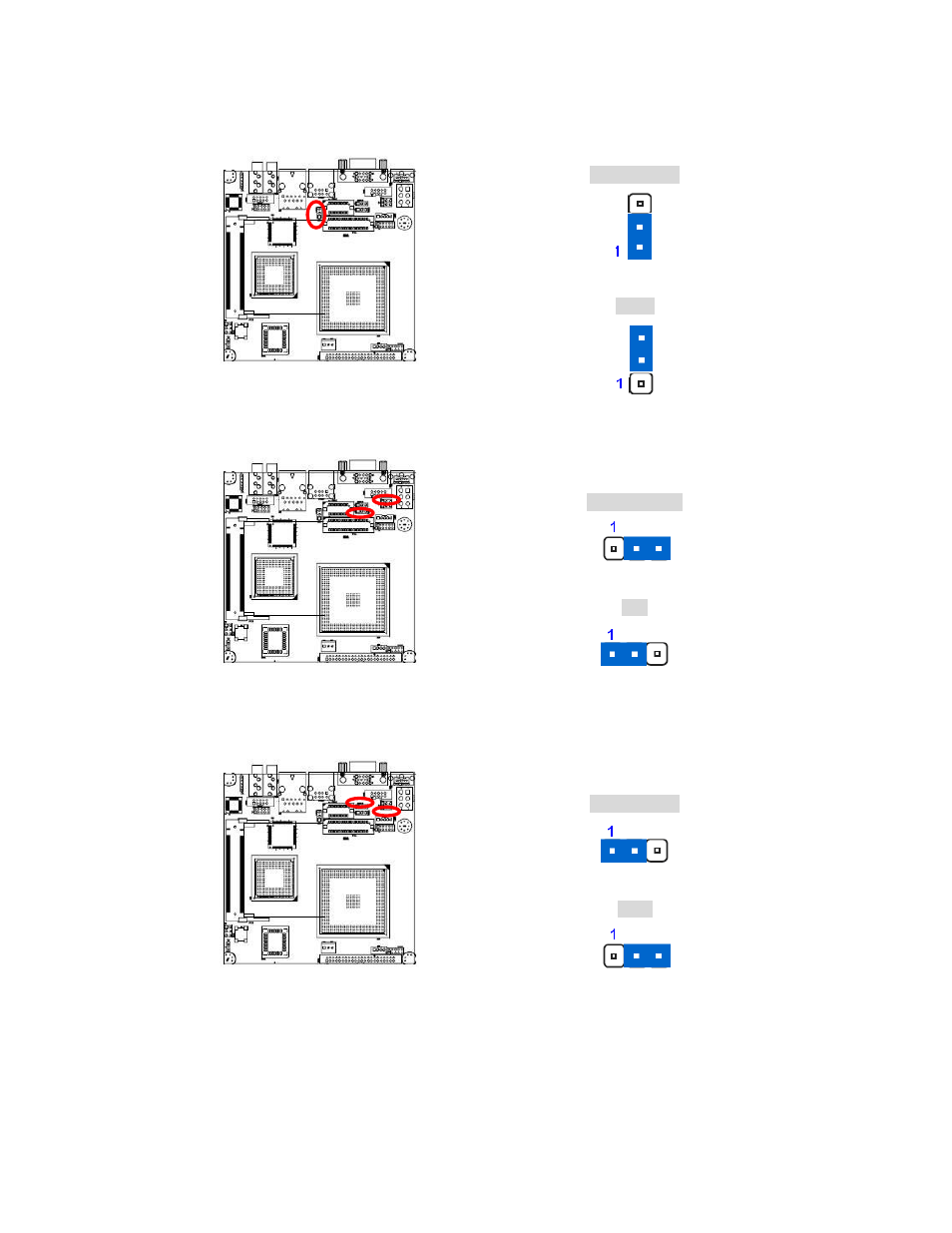

LCD Backlight Brightness Adjustment Connector (LCDPJ1)

+5V (Default)

+3.3V

1.5.3

COM1/COM2 RI/+5V Selection (COMAJ1, COMBJ1)

Ring (Default)

+5V

1.5.4

COM1/COM2 +5V/+12V Selection (COMAPJ1, COMBPJ1)

+5V (Default)

+12V
