Page 239
Front Turn Signal and Parking
Lamps
1. Open the hood. To access the bulbs, see
Headlamps on page 5-47.
2. Disconnect the wiring harness connector from the
headlamp assembly.
3. Turn the bulb holder counterclockwise and remove.
4. Lightly press the bulb and twist counterclockwise
out of the holder.
5. Insert the new bulb and install the bulb holder.
The bulb should be colored orange.
6. Connect the wiring harness connector.
7. See Headlamps on page 5-47 to replace bulb
assembly.
8. Check light operation.

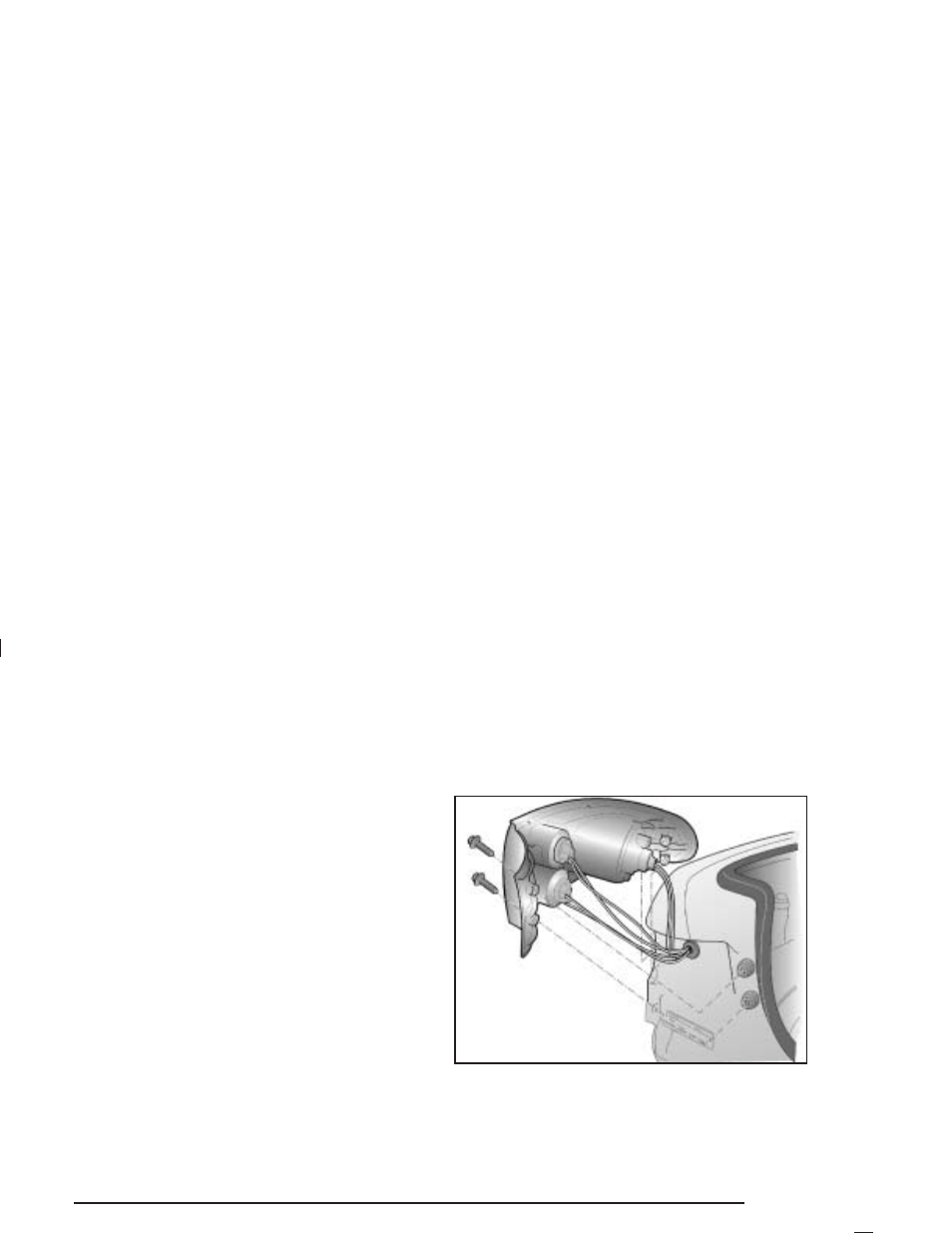

Rear Turn Signal, Stoplamps and
Back-Up Lamps
1. Open the trunk.
2. Remove the two screws that attach the taillamp
assembly to the vehicle.
3. Pull the assembly sideways out from the panel so
that the locating pegs on the side of the lamp
assembly snap free from the clips.
5-49
