INTRODUCTION
The Nexen EN50 Electro-Pneumatic Transducer
converts a 4–20 mA DC or 0–10VDC input signal to
a pneumatic output pressure. The output pressure is
linearly proportional to the input signal.
INSTALLATION
Mount the Nexen EN50 vertically, with electrical
connections above pneumatic ports, on a flat surface
using the two 10-32 tapped mounting holes located on
the Transducer or use the Mounting Plate to mount the
Transducer to a flat surface or to a 1 1 /
2
'' diameter pipe
(See Figure 1). Mounting EN50 on an incline will require
re-calibration. (See CALIBRATION AND ADJUSTMENT
SECTION).
NOTE: The Breakaway Tabs on the Mounting Plate
may be removed when the Mounting Plate is used
with pipe clamps (See Figure 1).

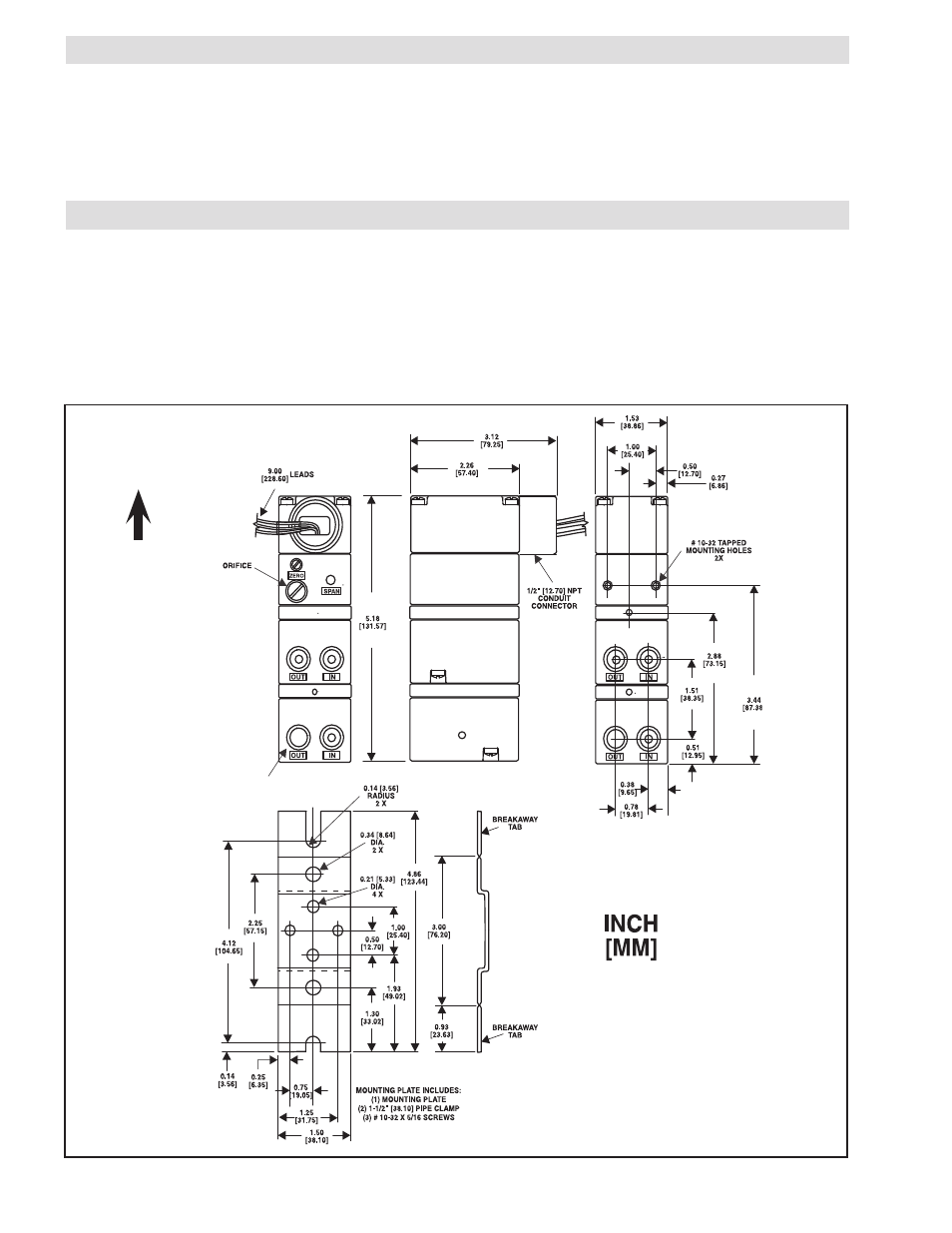

FIGURE 1
1/4 NPT Ports
UP
