Car care and technical information

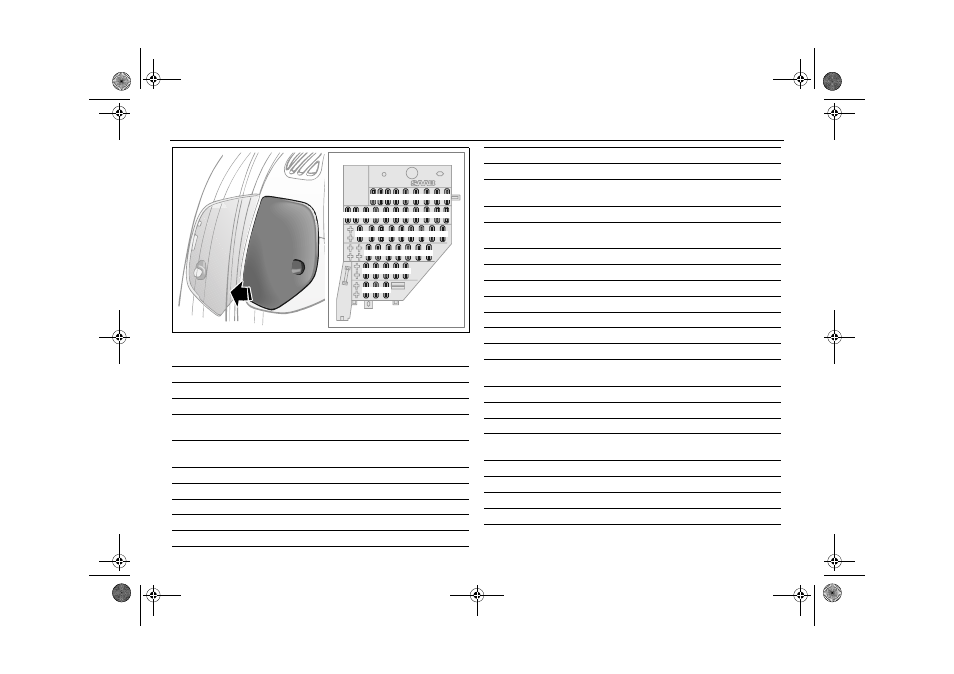

Fuse panel in instrument panel
# Amp
Function
A 30
Trailer
lights
B 10
Automatic
transmission
C
7.5 Electric door mirrors; DICE: manual beam length
adjustment 3
1
15
Brake lights; Park Brake Shift Lock (cars with auto-
matic transmission)
2
15
Reversing lights
3
10
Parking lights and taillights, left
4
10
Parking lights and taillights, right
5
7.5 DICE / TWICE
6
30
Electric windows, right; trailer charging
6B 7.5 Brake
lights,
trailer
7
10
Engine injectors
8
15
Trunk lighting; trunk lock; door lighting; parking
assistant 3; SID
9
15
Audio System; CD changer 3
10
15
Heating, rear seat 3; moonroof 3, remote control
receiver
11
30
Electrically adjusted passenger seat 3
12
7.5 Automatic transmission 3
13
20
Audio System, amplifier
14
30
Ignition system, engine
15
20
Fuel pump
16
20
DICE (direction indicators)
16B –
OnStar 3
17
20
Engine-management system; main instrument;
DICE/TWICE
18
40
Door-mirror heating; rear-window heating
19
10
OnStar 3; Telematics 3
20
15
ACC; interior lighting; rear fog light; high beam flasher
21
10
Audio System; rear-view mirror; load angle sensor 3;
navigation 3; Cruise Control 3
22
40
Interior fan
23
15
Central locking; navigation 3; door mirror memory 3
24
20
Main light switch
25
30
Electrically adjustable driver’s seat
IB2439
B C 1 2
3
4
5
6
A
14
12
11
10
9
8
7
13
6B
15 16
23 24
22
21
20
19
18
17
16B
25 26 27 28 29 30 31
