12-9
Specifications
– CONTINUED –

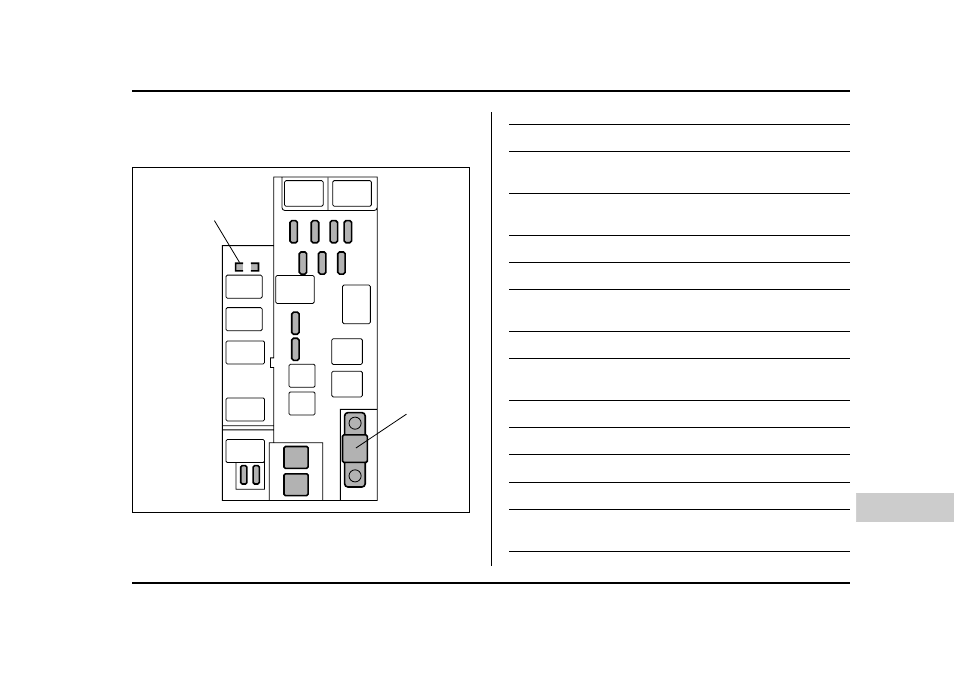

Fuse panel located in the engine com-
partment
A) FWD socket (AT models except Turbo)
B) Main fuse
C) Engine sensor (Non-turbo models)
A
1 2
3
C
B
4
5
6
7
8
9 10 11 12
UGC012BB
Fuse panel
Fuse rating
Circuit
1
20A
y
Radiator cooling fan
(Main)
2
20A
y
Radiator cooling fan
(Sub)
3
30A
y
ABS motor
4
20A
y
Rear window defogger
5
15A
y
Hazard warning flasher
y
Horn
6
15A
y
Turn signal lights
7
10A
y
Automatic transmis-
sion control unit
8
10A
y
Alternator
9
15A
y
Headlight (right side)
10
15A
y
Headlight (left side)
11
20A
y
Lighting switch
12
20A
y
Clock
y
Interior light
