PANEL DESCRIPTION
PANEL DESCRIPTION

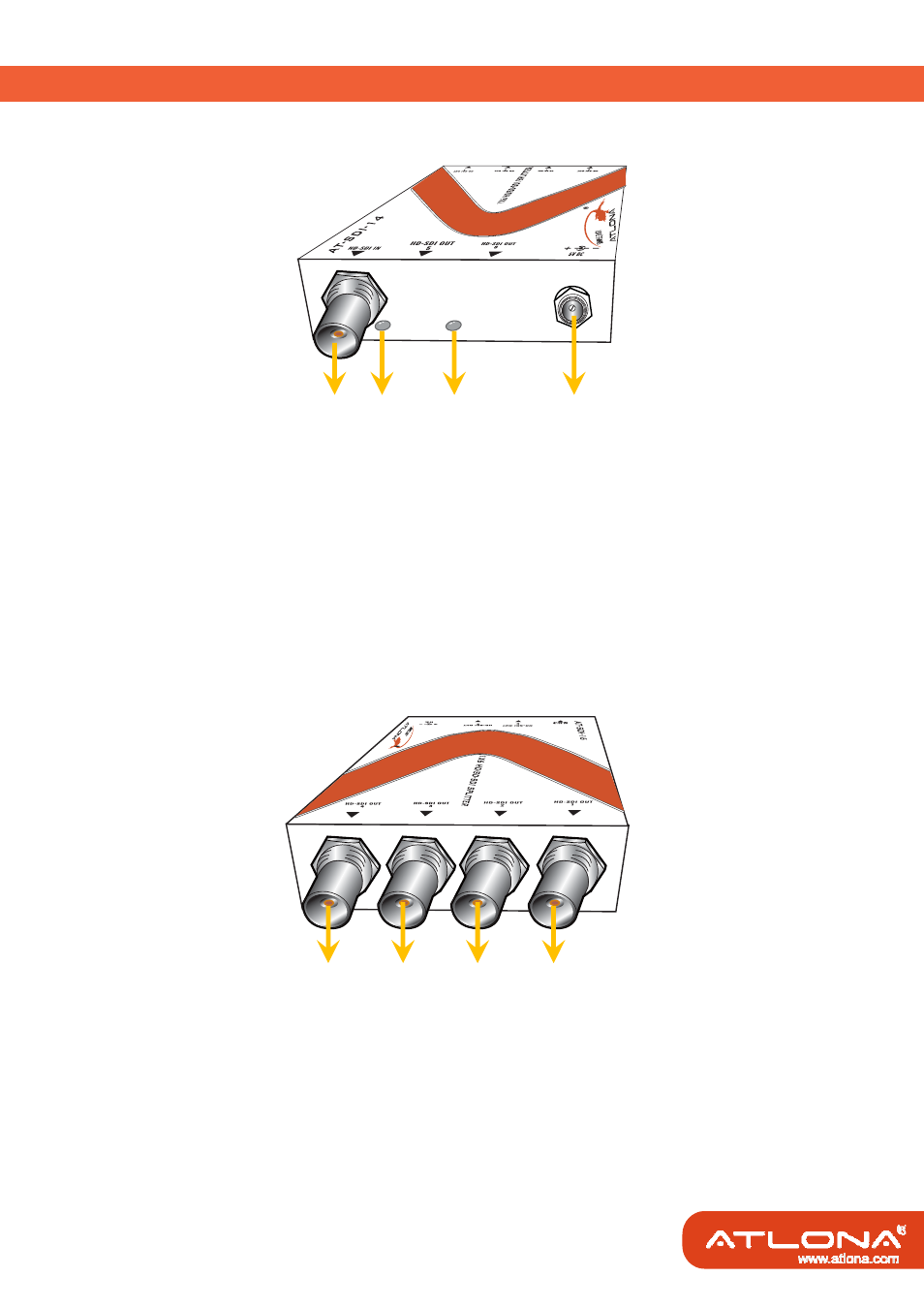

AT-SDI-14 [Front Panel]
1. SDI / HD-SDI input
2. Reserved, not in use for this model.
3. Power on/off indicator
4. +5V DC power jack
AT-SDI-14 [Rear Panel]
5. HD/SD-SDI output 1
6. HD/SD-SDI output 2
7. HD/SD-SDI output 3
8. HD/SD-SDI output 4
