5

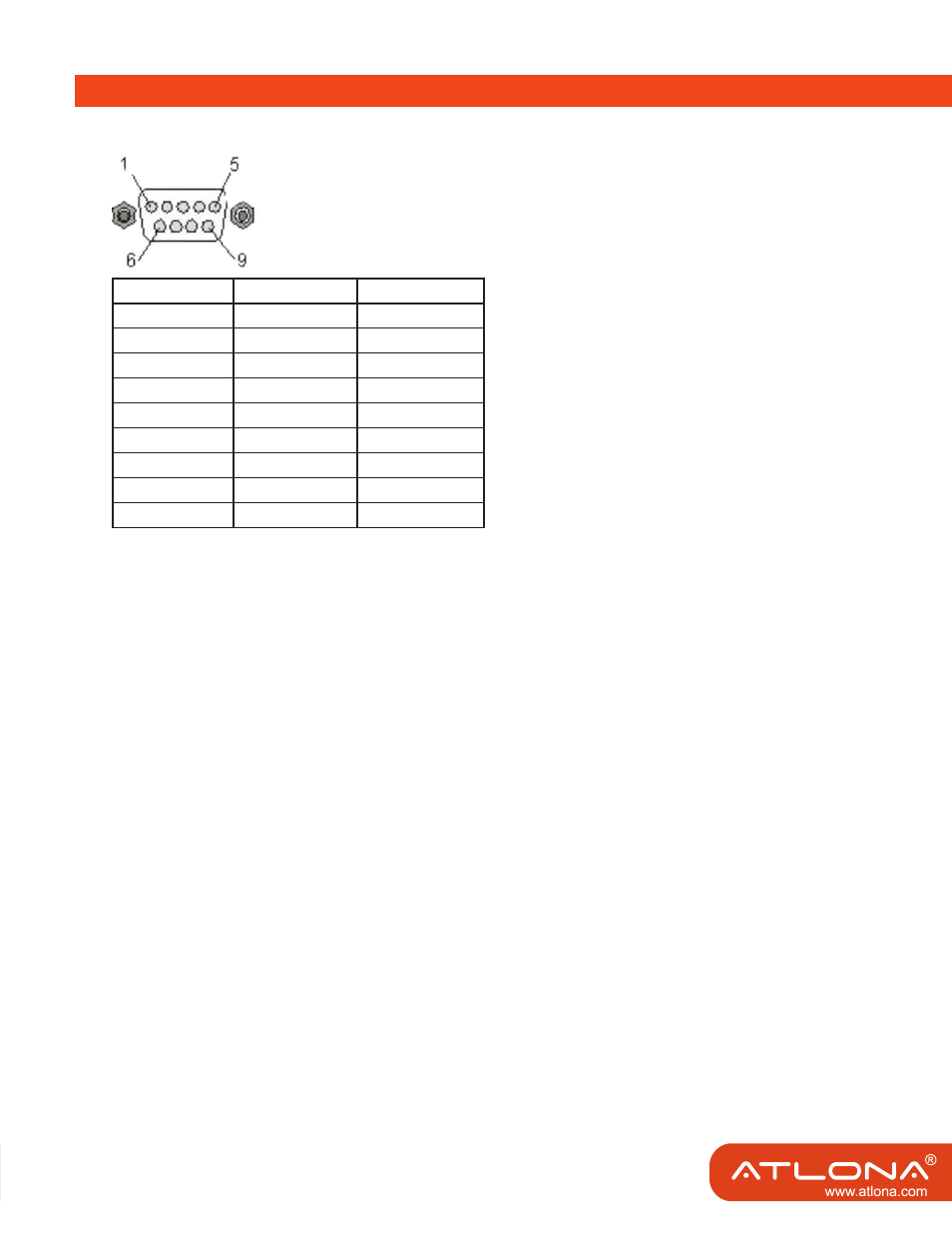

RS-232 SERIAL INTERFACE
RS-232 SERIAL INTERFACE CONNECT a PC or CONTROL SYSTEM
Pin RS-232 Definition
1 - Not used
2 TX Transmitter
3 RX Receiver
4 - Not used
5 GND Ground
6 - Not used
7 - Not used
8 - Not used
9 - Not used
RS-232
Atlona Technologies’ switcher can be controlled via the RS-232 serial control port to allow for
interfacing to a PC, The serial communication parameters are 9600 baud, 8 bit, No Parity and 1
stop bit - this is often referred to as 9600 8N1.
When the unit recognizes a complete command it will perform the requested action - there is no
delimiter character required. The unit does not send out a message when a value is changed
from the front panel or by IR control. If the unit needs to be controlled via the front panel in addi-
tion to the RS232 control, you should regularly poll the unit status to ensure the control system
accurately reflects the current settings or similar third party control system.
COMMANDS
To Switch Inputs to Outputs
SBI0XO0Y- Where X is Output Number (1-4) and Y is Input Number (1-2)
Unit will respond with
SBUD0XOY- Where X is Output Number (1-4) and Y is Input Number (1-2)
Example : Send Input 2 to Output 3
SBI02O03-Send
SBUD02O3-Rcvd
4
