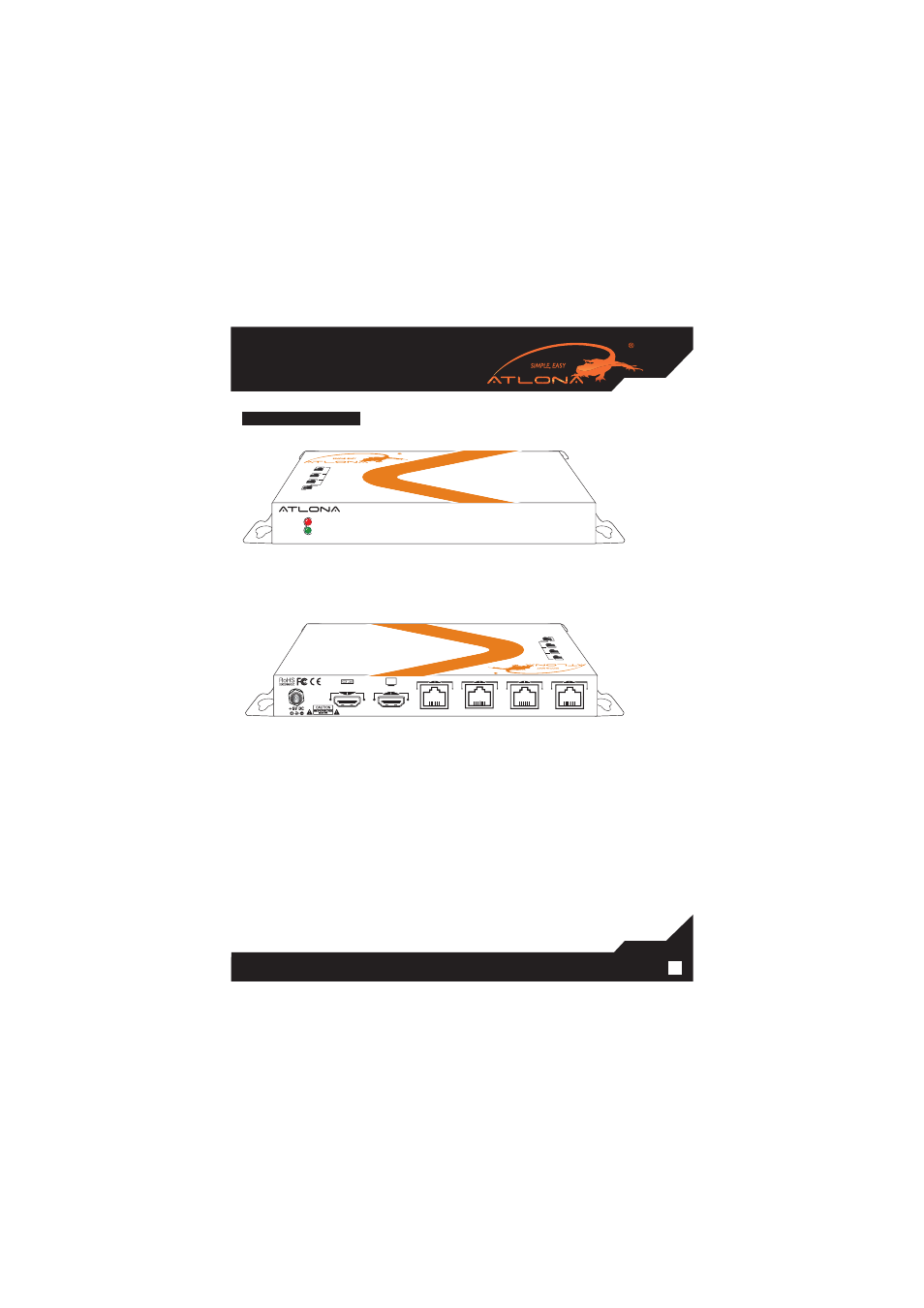

PANEL DESCRIPTIONS:
5.1. Front Panel
AT-HD-V14SS
1x4 HDMI v1.3 Distribution Amplifier
with CAT5/6 Outs and 1 x Local HDMI Out
EDID LEARNING
1080p 1080i 720p
Multi-CH Bitstream 2-CH
3D 2D
Default EDID
POWER
SIGNAL AT-HD-V14SS
POWER: bright - power on; dark - power off.
SIGNAL: bright - HDMI
TM source signal is detected; dark - no HDMI TM signal.
5.2. Rear Panel
A T - H D - V 1 4 S S
1x4 HDMI v1.3 Distribution Amplifier with CAT5/6 Outs and 1 x Local HDMI Out
EDID LEARNING
1080p 1080i 720p
Multi-CH Bitstream 2-CH
3D 2D
Default EDID
HDMI INPUT HDMI OUTPUT
CAT5/6/7 OUTPUT 1 CAT5/6/7 OUTPUT 2 CAT5/6/7 OUTPUT 3 CAT5/6/7 OUTPUT 4
+5V DC: Connect to 5V DC power supply unit
HDMI INPUT: Connect to one HDMI
TM source device
HDMI OUTPUT: Connect to one HDMI TM display or cascade to AT-HD14SS, AT-HD19SS, AT-HD50SS or AT-HD-
V14SS
CAT5/6/7 OUTPUT 1 - 4: Link to each HDMI TM display via a CAT5/6 cable with a Receiver Unit AT-HDRS or AT-
HD15SRS
