Ensure the mains voltage supply matches the label on the supplied plug-Pack (+/- 10%)
Ensure that the power switch is OFF.
Connect all audio video sources and destination equipment.
Power up all HD Source and Displays.
For each desired output select the appropriate input by using the front panel select but-
tons or IR remote control .
When powering up the AT-HD-V116 will return to its last used setting before Powered
down.

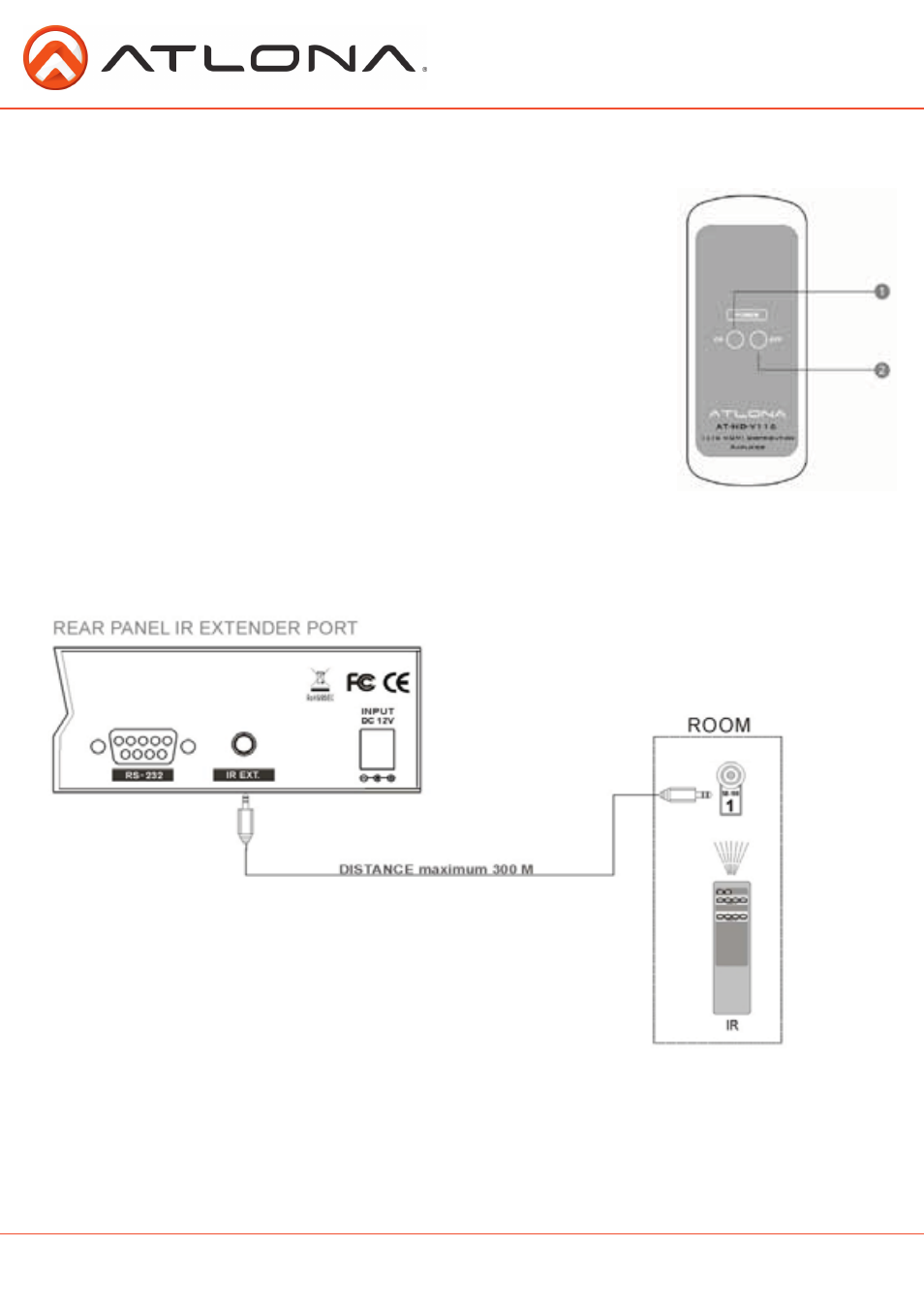

1,2. SWITCH POWER ON OR OFF
1. IR Extender Connection
REMOTE CONTROL
IR EXTENDER
atlona.com
Toll free: 1-877-536-3976
Local: 1-408-962-0515
