Hardware Installation
Contact Information
1. If your HDMI / DVI device requires an EDID at present, you can use an
EDID Reader/Writer to provide HDMI / DVI EDID information.

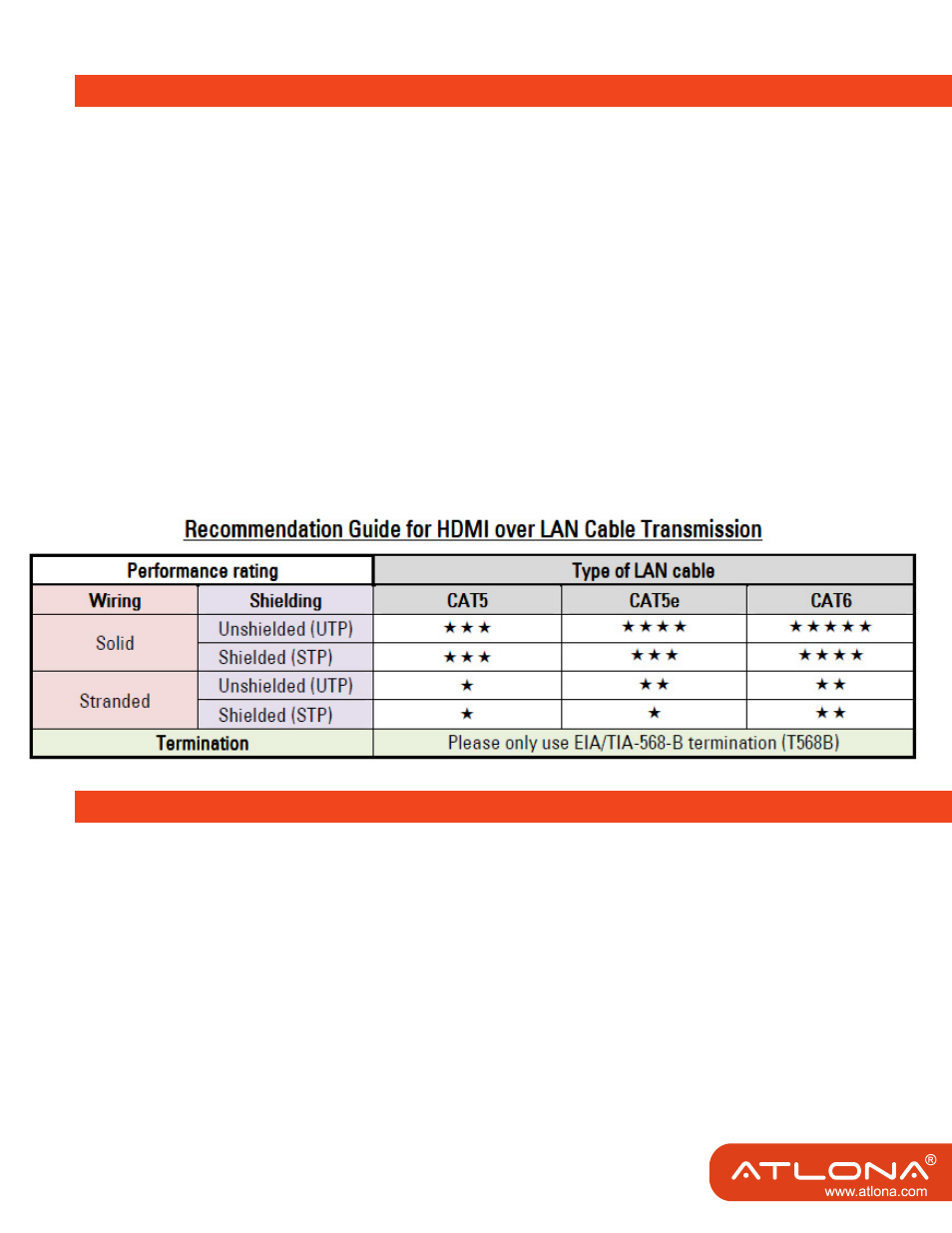

2. All the transmission distances are measured using Belden CAT-5e
125MHz.
3. To reduce the interference among the unshielded twisted pairs of wires in
CAT-5/5e/6 cable, you can use shielded CAT-5/5e/6 cables to improve EMI
problems, which is worsen in the long transmission.
4. Because the quality of the CAT-5/5e/6 cables has the major effects in
how long transmission distance will be made and how good is the received
display, the actual transmission length is subject to your CAT-5/5e/6 cables.
For resolution greater than 1080i or 1280x1024, a CAT-6 cable is recom-
mended.
Atlona
Address 2151 O’Toole Ave Unit D, San Jose, CA 95131
Phone
Toll Free (US & Canada only): 1-877-536-3976
Contact phone: 1-408-954-8782
Fax 1-408-954-8792
Email [email protected]
