RS 232

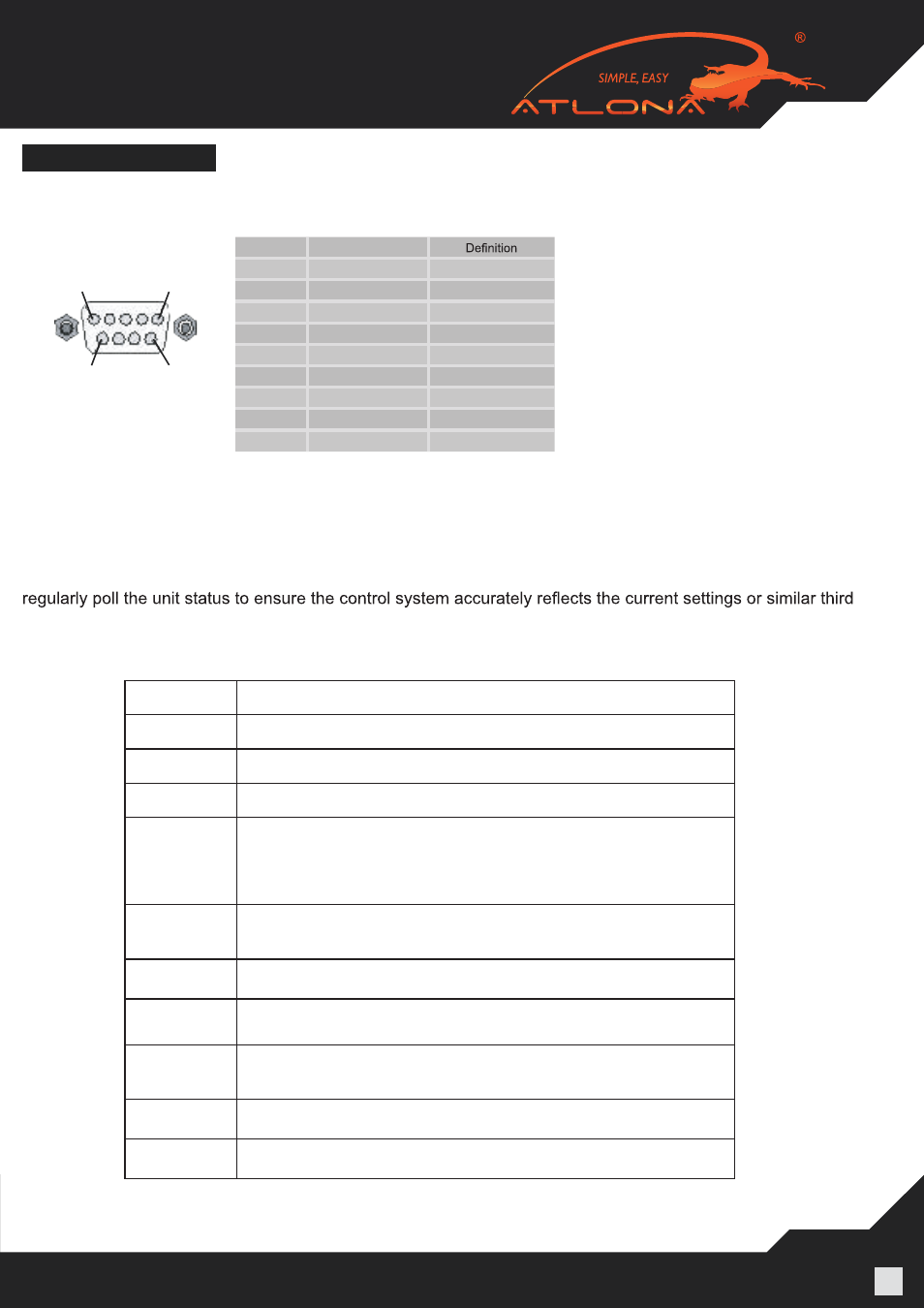

1. RS-232 Serial Interface
Pin
RS-232
1
-
Not used
2
Tx
Transmitter
3
Rx
Receiver
4
-
Not used
5
GND
Ground
6
-
Not used
7
-
Not used
8
-
Not used
9
-
Not used
2. RS-232
The Atlona
switcher can be controlled via the RS-232 serial control port to allow PC or 3rd party control system.
The serial communication parameters are 9600 baud, 8 bit, no parity and 1 stop bit, often referred
to as 9600 8N1.
The unit does not send out a message when a value is changed from the front panel or
by IR control. If the unit needs to be controlled via the front panel in addition to the RS232 control you should
party control system.
1
5
6
9
PWON Power ON
PWOFF
Power OFF
All#
Mirror all input signals to matching output channels.
x1$
Switch off output channel [x1].
x1AVx2
Transfer the audio video signal from input channel [x1] to
output channel [x2]. Example: input 5 needs to be sent to output
6, the command would be x5AVx6
x1AVx2,x3,x4 Transfer the audio and video signals from input channel [x1] to
output channels [x2], [x3] and [x4].
Statusx1
Displays input status associated to output [x1].
Status
Displays all input and output associations for all channels.
Save[Y]
Save the current status to a preset command [Y]. [Y] ranges from
0 to 9.
Recall[Y]
Recall the preset command [Y].
Clear[Y]
Clear the preset command [Y].
Note: Code entry is CASE SENSITIVE. Do not insert spaces between
letter/number code entries.
