Rev. 1.03 - 20 -
SPP-R200II

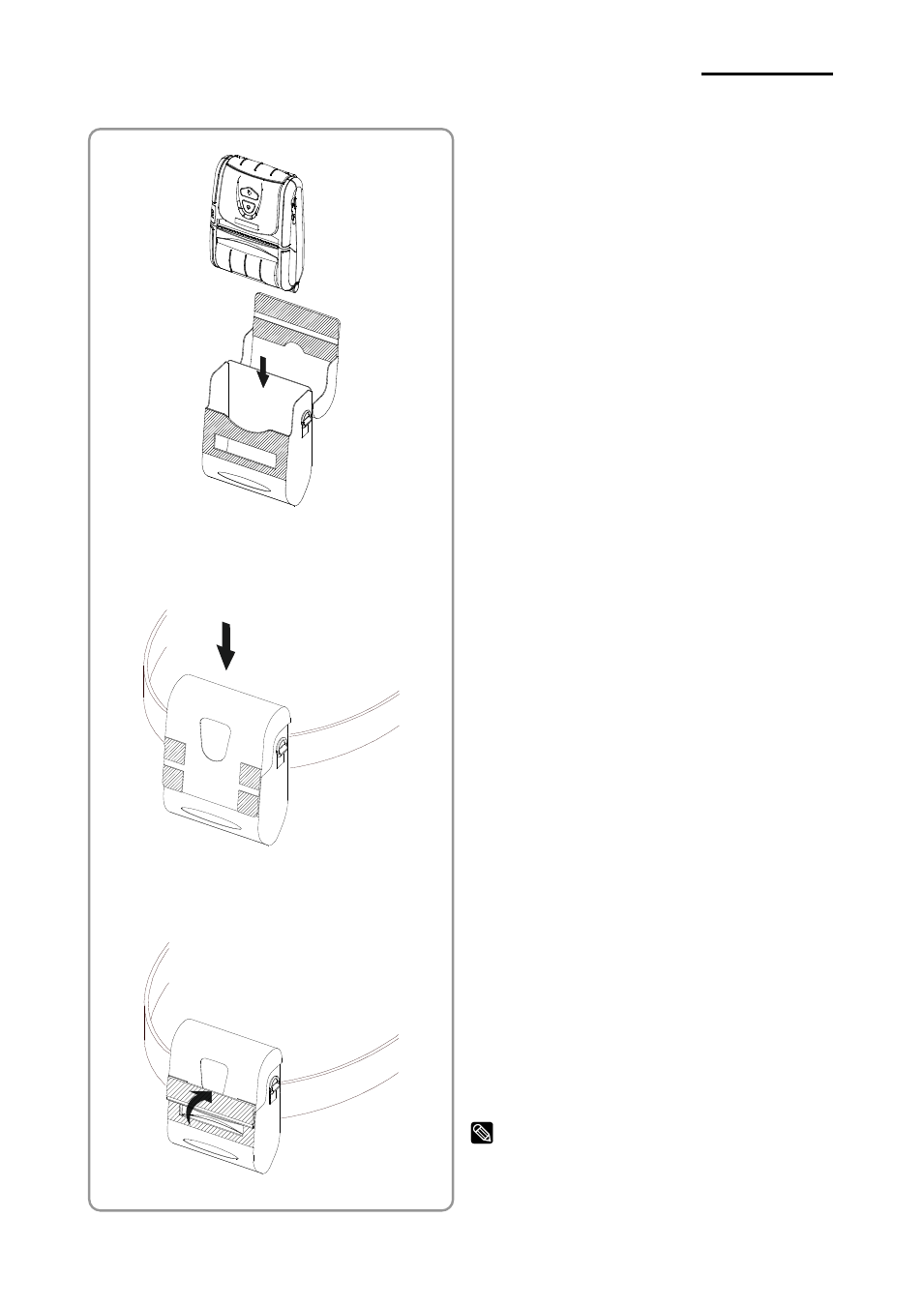

3-7 Using Protective Case (Optional)
1) Open its top cover.
2) Insert your printer into the protective case
as shown in the figure on the left.
3) Close the Velcro.
4) Attach it to the belt using the clip on the
back of the protective case.
5) Open the paper discharger when using
the printer as shown in the figure.
Note
The clip of the protective case can be rotated in
two steps of 30° for each step (up to 60°)
Belt
Belt
