LE-37E
User’s Manual
-10-

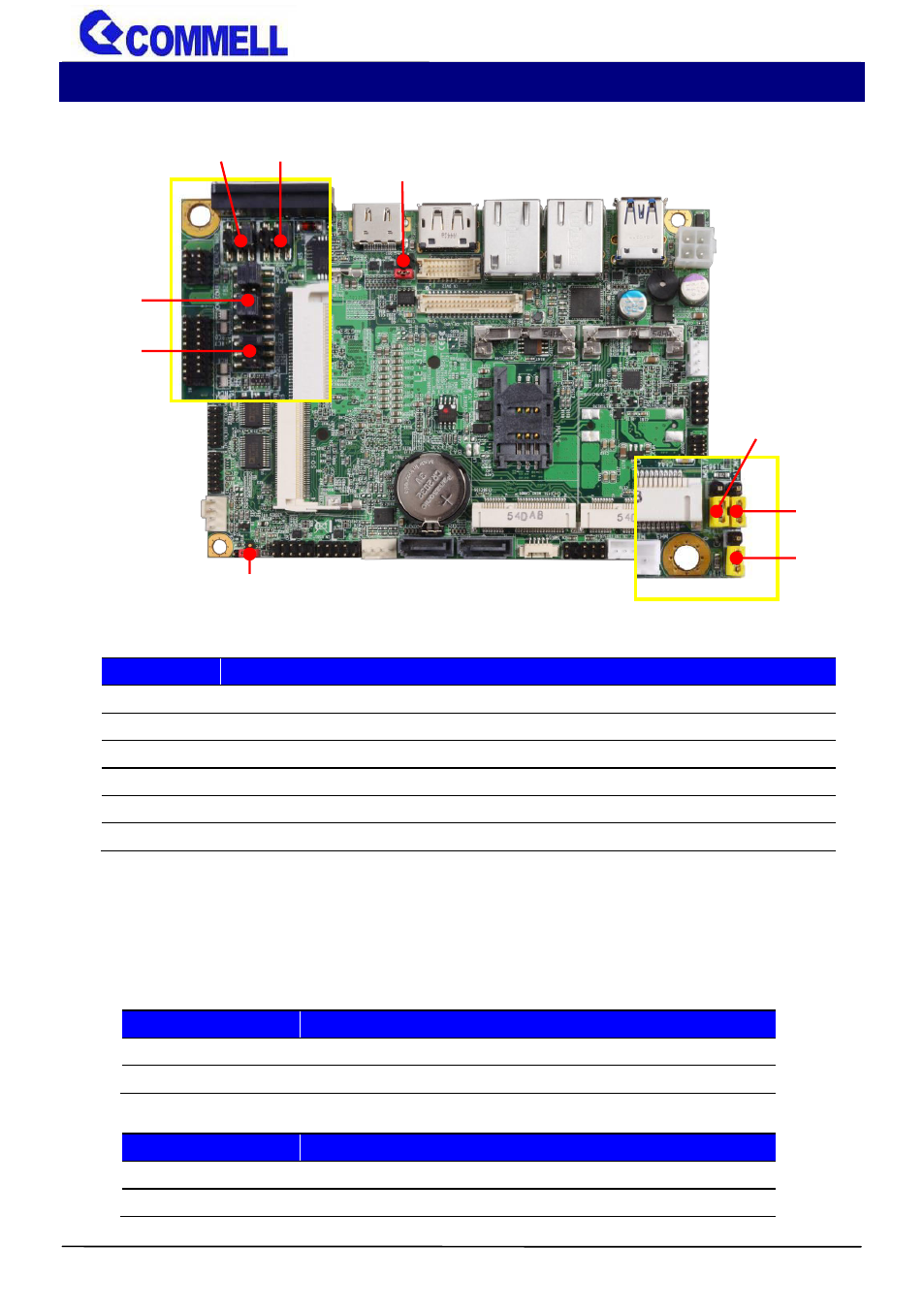

2.2 <Jumper Location and Reference>
2.2.1 <Jumper list>
Jumper Function
JAT Power mode select
JRTC CMOS Normal/Clear Setting
JVLCD Panel Voltage Setting
JMSATA1/2 MiniCard1/2 mSATA Setting
JCSEL1/2 CN_COM2 RS232/422/485 select
JP1/2 COM1 and CN_COM2 9-pin setting
2.2.2 <Clear CMOS and Power on type selection>
JRTC: Clear CMOS data jumper
Jumper settings Function
1-2 Clear CMOS
2-3 Normal (Default)
JAT: AT/ATX mode select jumper
Jumper settings Function
1-2 AT mode
2-3 ATX mode (Default)
JRTC
JVLCD
JMSATA2
JAT
JMSATA1
JP2 JP1
JCSEL1
JCSEL2
