LP-172 User’s Manual
- 20 -

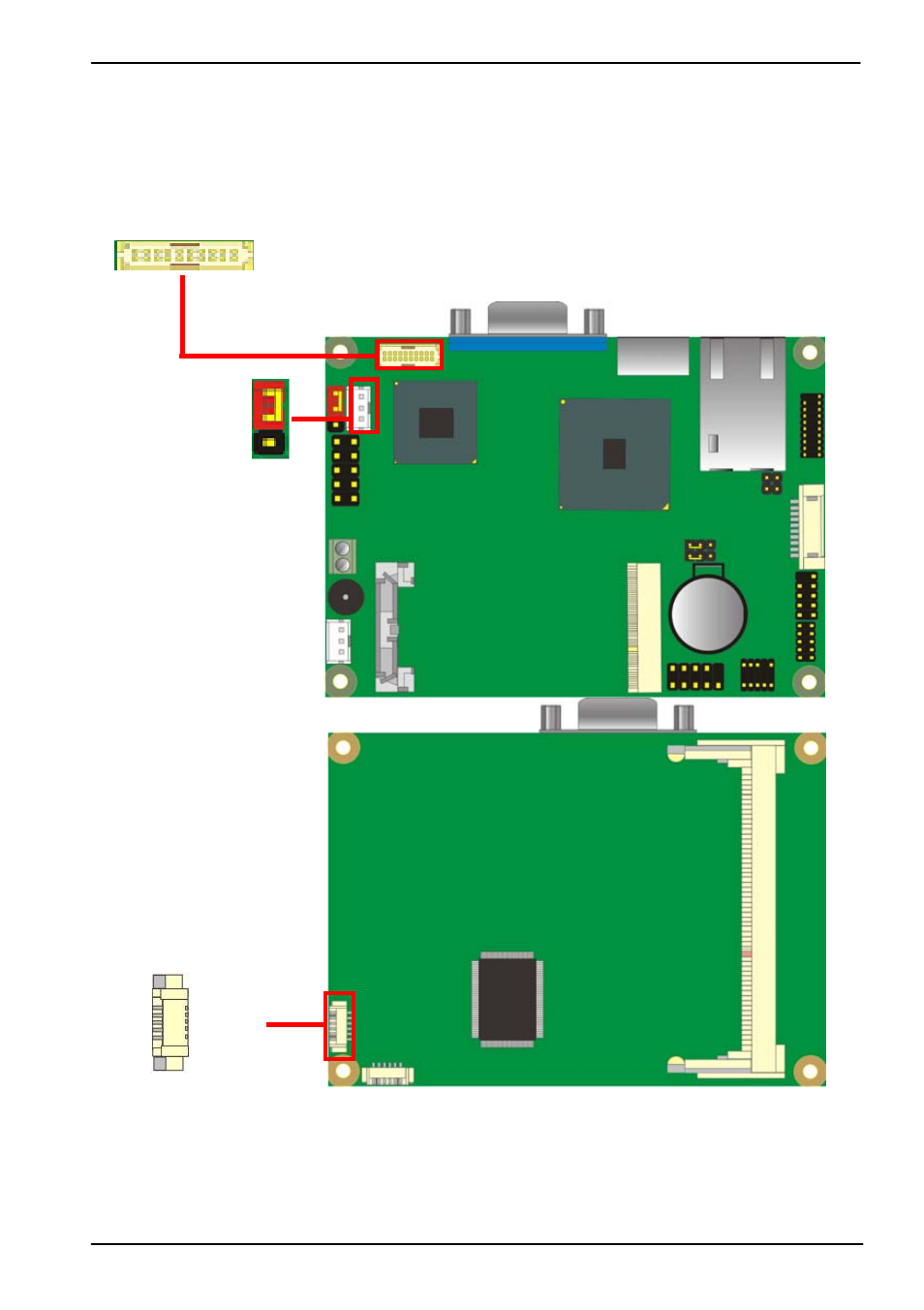

2.8.2 <CN_LVDS>
The board provides one 20-pin LVDS connector for 18 bit or 24bit single channel panel,
with one LCD backlight inverter connector and one jumper for panel voltage setting.
1
5
CN_INV
1 19
2 20
CN_LVDS
JVLCD
3
1
