3.2. Dimmer PED108 ..............................................................................
3.2.1. Overview
PED108 is a one-channel dimmer for
resistive and inductive loads up to 8 A.
The unit features PEbus and contact
closure control. Programmable
parameters (input response, min. and
max. value of output voltage, dimming
speed, output characteristic). Indication
of output level by yellow OUT LED,
max. temperature overload and over-
current fuse by red F/O LED. Indication
of power by green P/D LED. This LED
is flashing while data is being
transmitted or received through the
PEbus.

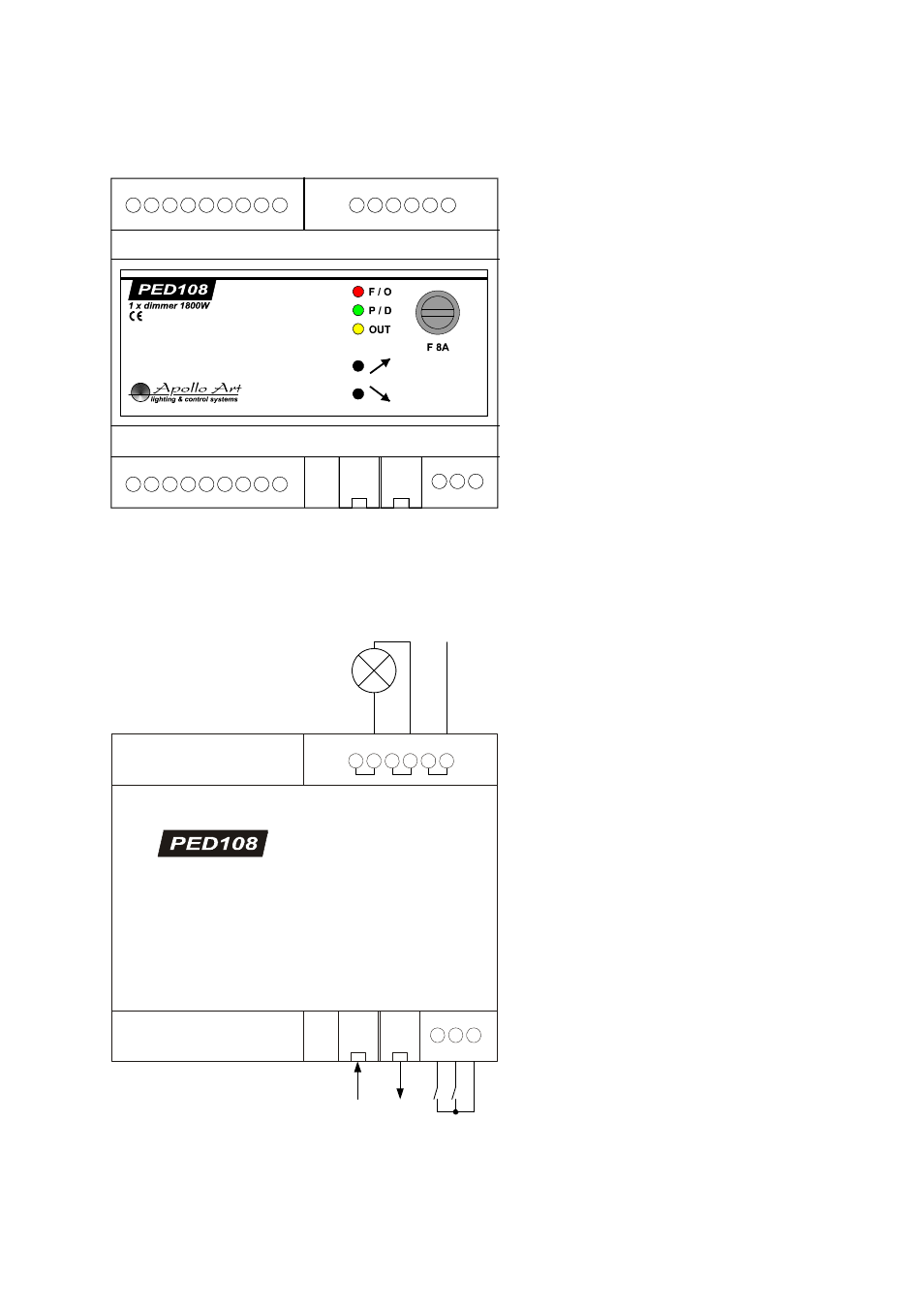

3.2.2. Connections
PEbus
OU
T
OU
T
N
E
UT
RA
L
N
E
UT
RA
L
LI
VE
LI
VE
DO
WN
UP GN
D
LOAD
max. 8 A
N L
