2.1. Product description
The 8S loudspeaker is a full range, two-way bass-reflex enclosure,
utilizing an 8"/1" coaxial driver combination with a passive
crossover. Coaxially mounting the 1" HF compression driver and
8" LF driver using a single magnet assembly creates a very
compact driver with 100° constant directivity HF dispersion.
With a frequency response extending from 70 Hz to 20 kHz, the
cabinet can be used as a full range system or supplemented by
different subwoofers of the xS- or xA-Series.
The enclosure is constructed from marine plywood with an impact
resistant black paint finish. The front of the loudspeaker cabinet is
protected by a rigid metal grill backed by an acoustically
transparent foam
The 8S rear panel incorporates two M8 threaded inserts to accept
the Z5402 Wall mount M, the Z5403 Wall mount L or the Z5404
Flying bracket 8S. The top and bottom panels are each equipped
with an M8 thread to accept the Z5408 Horizontal bracket 8S.
The threads are covered by dummy caps in cabinet color. The caps
must be removed before mounting any accessories.
Cabinet options
The weather resistant version (WR) is suitable for outdoor use
(IP34, vertical aiming up to +15°). The cabinets have an impact
and weather protected black PCP (Polyurea Cabinet Protection)
finish.
2.2. Connections
The cabinet is fitted with a pair of NL4 connectors and a two pole
screw terminal block (ST - cross-section up to 4 mm
2 /AWG 11). All
four pins of both NL4 connectors are wired in parallel. The cabinet
uses the pin assignments 1+/1–. Pins 2+/2– are designated to
active subwoofers.
Cabinets with the weather resistant option (WR) are equipped with
a fixed input cable (PG type, H07-RN-F, 2 x 2.5 mm
2 (AWG 13),
standard length 5.5 m (18 ft).
Pin equivalents of the applicable connector options are listed in the
table below.
NL4 1+ 1– 2+ 2–
ST + – n.a. n.a.
PG Brown (+) Blue (–) n.a. n.a.

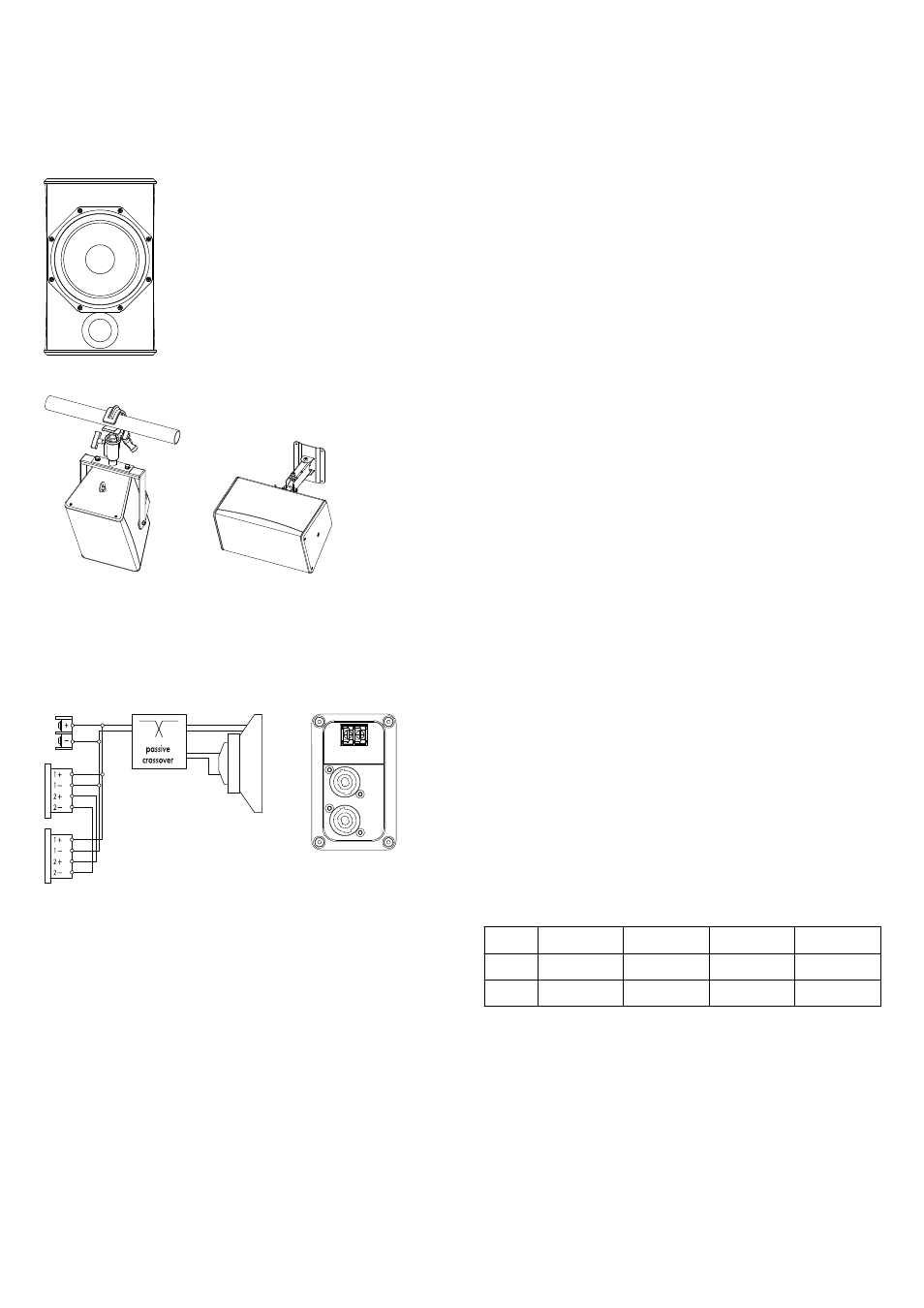

Fig. 1: 8S loudspeaker
Rigging examples:
8S with Z5404 Flying bracket, Z5010 TV spigot
and Z5012 Pipe clamp.
8S with Z5403 Wall mount L.
Fig. 2: Connector wiring
2. 8S loudspeaker
