ET8181/ET161161 Series
Rack Mount 8/16-port 10/100Base-TX to 8/16-port 100Base-FX SFP Media Converter
2
V1.3

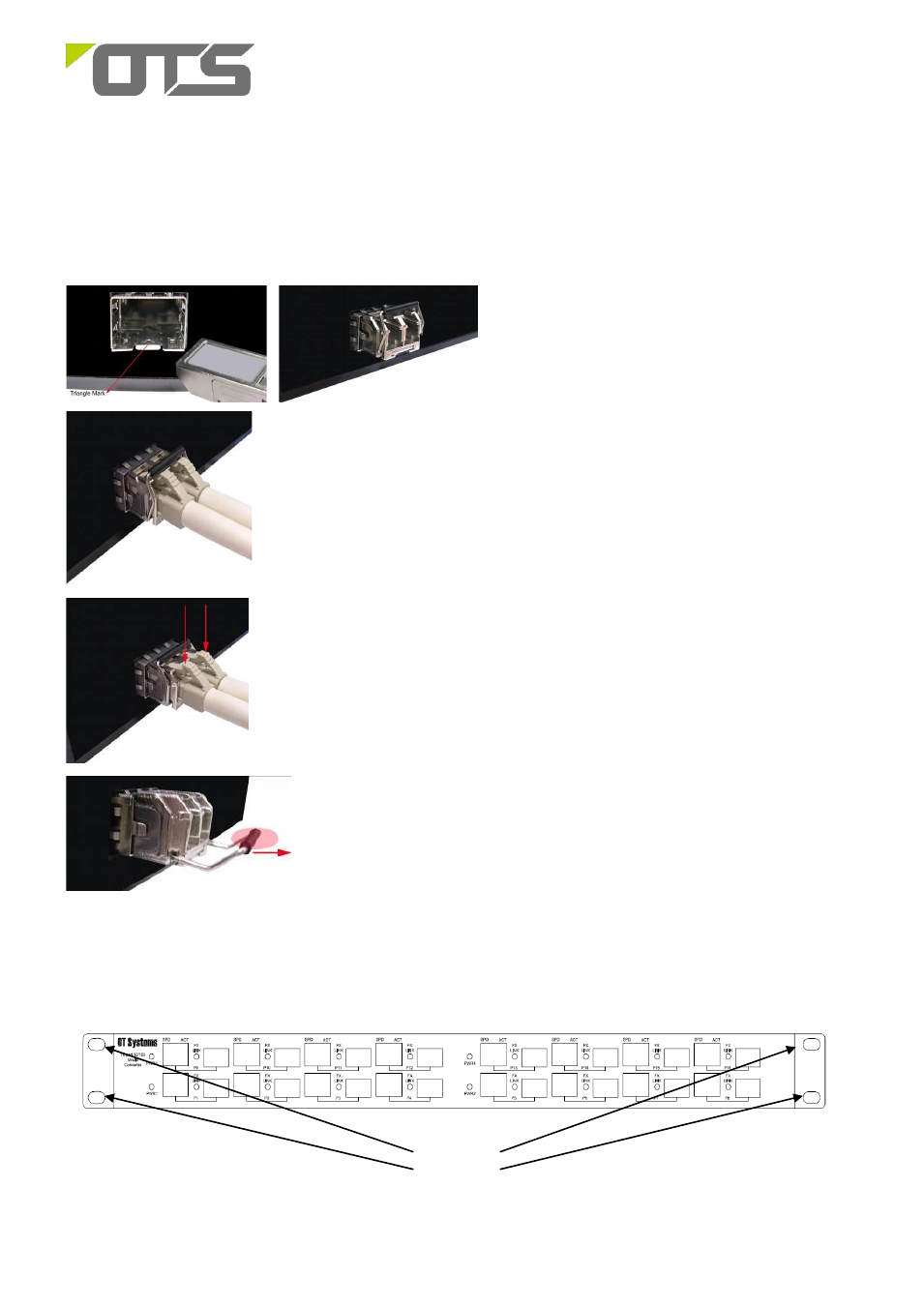

Installation
SFP Transceiver Module
You can select different SFP modules as required (Please refer to our SFP selection list for the appropriate module).
To insert/remove the SFP, the procedures are as follow:
1. On the side panel, insert the SFP module into the
SFP port until it is securely locked.
2. Connect the optical fiber (1/2 core) to the LC
connector(s) of the SFP.
3. To remove the SFP module, press down the lock
of the LC connector of the optical fiber to pull out
the fiber cable.
4. Pull down the SFP lever and hold its position. Pull
out the SFP module from the SFP port.
Rack Installation
ET8181-S and ET161161-S can be installed on a rack. The product has 4 mounting holes. Use 4 rack mount screws
to securely install the product in a 19
” rack cabinet.
Mounting
Holes
