8. CHARGE AIR COOLER INSTALLATION cont’d
27. Attach the 3/4" hose previously installed to
the straight 1/2"NPT x 3/4" barb at the bottom
of the surge tank reservoir. Secure with a
nylon clamp. (See Fig. 8C-p.)

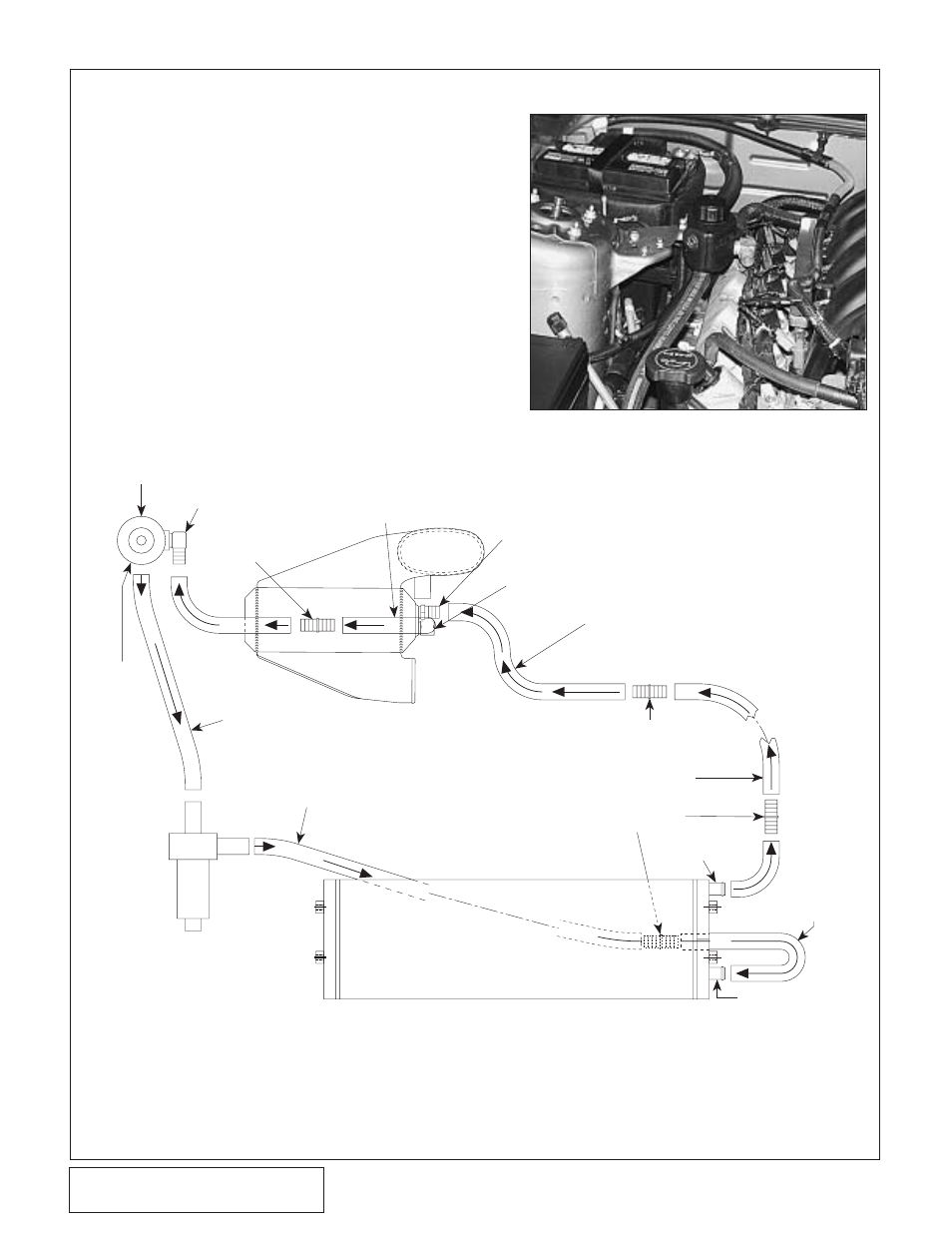

Fig. 8B-p
Fig. 8B-q
3/4" (7U038-000)
CUT TO FIT
(APPROX. 24")
3/4" HOSE (7U038-000)
CUT TO FIT
(APPROX. 48")
1/2"NPT TO
3/4" HOSE
BARB
(7P500-078)
3/4" HOSE (7U038-000)
CUT TO FIT
(APPROX. 24")
TOP PORT
ON COOLER
WATER COOLER
3/4" HOSE UNION
BARBED 7P375-075
3/4" HOSE UNION
BARBED 7P375-075
BOTTOM PORT
ON COOLER
3/4" x 150 ° MOLDED
HOSE (7U038-150)
“S” SHAPED HOSE
(7U375-075)
90 ° x 1/2"NPT TO 3/4"
HOSE BARB
(7P500-026)
1/2"NPT TO 3/4"
HOSE BARB
(7P500-078)
(7U038-012)
3/4" x 4" x 12"
FORMED HOSE
3/4" HOSE UNION
BARBED (7P375-075)
90 ° x 1/2"NPT TO 3/4"
HOSE BARB
(7P500-026)
SURGE TANK
(8N156-050)
B. WATER COOLER ASSEMBLY
INSTALLATION, cont’d
