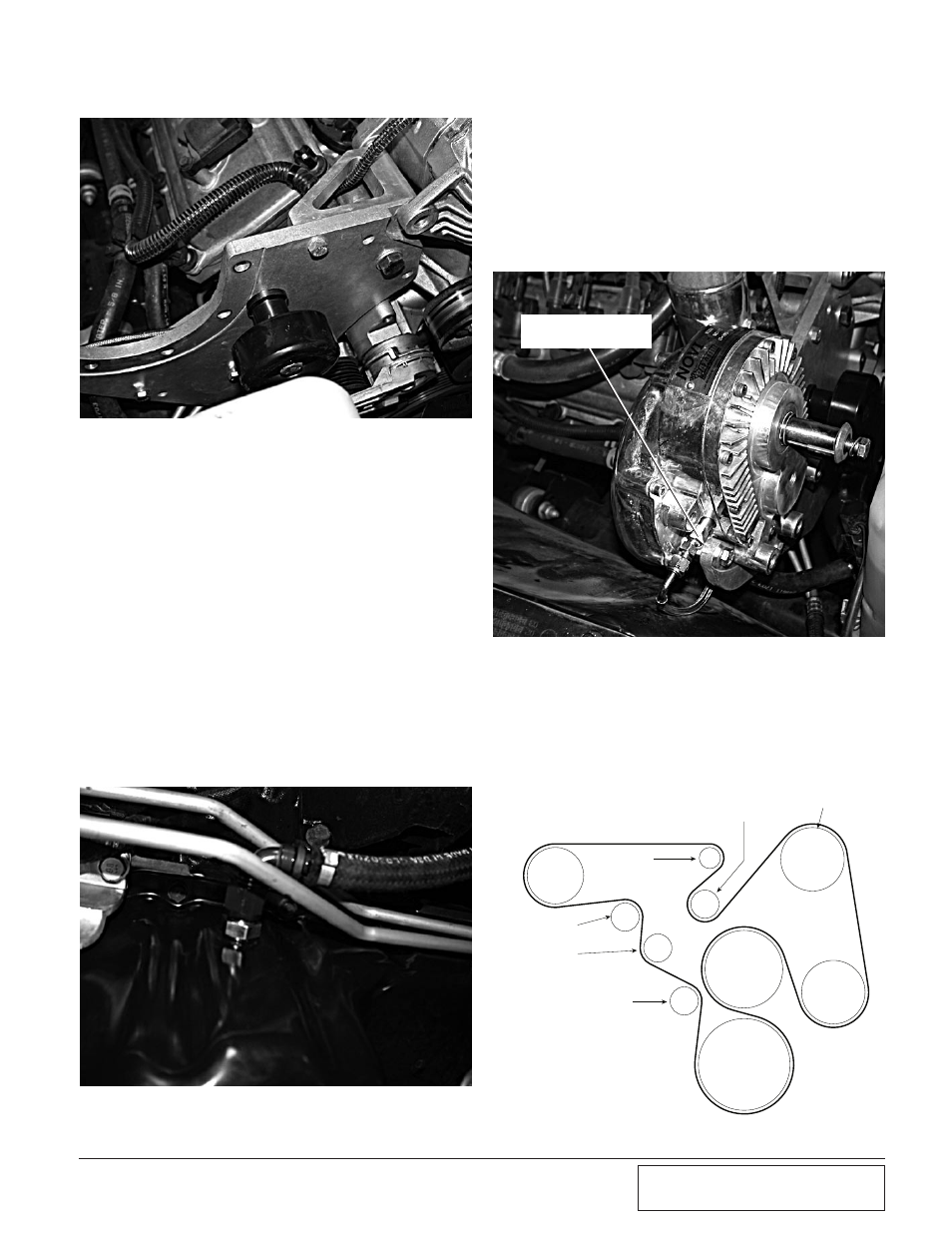

Fig. 6-f
N. Attach the supplied 1/2" supercharger oil
drain line and supplied hose clamp to the
3/8" NPT barbed fitting on the supercharger,
tighten the hose clamp. Lower the super-
charger into place and secure using the five
supplied 3/8" x 24 x 1.25" long bolts and
washers.
O. Tighten all mounting hardware. Route the
oil drain line down towards the fitting previ-
ously installed in the oil pan. Trim the hose
for best fitment and install the supplied 90°
push-lock fitting into the open end of the
supplied oil drain hose. Attach the 90° fit-
ting and drain hose to the fitting previously
installed into the oil pan. Secure the hose
away from any sharp edges, sources of heat
or moving parts using the supplied wire ties.
(See Fig 6-g.)
P. Install the supercharger/accessory drive belt
using the belt routing diagram provided.
Q. Install the supplied 1/8" NPT x –4 fitting
into the supercharger oil jet, attach the open
end of the supplied braided oil feed line to
the –4 fitting previously installed. (See Fig.
6-h.)
Fig. 6-g
Fig. 6-h
R. Reinstall the factory heater hose onto the
factory fitting on the side of the front cover
using the factory hose clamp. This hose was
removed in an earlier step of the installation.
90° -4 OIL SUPPLY HOSE
AND 1/8 NPT FITTING
A/C
COMPRESSOR
PULLEY
MAIN BELT
FACTORY IDLER PULLEY
ALTERNATOR
PULLEY
SUPERCHARGER
IDLER PULLEY
FACTORY IDLER
TENSIONER
FACTORY IDLER
PULLEY
CRANK
SHAFT
PULLEY
WATER
PUMP
PULLEY POWER
STEERING
PULLEY
S/C
PULLEY
