8

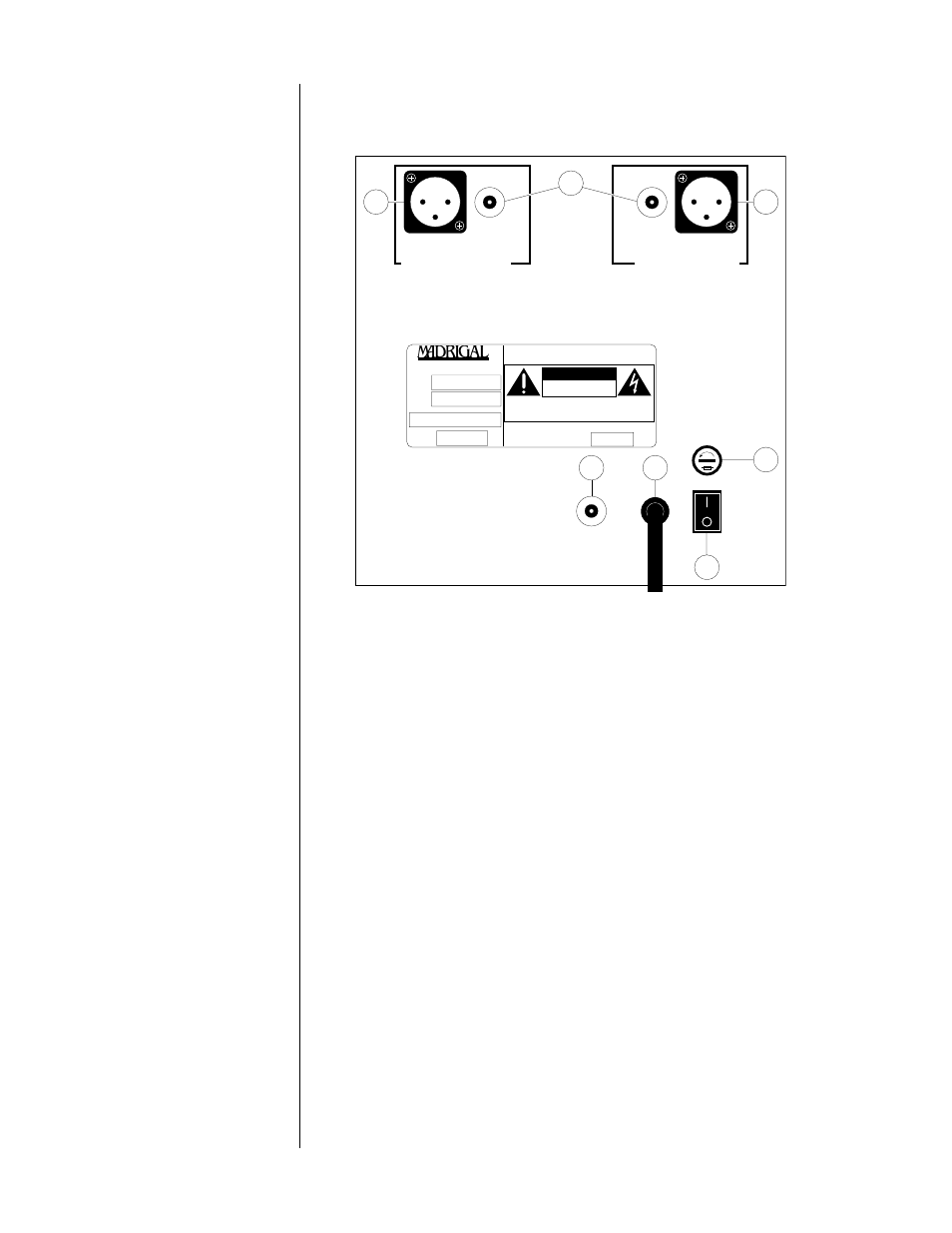

Rear panel, PCD 3

2

master

power

digital

output

balanced

unbalanced

3

3

5

6

1

MADRIGAL AUDIO LABORATORIES, INC.

PROCEED®

COMPACT DISC PLAYER

MODEL NO:

SERIAL NO:

MANUFACTURED:

50-60 HZ

25 WATTS

VOLTS

A, 250V

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC

SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR
MOISTURE.

CAUTION:

TO REDUCE THE RISK OF ELECTRICAL

SHOCK, DO NOT REMOVE COVER. NO USER-
SERVICEABLE PARTS INSIDE. REFER SERVICING TO
QUALIFIED PERSONNEL.

CAUTION:

FOR CONTINUED

PROTECTION AGAINST RISK OF
FIRE, REPLACE ONLY WITH THE
SAME TYPE OF FUSE:

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION

right-channel output

balanced

unbalanced

left-channel output

4

PROCEED® PCD 3
made in u.s.a.

1

master power
This switch turns the PCD 3 on and off. The switch must be in the "|"
(on) position for the PCD 3 to operate. (See "Set-up and
installation.")

NEVER operate the master power switch without first making sure
that power is turned off to your receiver, integrated amplifier, or
preamplifier/power amplifier.

2

unbalanced outputs
These outputs provide single-ended analog audio (via cables
equipped with RCA-type connectors) to a receiver, integrated
amplifier, or preamplifier equipped with single-ended inputs. Most
components accept this type of output. (See "Set-up and
installation.")

3

balanced outputs
These outputs provide balanced analog audio (via cables
equipped with XLR-type connectors) to a preamplifier, integrated
amplifier, or receiver equipped with balanced inputs. (See "Set-up
and installation.")

4

RCA (SPDIF) digital output
This output provides digital audio (via a cable equipped with RCA-
type connectors) to the digital input of a receiver, integrated
amplifier, preamplifier, or digital processor. (See "Set-up and
installation.")

PRECAUTION
