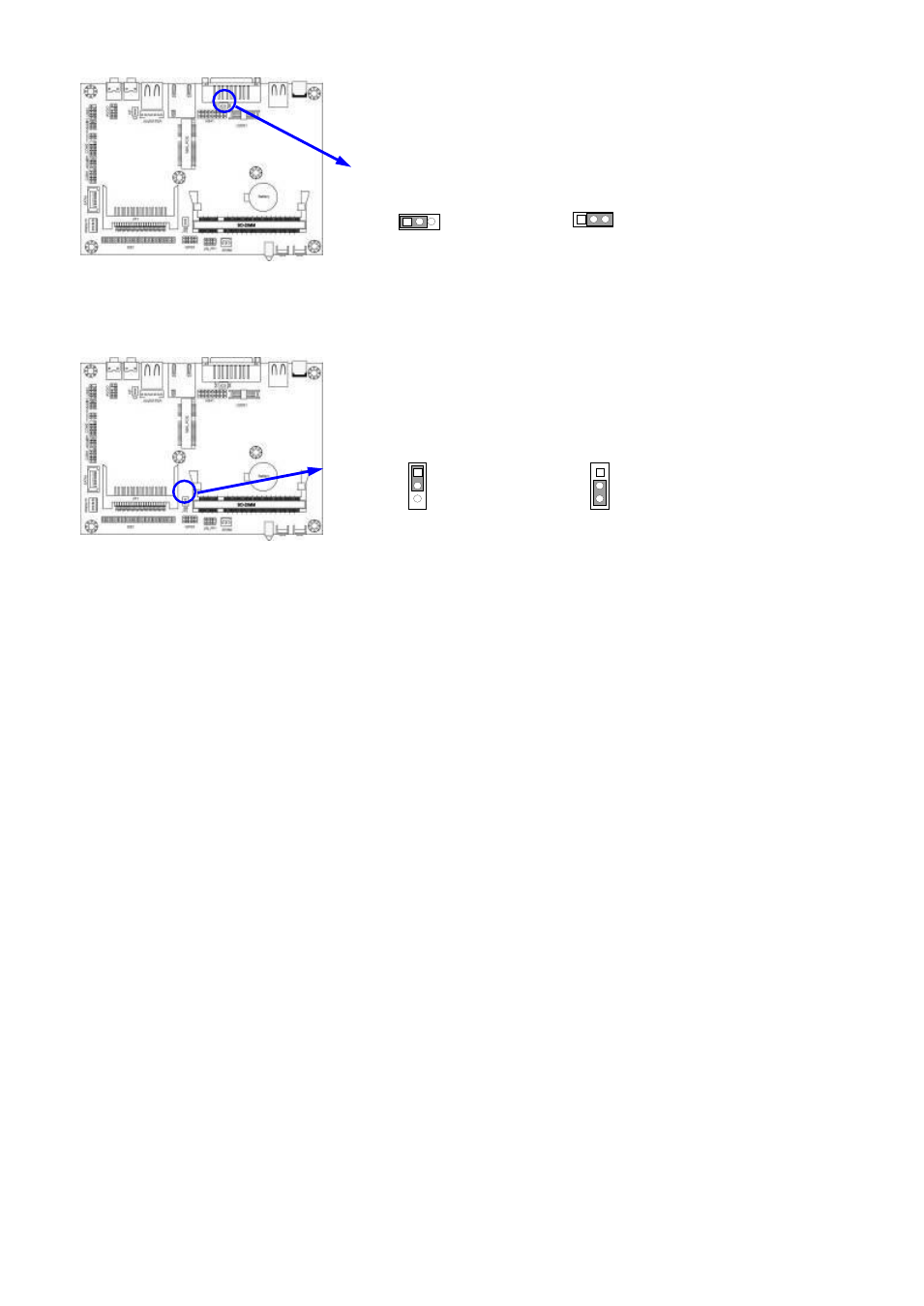

(4) JP2: LVDS 5V/3.3V Function setting (3-pin)
2-3 closed : LVDS VCC 3.3V
JP2 JP2
1 3
1-2 closed: LVDS VCC 5V
1 3
(5) JP3: CF card Master /Slave Mode setting (3-pin)
2-3 closed :CF Card Master
JP3
1
3
JP3
1
3
1-2 closed: CF Card Slave
