4-2
BE1-50/51B-230/-234/-239 Installation
9252000894 Rev H
Mounting (BE1-50/51B-239 Only)
Relay outline dimensions and panel drilling diagrams are shown in Figures 4-1 through 4-4. Dimensions
in parentheses are in millimeters.

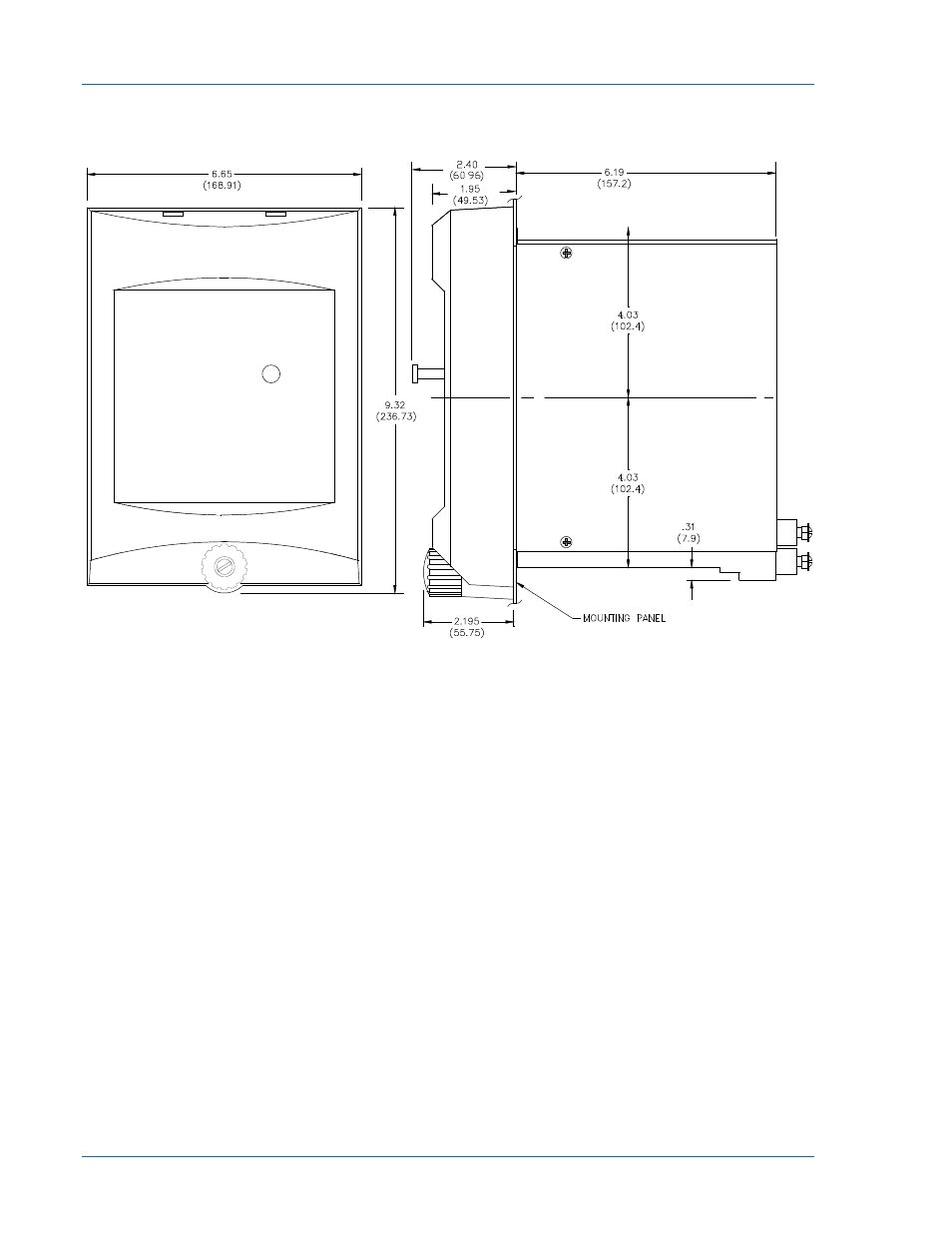

Figure 4-1. Outline Dimensions for S1 Case, Semi-Flush Mounting
D2750-29
